16/05/2024

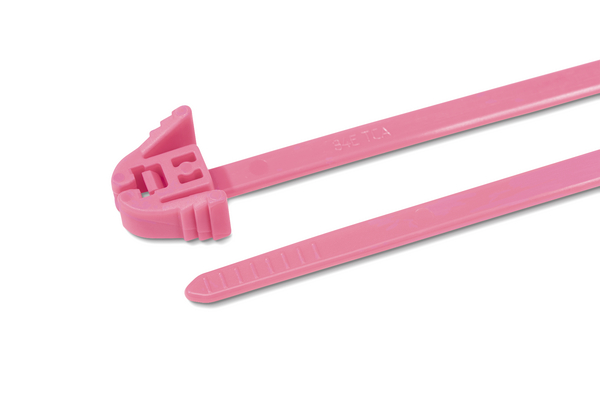

Releasable cable tie, 200x4.7mm, Ø16.0-50.0mm, 135N, pink, 100pcs.
Art.-No. 115-00147 | REZ200-PA66-PK |  Details

    • REZ-Series can be released and reused
    • Unique head design for simple and rapid use
    • Quick-release mechanism for one-hand operation

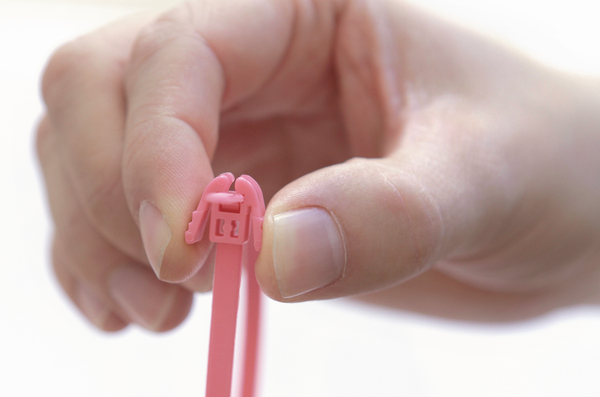

    • Cable tie can be opened even when under tension
    • Can still be released when working with gloves
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Perfect for use in the packaging industry as a bag closure where access to part of the bag content may be needed but the bag needs to be re-sealed later. Something that often occurs for instance in the catering or service industry. In addition the cable tie can be opened easily with only two fingers by simply pushing the wings of the unique head.
    Colour Fluorescent Pink (FLPK)
    Fixation Method Releasable Cable Tie
    Identification Plate Position none
    Key product features releasable
    Local order number REZ200.N93P
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION REZ200-PA66-PK
    Pack Cont. 100pcs.
    Package Content packed in Bag
    Product Family REZ-Series
    Product Group Cable ties inside serrated with one-hand release mechanism
    Releasable Closure (Yes/No) Yes
    Short Description Cable tie 200x4.7 mm, PA66, fluorescent pink
    Tie Closure plastic pawl
    Type REZ200
    Variant Inside Serrated
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ min. 16.0mm
    Length (L) 200mm
    Min.Tensile Strength 135N
    Weight/Unit 0.00176kg
    Width (W) 4.7mm
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Country of Origin GB
    Customs Number 39269097
    GTIN-13 / EAN 4031026581873
    Packaging 1 - Height (m) 0.048m
    Packaging 1 - Length (m) 0.282m
    Packaging 1 - Qty 100
    Packaging 1 - Weight (kg) 0.176001kg
    Packaging 1 - Width (m) 0.136m
    Packaging 3 - Qty 6000
    Packaging 3 - Weight (kg) 11.36206kg
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Qty 120000
    Packaging 4 - Weight (kg) 248.24kg
    UNSPSC Key 39121703
