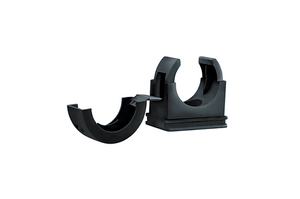

Clip for Corrugated Conduits black ø18mm
Art.-No. 166-25708 | PACC18-PA66-BK |  Details

HelaGuard PACC Conduit Clip.

    • Easy and quick assembly with non-metallic conduits
    • Lid is integrated
    • Hole for fastening with screw
    • Inner rib prevents conduit from slipping
    • Can be used in C-shaped DIN rails
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Colour Black (BK)
    Fixation Method screw-hole
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION PACC18-PA66-BK
    Pack Cont. 10pcs.
    Package Content packed in Bag
    Product Family PACC Clip for Corrugated Conduits
    Product Group HelaGuard Accessories
    Short Description Clip for Corrugated Conduits black ø18mm
    Type PACC18
    Length (L) 32mm
    Nominal ∅ 18mm
    Nominal ∅ (imperial) 3.94"
    Weight/Unit 0.0065kg
    for Hole ∅ (FH) M6
    CE Certification Yes
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 V2
    Halogen-free Yes
    Hazardous Goods No
    Min. Extraction Force (N) 600N
    Minimum Pull trough Strength (N) 100N
    Operating Temperature -50 °C to +135 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 39269097
    GTIN-13 / EAN 4031026311555
    Packaging 1 - Height (m) 0.04m
    Packaging 1 - Length (m) 0.19m
    Packaging 1 - Qty 10
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00122m³
    Packaging 1 - Weight (kg) 0.065001kg
    Packaging 1 - Width (m) 0.16m
    ETIM 7.0 Key EC000368
    ETIM 8.0 Key EC000368
    ETIM 9.0 Key EC000368
