Printed ties for identification systems

The Security product range from HellermannTyton provides a high quality range of printed ties and plastic seals.

We use the latest print and moulding technologies to ensure you the best possible custom print on our standard range of security cable ties and seals.

We can also fulfil your specilised requirements for security products.  Our designers and engineers understand your security scenarios and can help you develop the ideal bespoke products.

Challenge us to identify your applications securely.

Laser Beam Printing

Extreme print resistance:

  • Pre-marked to customer requirements
  • Very good character legibility
  • 'Burnt-in' text resists very high weathering and UV light
  • Excellent resistance to a variety of hydrocarbons, chemicals, acids and alkalis

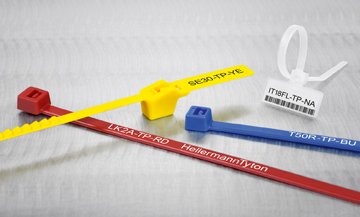

Thermal Transfer Printing


​High definition graphics:

  • Pre-marked to customer requirements​
  • Excellent character legibility
  • Ability to print barcode and complex graphics
  • Text in black or white


Custom Printed Plastic Cable ties - T Series & LK Series Cable Ties.

HellermannTyton provides a simple cost effective solution whether to identify pipes for example with GAS or WATER or cables, with LIVE or NEUTRAL.  The most popular printed ties are sequentially numbered and used to provide traceability and an audit trail for sealing bags that may contain anything from waste paper, that is waiting to be shredded, to bags containing clinical waste in hospitals.  These ties can also be custom printed to include a company name, location or specific department.

The products are provided to clients in the following areas:


  • Utility companies
  • Healthcare food processing
  • Agriculture
  • Hire shops
  • Servicing
  • Calibration​


Features & Benefits:


  • Ideal for use in an audit trail, calibration dates and indicator of rejected
  • Easy to apply, simple insertion and tightening of the printed tie
  • Products are printed using either a laser beam or thermal transfer offset print system
  • Laser beam printing is ideal for print durability
  • Thermal transfer offset printing is ideal for high definition graphics
  • Excellent character legibility
  • Print jobs and graphics can be transmitted electronically


For material specification and product offering, please download our Security Product catalogue here....


Custom Printed Stainless Steel Cable Ties - Metal Ball Lock Ties (MBT)

HellermannTyton offers all the benefits of stainless steel ties (weather resistant, outstanding chemical resistance, antimagnetic, high temperature resistant, non-burning) with the possibility of a permanent legend using the latest laser technology.  The laser process produces a high quality marking with dark characters and excellent contrast to the background.

The metal ties can be marked to customer requirements including upper and lower case characters, alpha-numeric, sequential, data-matrix and bar-coding, logos and graphics.

Features & Benefits:


  • Pre-marked to customer requirements
  • Excellent character legibility
  • Resistant to weathering and high levels of UV light
  • Excellent resistance to a variety of hydrocarbons, chemicals, acids and alkalis
  • Marking will endure for the lifetime of the cable tie or market place
  • Pring jobs and graphics can be transmitted electronically


For material specification and product offering, please download our Security Product catalogue here.....

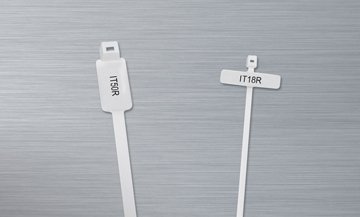

Identification Ties and Plates for Marking Cable Bundles - IT Ties

One of the major benefits is the ability to both secure and identify cable bundles at different times.


Features & Benefits:


  • Large 'flag area' at the head of the tie for printing needs
  • Print directly onto the flag (WxH) using state of the art thermal transfer direct print technology
  • For simple identification and securing of cable bundles in one step
  • Print jobs and graphics can be transmitted electronically



For material specification and product offering, please download our Security Product catalogue here ....

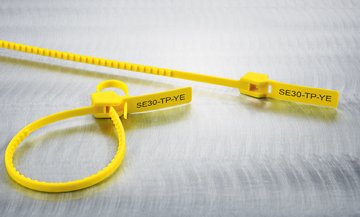

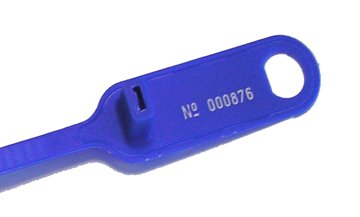

Custom Printed Pull Tight Plastic Seals - SE30PRN & SD30PRN

HellermannTyton provides a range of Pull Tight Seals that allow an audit trail to be created and easily alert the user if a package or shipment has been tampered with.

The wide range of applications varies from sealing cash and mailbags to securing vehicle doors and roll cages.  The products are provided un-printed however it is recommended that all of these should be sequentially numbered to achieve the maximum level of security.

The range features include gripping spikes (SD30) to assist in sealing large bags and a secondary loop catchment to hold the tie's tail in place.

Features & Benefits:


  • SD30 features a gripping spike to stop spilage on cloth or textile bags
  • SE30 is commonly used for sealing doors and closures
  • Thermal transfer offset printed for highest clarify print definition
  • Available as sequential alphanumeric text but graphics and barcodes are available on request
  • Print jobs and graphics can be transmitted electronically

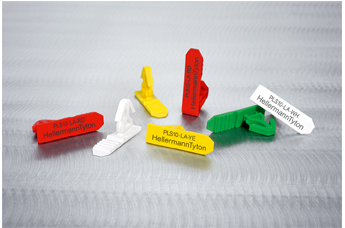

Plastic Plug Seals - Custom Printed PLS10SEQ and Plain SEQ

The PLS range incorporates tabs that when lifted and twisted, enable the top and bottom sections to break away at specifically designed points. This allows the seals to be removed without the need for any cutting tools.

HellermannTyton's Pluglok seals are made to fit the majority of boxes from the main attached lid container manufacturers (Schoeller, Arca Systems, Allibert Buckhorn, Paxton and Linpac) and can be printed with a unique serial number.  This allows a secure audit trail to be created and easily alerts users of the system that a package or shipment has been tampered with.

Features & Benefits:


  • Highest definition print technology
  • 30+ years experience in the market
  • Creation of class-leading texts, graphics and barcodes
  • Ideally for areas from logistics to polling (voting) booths
  • Able to work with emailed excel documents and high quality graphic files

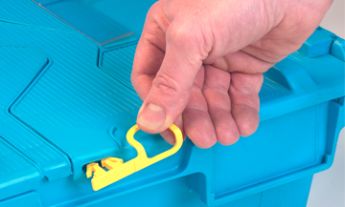

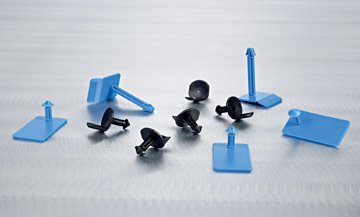

Plastic Plug Seals - Lidded Box Closure Seal - Lidded Box Closure Seal

A simple to insert and securely located plastic plug seal is required when locking the lid into the box body of a container.  This ensures that the lid remains in place during transit and acts as a tamper-evident method of ensuring the contents of the box have not been tampered with or removed.

The design of the seal will allow for the lid to move slightly laterally, as is normal when boxes are being stacked or are in transit, and strong enough for small vertical drops (up to 0.5mm) without breaking.  The seal is designed to break if the lid is lifted.

30 years experience in the design and manufacture of plus seals mean that we are uniquely placed to offer products to solve your needs when new lidded box designs are being considered.

Features & Benefits:


  • Tamper evident plastic box seals
  • Designed to ensure ease of application and removal
  • Securely lock lidded containers in transit
  • New product designs available through dedicated engineering resources
  • CCBOX2 are designed for SSI Schaefer FK, LTB and KB Series
  • CCBOX3 are designed for SSI Schaefer KMB Series
  • BP are designed for SSI Schaefer FK Series


For material specification and product offering, please download our Security Product catalogue here....

Laser Beam Print Method:

Laser marking uses a high power light source magnified and focused through an optical lens to discolour the surface of the item that needs identifying without cutting into the surface.

As the material is discoloured through this process, the mark permanency is second to none as trying to remove the text requires the material to be cut away.

A secondary feature of this pring method is security to add new text you have to print onto a surface that has been cut away and this will immediately highlight tampering.



For further information on our Laser Beam Print method please download our catalogue here....

Thermal Transfer Print Method:

Thermal Transfer printing is created by heating up and liquefying the captive ink of the transfer ribbon and layering onto the surface to be identified.

The print definitiion is outstanding and is usually the preferred method for creating crisp graphics.



For further information on the Thermal Transfer Print method please download our catalogue here....
