2U Angled Rear Cable Manager
Art.-No. 854-05155 | APARCM2U Details

  • Provides cable strain relief
  • Available in 1U or 2U versions
  • Maximum of 72 cables using 2U version

Request your individual offer now

Colour Black (BK)

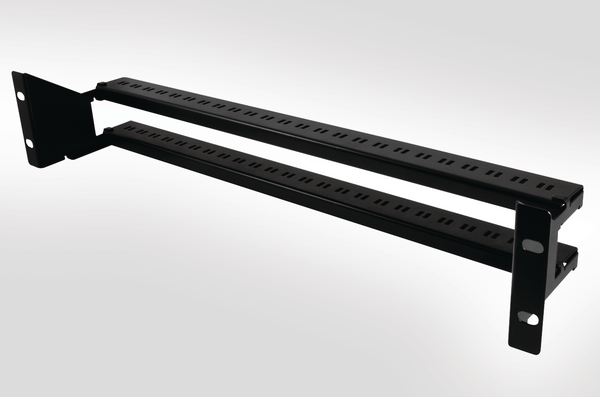

Description The HellermannTyton Angled Rear Cable Managers fit easily on to the HellermannTyton range of angled panels. The Angled Rear Cable Manager comes in 1U and 2U versions and is manufactured from 1.6mm matt black powder coated mild steel. The 1U version is suitable for use with any HellermannTyton angled 1U 24 port, 1U port or 2U 48 port panel providing strain relief for a maximum of 48 cables. The 2U version can be used with any HellermannTyton 2U angled panel providing strain relief for a maximum of 72 cables.
Package Content packed in Box
PART DESCRIPTION APARCM2U
Product Family Cabinet Cable Management
Product Group 2U Angled Rear Cable Manager
Short Description 2U Angled Rear Cable Manager

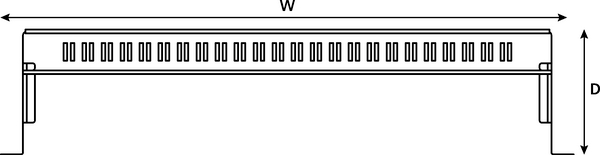

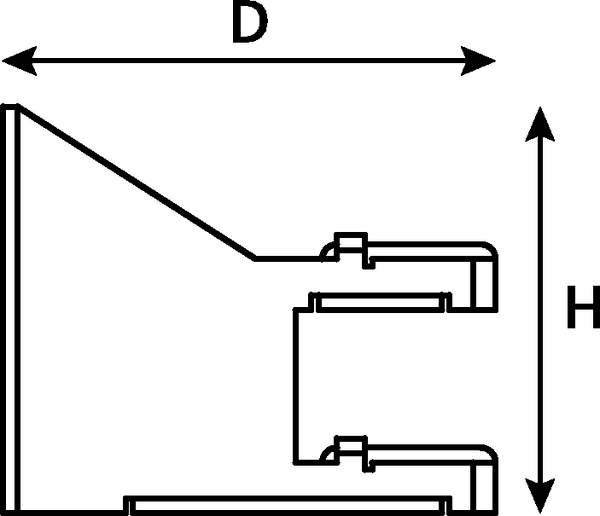

Depth (D) 107mm

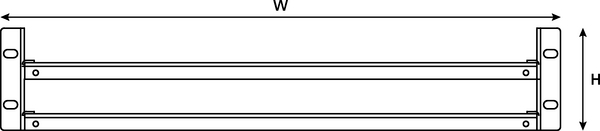

Height (H) 88mm
Width (W) 483mm
Country of Origin GB
Dimensions W x H x D 483 mm x 88 mm x 107 mm
GTIN-13 / EAN 5022660123115
ETIM 7.0 Key EC002624
ETIM 8.0 Key EC002624
ETIM 9.0 Key EC002624
