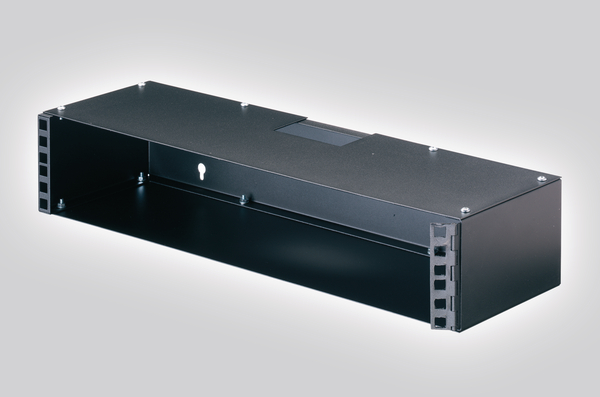

2U Hinged Wall Bracket
Art.-No. 854-25015 | WB2U/BK Details

This product is not available anymore.
  • Wall mountable
  • Hinged bracket
  • Cable entry at either top or bottom
  • Accommodates up to 2 1U patch panels

Request your individual offer now

Colour Black (BK)
Description The 2U Hinged Wall Bracket can accommodate up to 2U of patch panels or active equipment and is the ideal solution for installations where there is only a minimum requirement for patching.
Local order number WB-2U
Pack Cont. 1pc.
PART DESCRIPTION WB2U/BK
Product Family 2U Hinged Wall Bracket
Product Group Cable Management Accessories
Technical Description The wall bracket is wall mountable with hinged mounting on one side to allow easy access to the rear of any patching or active equipment. The wall bracket is made from 2mm mild steel with a black powder coated finish.
Depth (D) 154mm
Height (H) 94mm
Width (W) 484mm
Country of Origin GB
Dimensions W x H x D 484 mm x 94 mm x 154 mm
GTIN-13 / EAN 5022660854552
ETIM 7.0 Key EC000022
ETIM 8.0 Key EC000022
ETIM 9.0 Key EC000022
