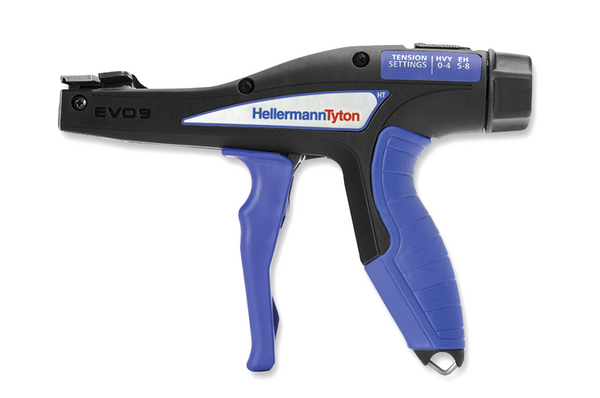

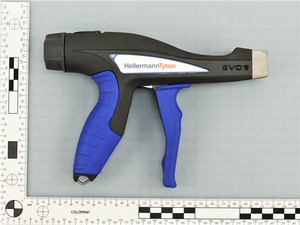

Manual tensioning tool plastic housing EVO9HT

EVO9 up to 13.5 mm strap width, Article number: 110-80017

Features

  • EVO9 HighTension version with higher tension force than EVO9
  • Ergonomic, slip-proof handle for a comfortable and secure grip
  • Extremely low-maintenance
  • Fast and precise application with minimum effort (TLC-technology)
  • Convenient and simple tension adjustment
  • Integrated 3 position quick adjustment override
  • Housing made of resilient and lightweight glass fibre-reinforced polyester

Certifications & Approvals

Application

The EVO9HT is the high tension version of the EVO9 family. Developed for maximum tensile strength this tool performs between 120N and 516N. The tool was designed to apply HellermannTyton T120 and T250 cable ties with a maximum width of 13.5 mm (T250).

EVO9 up to 13.5 mm strap width is suitable for following markets and industries

Colour Blue (BU), Black (BK)
Description EVO9HT
Description Short (BMEcat) (max. 150 characters) Manual Tensioning Tool for Cable Ties up to 13.5 mm strap width
GLOBAL PART NAME (auto set) EVO9HT-MET/PL-BK/BU
Operation manually
Pack Cont. 1
Product Family EVO9 up to 13.5 mm strap width
Product Group Manual tensioning tool plastic housing
Short Description High tension tool; For HellermannTyton cable ties, up to 13.5 mm width
Strap Thickness max. 2.0mm
Technical Description Tension Range 120 N to 516 N
Tension Setting Tools Adjustable
Tool property Manual clipping
Tool suitable cable tie material Plastic
Height (H) 135mm
Length (L) 191mm
Strap Width max. 13.5mm
Strap Width max. (G) (imperial) 0.5"
Width (W) 33mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous goods No
Material Metal (MET), Plastic (PL)
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
EAN / GTIN 4031026511443
Packaging 1 - Height (m) 0.053m
Packaging 1 - Length (m) 0.235m
Packaging 1 - Qty 1
Packaging 1 - Type Carton
Packaging 1 - Volume (m³) 0.00228
Packaging 1 - Weight (kg) 0.719kg
Packaging 1 - Width (m) 0.183m
Packaging 3 - Height (m) 0.27m
Packaging 3 - Length (m) 0.6m
Packaging 3 - Qty 13
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0648
Packaging 3 - Weight (kg) 12.647kg
Packaging 3 - Width (m) 0.4m
Weight 0.8lbs
Weight 0.36kg
ETIM 5.0 EC000453
ETIM 6.0 EC000453
UNSPSC Key 27112410
