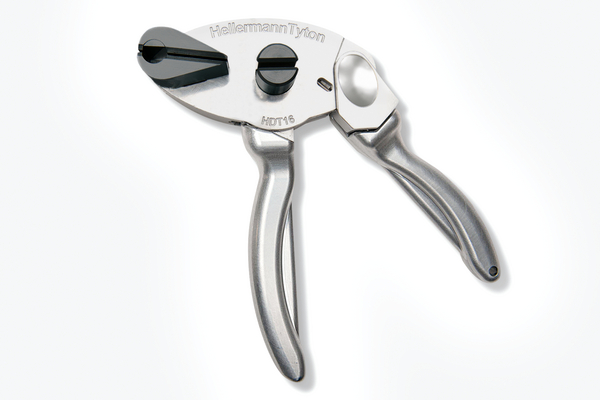

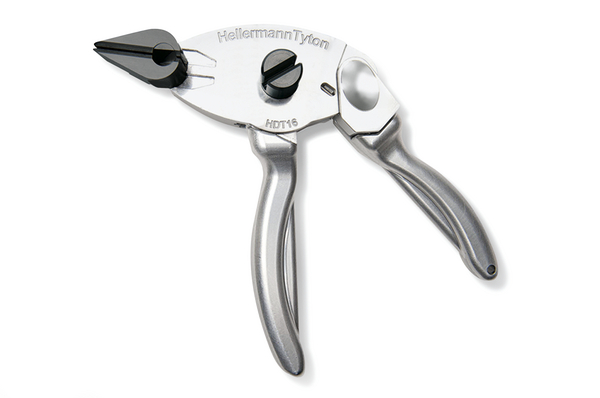

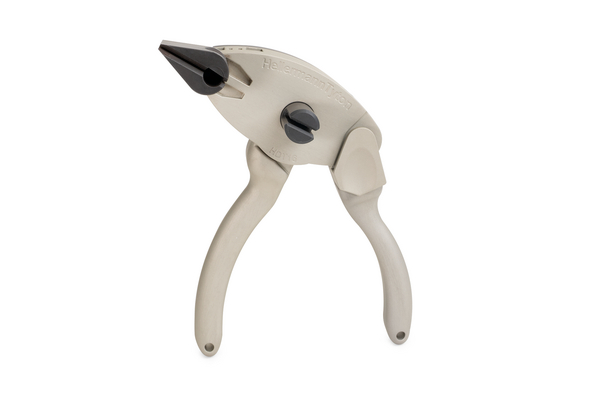

Manual tensioning tool for metal ties MBT-, MLT- and AMT-Series HDT16

HDT16 up to 16.0 mm strap width, Article number: 110-40000

Features

  • Two way nose piece for use with MBT-Series and AMT-, MLT-Series stainless steel cable ties
  • Easy adjustment of the handles to ensure the most ergonomic position for the operator
  • Integrated cutting mechanism delivering a flush cut and professional finish every time
  • The ideal tool for achieving a perfect installation of MBT, MLT and AMT cable ties

Certifications & Approvals

Application

The HDT16 application tool is designed for installing heavy duty stainless steel cable ties within a range of industries such as shipbuilding, oil rigs, mining and mass transit. The tool can easily be adjusted making it suitable for applying both MBT, MLT and AMT cable ties with a strap width of up to 16 mm.

HDT16 up to 16.0 mm strap width is suitable for following markets and industries

Colour Metal (ML)
Description Short (BMEcat) (max. 150 characters) Manual Tensioning Tool for Metal Ties up to 16.0 mm strap width
GLOBAL PART DESCRIPTION HDT16-SS-ML
Operation manually
Pack Cont. 1pc.
Package Quantity per Pack
Product Family HDT16 up to 16.0 mm strap width
Product Group Manual tensioning tool for metal ties MBT-, MLT- and AMT-Series
Strap Thickness max. 0.75mm
Tool property Manual clipping
Tool suitable cable tie material Stainless steel
Strap Width max. 16.0mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous good No
Material Stainless Steel (SS)
Specifications
EAN / GTIN 4031026436746
Packaging 1 - Height (m) 0.075m
Packaging 1 - Length (m) 0.245m
Packaging 1 - Qty 1
Packaging 1 - Type Carton
Packaging 1 - Volume (m³) 0.00303
Packaging 1 - Weight (kg) 1.08kg
Packaging 1 - Width (m) 0.165m
Weight 0.78kg
ETIM 5.0 EC000453
ETIM 6.0 EC000453
