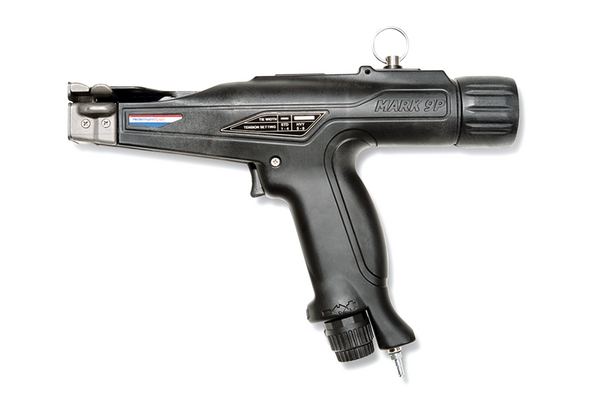

Pneumatic tensioning tool for metal ties MBT-Series MK9PSST

MK9PSST up to 16.0 mm strap width, Article number: 110-95350

Features

  • Unique levels of repeatability and accuracy
  • High application speed and low maintenance
  • Improved compressed air supply for faster tensioning piston movement
  • Shorter processing time and greater volume of connecting tie application
  • Ergonomic design
  • Automatic ejection of cut-off cable tie end
  • Ideally designed to apply stainless steel MBT-Series up to 16.0 mm width
  • Airpressure between 3 and 6 bar

Certifications & Approvals

Application

The MK9PSST pneumatic stainless steel tool is constructed with heavy-duty parts to ensure optimum performance in demanding environments. It is ideally designed to apply stainless steel metal ball tie series (MBT) up to 16.0 mm width.

MK9PSST up to 16.0 mm strap width is suitable for following markets and industries

Air att. Position Lower air connection
Air Pressure (min.) 3Bar
Air Pressure PSI 90Psi
Colour Black (BK)
Description MK9PSST
Description Short (BMEcat) (max. 150 characters) Pneumatic Tensioning Tool for metal ties up to 16.0 mm strap width
for Air Pressure min - max 3 - 6 Bar
GLOBAL PART NAME (auto set) MK9PSST-BK
Operation pneumatic
Pack Cont. 1pc.
Product Family MK9PSST up to 16.0 mm strap width
Product Group Pneumatic tensioning tool for metal ties MBT-Series
Strap Thickness max. 0.48mm
Tension Setting Tools Adjustable
Tool property Automatic cut off
Tool suitable cable tie material Stainless steel
Type MK9PSST
Air Pressure (max.) 6Bar
Air Supply Non oiled / oiled
Height (H) 200mm
Hose Internal Diameter 4.0mm
L x H x W approx. 280 x 200 x 55mm
Length (L) 280mm
Strap Width max. 16.0mm
Width (W) 55mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous goods No
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
Dimensions W x H x D 55 mm x 200 mm x
EAN / GTIN 4031026332437
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.225m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0018
Packaging 1 - Weight (kg) 1.332kg
Packaging 1 - Width (m) 0.16m
Packaging 3 - Height (m) 0.6m
Packaging 3 - Length (m) 3.6m
Packaging 3 - Qty 1
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 6.48
Packaging 3 - Weight (kg) 1.832kg
Packaging 3 - Width (m) 3.0m
Weight 0.91kg
ETIM 5.0 EC000453
ETIM 6.0 EC000453
UNSPSC Key 39121703
