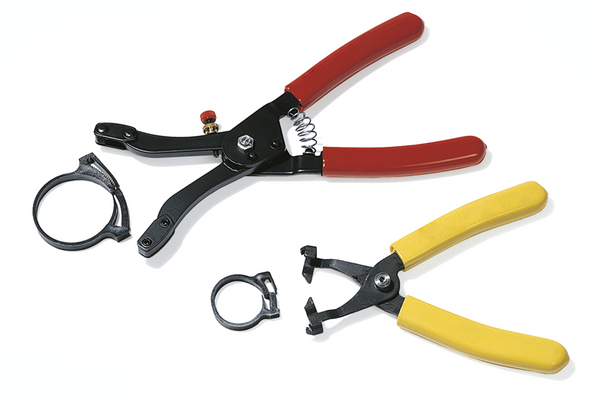

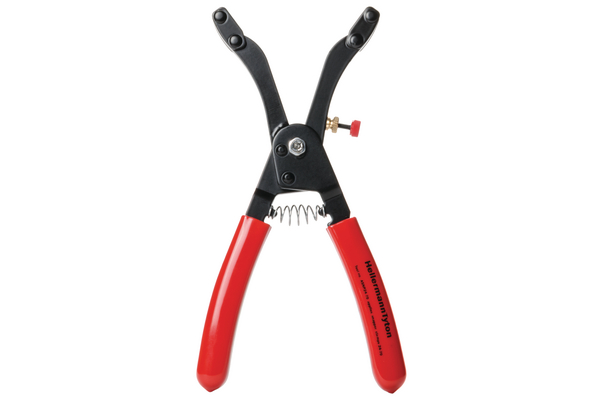

Snapper Tools ASNP24-70

ASNP24-70 for Snapper Size 24 to 70, Article number: 191-24700

Features

  • For efficient fixing of the snapper hose clips
  • MSNP tool: handy for installation on site
  • ASNP tool: suitable for series production
  • Retaining screw limits the draw-in area prevents overstretching of the snapper

Certifications & Approvals

Application

SNP-Series 24 up to 70

ASNP24-70 for Snapper Size 24 to 70 is suitable for following markets and industries

Colour Red (RD)
Description Short (BMEcat) (max. 150 characters) Snapper Tool for Snapper Size 24 to 70
GLOBAL PART NAME (auto set) ASNP24-70-MET/PL-RD
Operation manually
Pack Cont. 1pc.
Package Quantity per Box
Product Family ASNP24-70 for Snapper Size 24 to 70
Product Group Snapper Tools
Tension Setting Tools Manual
Tool property Manual clipping
Tool suitable cable tie material Plastic
ELV compliant Dir. Art. 4 (2) YES
Hazardous goods No
Material Metal (MET), Plastic (PL)
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
EAN / GTIN 4031026128450
Packaging 1 - Height (m) 0.025m
Packaging 1 - Length (m) 0.216m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00068
Packaging 1 - Weight (kg) 0.25kg
Packaging 1 - Width (m) 0.126m
Weight 0.25kg
ETIM 5.0 EC000453
ETIM 6.0 EC000453
UNSPSC Key 39121702
