Accessory, Autotool, silver, 1pc. (Force measurement device with robot adapter CPK)
Art.-No. 106-29011 | Force measurement device with robot adapter CPK-AL/ST-SR Details

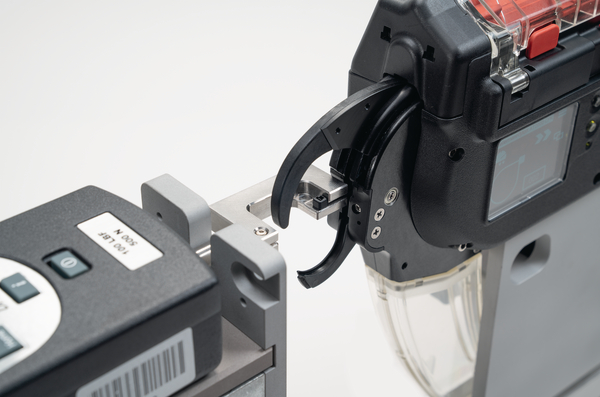

  • Force measurement device CPK is used to measure the tensile force acting on the cable tie
  • AT2000 CPK is attached with a robot adapter to the base frame
  • Easy integration of the manual force measurement device and the AT2000 CPK (manual force measurement device is not included in the scope of delivery)
  • Available with grip mount or robot adapter
  • The measured tensile force is transmitted to the manual force measuring device
  • The measured tensile force can be entered in the Software HT Data Management manually. The resulting documentation ensures reproducibility
Show more

Request your individual offer now

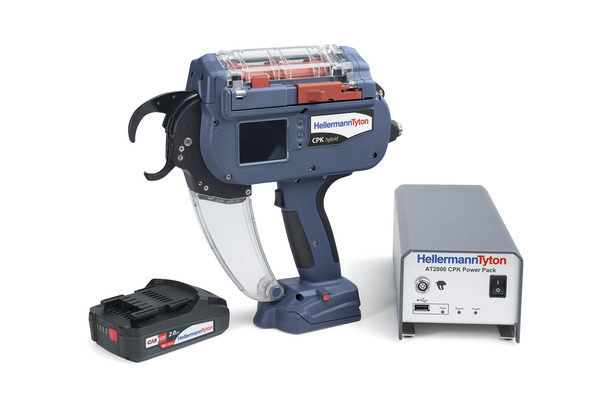

Application The Autotool CPK hybrid T18RA is an automated cable tying system that is either operated electrically with a Power pack or with a battery. It has been developed to speed up bundling processes and to make the production more consistent and efficient. Besides the high speed bundling, this cable tying system is characterized by its simple operation and user-friendly ergonomics. The CPK hybrid offers a display for the settings and presets and user information in 20 languages. One main feature of the CPK hybrid is the software "HT Data Management CPK". This feature enables the easy parameterization of the tool for customers applications. The parameterization can easily be carried out via computer. Additionally the "HT Data Management CPK" offers an export function for the saved manufacturing data as well as further service functions. Therefore it ensures a consistent documentation for every binding process through the tool. The firmware of the CPK hybrid tool enables various bundling and cutting functions. It is possible to define a loop diameter and to choose the length of an extended strap as an example. The function to cut with the tension released is of great value especially for applications with a very flexible bundling good (like silicone cables). The CPK hybrid is ideally suited for handling high volume applications in wire harness facilities, automotive and industrial companies, in the packaging sector and in the solar industry. With either the Bench mount kit CPK or the Overhead suspension CPK, the CPK hybrid is suitable for both stationary and flexible applications. By using the optional Power pack CPK with control box the CPK hybrid can be integrated into fully automated production lines through a serial interface. Due to the removable handle less assembly space is needed. When using the battery at the bottom of the handle the tool can be used without the need for a power supply. Bandoliers of 50 cable ties as well as reels of 3,500 cable ties can be used.
Application Method Stationary, mobile or integrated into a fully automated production line.
Bench mount kit Bench mount kit CPK with foot pedal operation
Colour Silver (SR)
Description Force measurement device with robot adapter CPK
For Ties T18RA50, T18RA3500
Harness board accessory HH20 Bundle Ø max. 20 mm, standoffs are used as spacer for an optimal bundling, bundle height 45-25 mm
Material Aluminium (AL), Steel (ST)
Overhead Suspender Overhead suspension CPK unit with spring balancer
Pack Cont. 1pc.
Package Content packed in Carton
PART DESCRIPTION Force measurement device with robot adapter CPK-AL/ST-SR
Power Supply unit Power pack CPK Input: 230/115 VAC Output: 25,2 VDC 50 W
Product Family Force measurement device with robot adapter for Autotool 2000 CPK
Product Group Automatic bundling up to Ø 20 mm
Short Description Force measurement device with robot adapter CPK
Tool suitable cable tie material Plastic

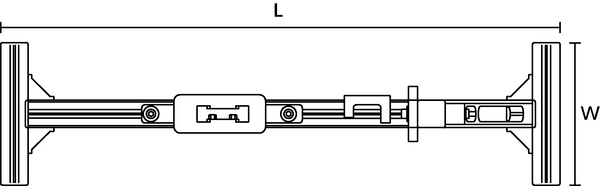

Height (H) 320mm
Length (L) 610mm
Tension Setting Adjustable
Weight/Unit 3.102kg
Width (W) 155mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Specifications
Country of Origin DE
Customs Number 76169990
GTIN-13 / EAN 4031026569932
Minimum Order Quantity 1
Packaging 3 - Height (m) 0.38m
Packaging 3 - Length (m) 0.69m
Packaging 3 - Qty 1
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0564
Packaging 3 - Weight (kg) 3.602kg
Packaging 3 - Width (m) 0.215m
Packaging 4 - Height (m) 0.964m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 10
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.925
Packaging 4 - Weight (kg) 88.9kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000453
ETIM 8.0 Key EC000453
ETIM 9.0 Key EC000453
UNSPSC Key 27112410
