Cable tie for autotools, on reel, 100x2.5mm, Dmin=0.7mm, Dmax=20.0mm, black, 3500pcs.
Art.-No. 120-50010 | T18RA3500-PA66HSW-BK Details

  • Heat stabilised cable ties (PA66HS) in all colours for temperatures up to +105 °C

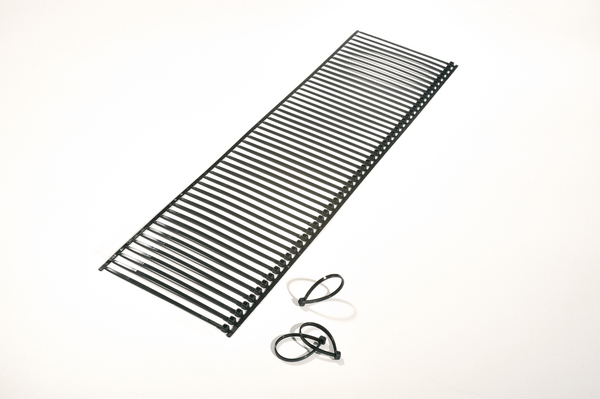

  • Available in bandoleers of 50 cable ties or reels of 3,500 cable ties
  • Repetitive tension on the bundles
  • Easily recyclable

Request your individual offer now

Application The inside-serrated cable ties are designed for use specifically in the automatic cable tying systems. The Autotool CPK hybrid is ideally suited for handling high volumes applications in wire harness facilities, automotive and industrial companies as wells as the packaging sector.
Application Method The cable ties have to be applied with the electrically operated automatic cable-tying system Autotool CPK hybrid from HellermannTyton. The cycle time is 0.65-1.0 sec.
Application Tool Autotool CPK hybrid
Bench mount kit Bench mounting kit CPK with foot pedal operation
Colour Black (BK)
Content Bandoleer with 3500 cable ties
Harness board accessory HH20 Bundle Ø max. 20 mm, standoffs are used as spacer for an optimal bundling, bundle height 45-25 mm
Local order number T18RA3500.NB9A
Material Polyamide 6.6, heat and UV-resistant (PA66HSW)
Overhead Suspender Overhead suspension CPK unit with spring balancer
Pack Cont. 3500pcs.
Package Content packed in pcs.
PART DESCRIPTION T18RA3500-PA66HSW-BK
Power Supply unit Power pack CPK Input: 230/115 VAC Output: 25,2 VDC 50 W
Product Family Cable ties for Autotool CPK hybrid
Product Group Automatic bundling up to Ø 20 mm
Short Description Cable ties on reel for Automatic Cable Tying Systems 100x2.5 mm, PA66HSW, black (3500 pcs.)
Tool suitable cable tie material Plastic
Variant on reel
Bundle Diameter max (Metric) 20.0mm
Bundle ∅ 0.7-20.0mm
Bundle ∅ min. 0.7mm
Length (L) 100mm
Min.Tensile Strength 80N
Weight/Unit 0.000505kg
Width (W) 2.5mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
Specifications
Specifications ANSI/UL 62275
UL OCD link Link
UL Type 11
UL-File Number E65344
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026216096
Minimum Order Quantity 14000
Packaging 1 - Height (m) 0.13m
Packaging 1 - Length (m) 0.39m
Packaging 1 - Qty 3500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01977
Packaging 1 - Weight (kg) 1.826076kg
Packaging 1 - Width (m) 0.39m
Packaging 3 - Height (m) 0.552m
Packaging 3 - Length (m) 0.4m
Packaging 3 - Qty 14000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.089
Packaging 3 - Weight (kg) 8.134304kg
Packaging 3 - Width (m) 0.403m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 168000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 118.632kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 27112410
