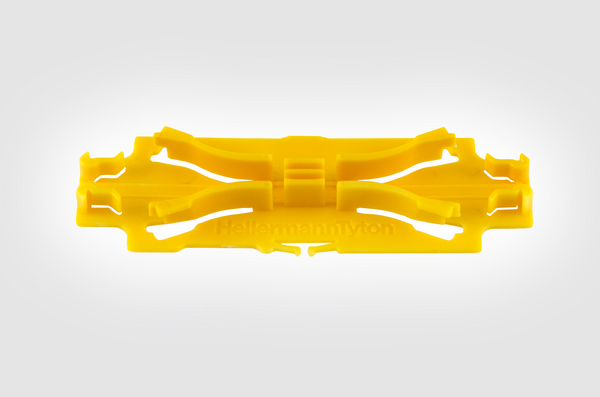

ANT Splitter/Splice Protector Holders
Art.-No. 857-40427 | BRIDGE-SP/ANT Details

  • Used to secure different types of splice protector within the splice tray
  • 9 options available for the most common applications
  • Optical splitter/3A or ANT option

Request your individual offer now

Colour Yellow (YE)
Material Polyamide 6.6 (PA66)
Package Content packed in Bag
PART DESCRIPTION BRIDGE-SP/ANT
Product Family Fibre Splice Tray Accessories
Product Group ANT Splitter/Splice Protector Holders
Short Description ANT Splitter/Splice Protector Holders
Technical Description The Splice Protector Holders (Splice Bridges) are colour coded for easy identification and allow for different types of splice protectors in the tray. Inserts are suitable for use with HellermannTyton Hellipse NZDF-SE-A/SE-B, IR-SE and Hellapon Medium (Style C)/Small and Hellamass Large trays. The optical splitter splice bridges will accept 2 x 60 x 7 x 4mm optical splitters plus 2 3A or ANT splices. All trays accept 2 splice protector holders excluding the Hellamass Large which accepts 12 inserts.

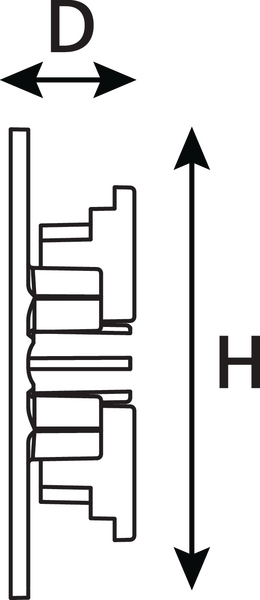

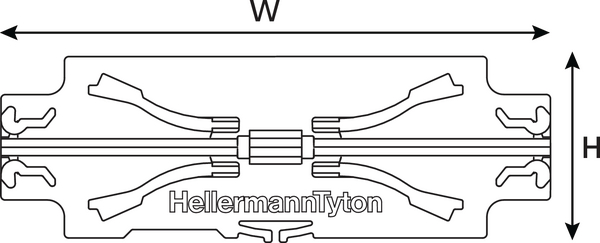

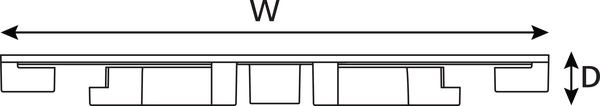

Depth (D) 6mm
Height (H) 22.5mm
Width (W) 65mm
Country of Origin GB
GTIN-13 / EAN 5022660149030
ETIM 8.0 Key EC000759
ETIM 9.0 Key EC000759
