Fibre Splice Tray Accessories
Art.-No. 857-40130 | FSP770 Details

This product is not available anymore.
  • Clear sleeve allows visual location of splice
  • Stainless steel rod or ceramic member to provide additional support to the joint
  • 3A and 6A versions available
  • Suitable for fibre sizes 250/900µm
  • Ribbon fibre splice protector for up to 12 fibre ribbon
  • Low shrink temperature
  • Coloured anti-vibration band available
Show more

Request your individual offer now

Colour Natural (NA)
Content 100 x 12 Way Ribbon Splice Protectors
Description Splice Protectors
Local order number FSP770
Package Content packed in Bag
PART DESCRIPTION FSP770
Product Family Fibre Splice Tray Accessories
Product Group 12 Way Ribbon Splice Protectors

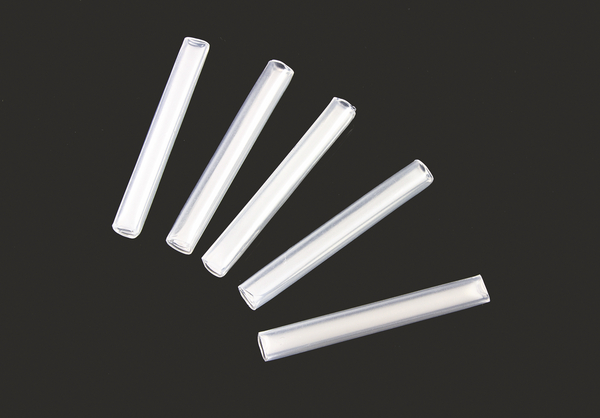

Technical Description HellermannTyton’s range of fibre splice protectors are specifically designed for the mechanical and environmental protection of fused fibre splices. The splice protectors consist of clear heat shrinkable tubing to allow for visual location of the splice prior to heat shrinking with a pre-installed stainless steel (3A/6A) reinforcing rod. The tubing has a wide operating range -45°C to +100°C and a full recovery temperature of 120°C.
Length (L) 40.0mm
Recov. ∅ d 4.75mm
GTIN-13 / EAN 5022660485442
ETIM 7.0 Key EC001123
ETIM 8.0 Key EC001123
ETIM 9.0 Key EC001123
