Mounting Brackets
Art.-No. 857-40332 | INSTALL-BRKT Details

  • Suitable for use with all HellermannTyton closures
  • Simple and quick to use
  • Vertical or horizontal orientation possible
  • Manufactured from zinc passivated mild steel

Request your individual offer now

Colour Blue (BU), Silver (SR)
Description Universal Installation Bracket
Pack Cont. 1pc.
Package Content packed in Box
PART DESCRIPTION INSTALL-BRKT
Product Family Mounting Brackets
Product Group Universal Installation Bracket

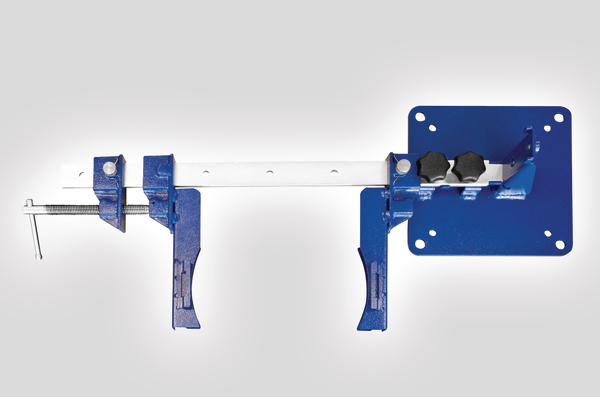

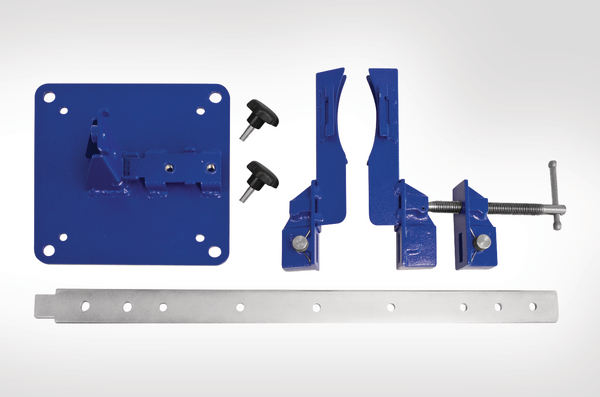

Technical Description The Universal Installation Bracket is designed for securing the full HellermannTyton range of broadband closures and can be positioned either horizontally or vertically providing the best access possible during installation or maintenance. The installation bracket is supplied with a single set of clamping jaws which are adjustable and accommodate the full range of closures from the largest UFC to the smallest FST. The Installation Bracket can be clamped to a suitable workbench surface or bolted in place using the mounting holes provided, it is manufactured from high quality mild steel which is zinc passivated and painted for a long service life.

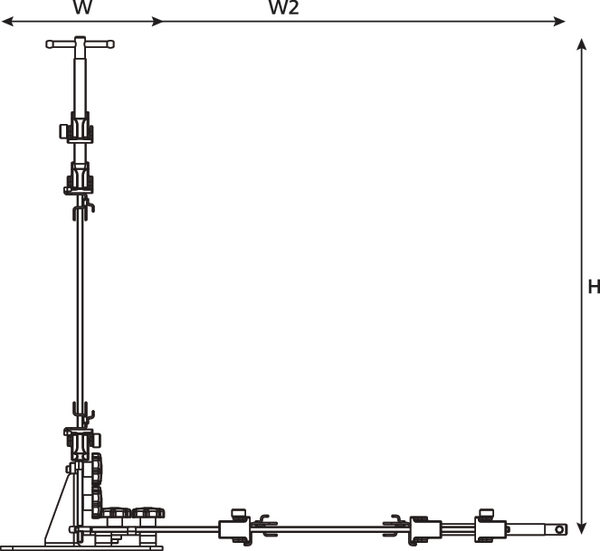

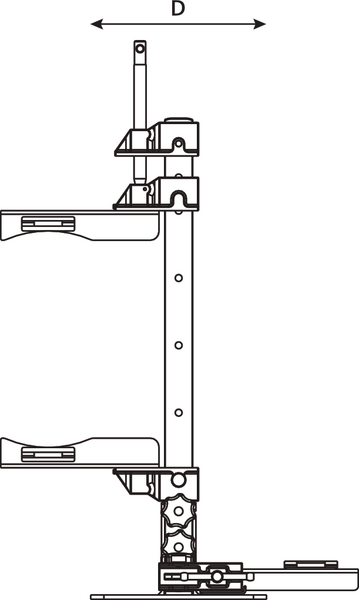

Depth (D) 200mm
Height (H) 635mm
Width (W) 200mm
Width (W2) 700mm
Hazardous Goods No
Country of Origin GB
Customs Number 73269098
GTIN-13 / EAN 5022660123269
EFO Norway block number 109801
ETIM 7.0 Key EC002609
ETIM 8.0 Key EC002609
ETIM 9.0 Key EC002609
UNSPSC Key 43223337
