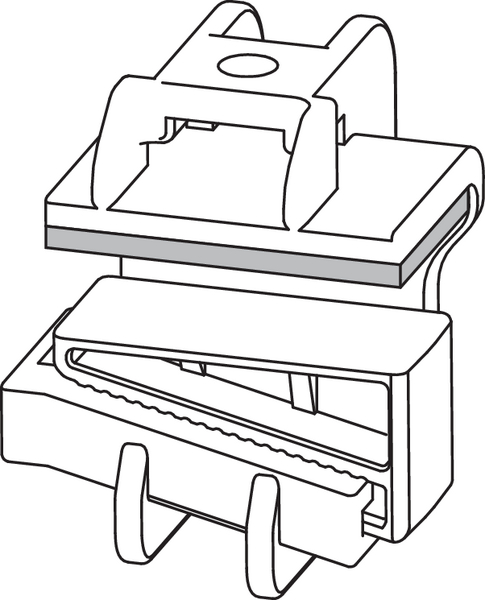

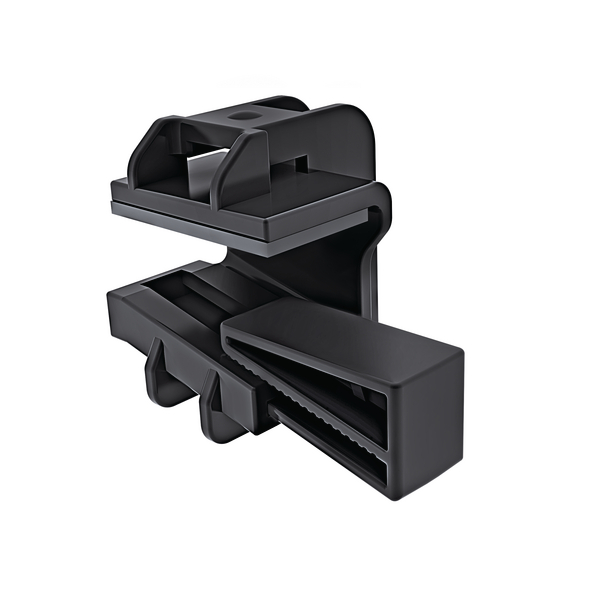

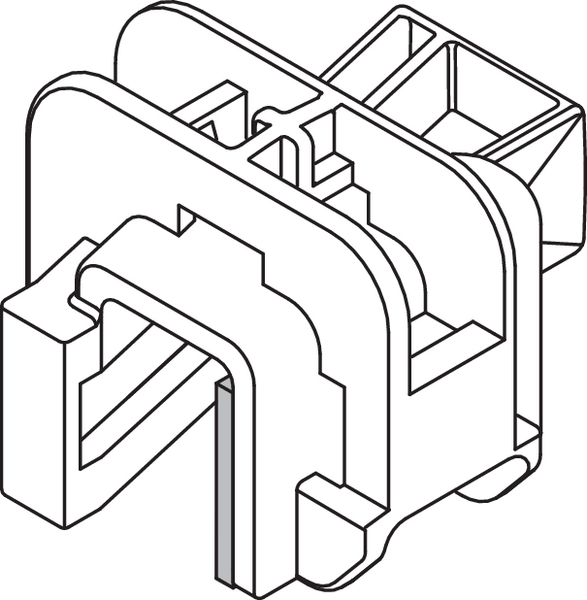

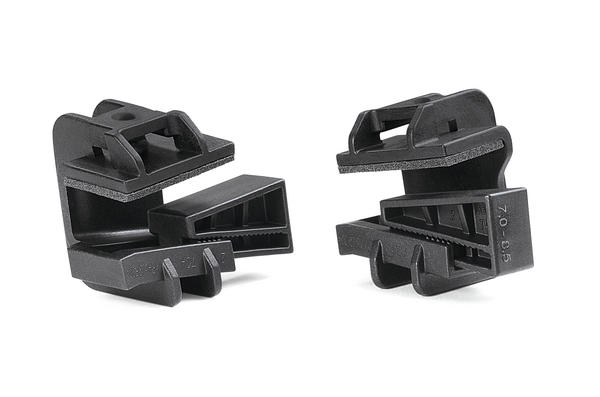

Beam Clamp B with foam

Article number: 151-01186

Features

  • Easy to install
  • No demage to surfaces
  • Easy maintenance of bundle by simply changing cable tie
  • Cable tie head can be moved after bundling
  • Applicable to a wide range of panel thicknesses

Certifications & Approvals

Application

Primarily designed for use in the automotive/truck industry, these parts can be used in a wide variety of industries and applications where bundles need mounting.
These heavy duty harness clips help to fix and secure cables, lines and hydraulic lines in truck, agriculture and railway vehicle construction, as well as in the ship building industry and industrial buildings.

Colour Black (BK)
GLOBAL PART NAME Beam Clamp B with foam-PA6GF30-BK
Pack Cont. 200
Package Quantity per Bag
Type Beam Clamp B with foam_PA6GF30_T1
for Panel Thickness min - max 7 - 8.5 mm
Height (H) 36.7mm
Height (H2) 12.5mm
Length (L) 46.2mm
Length (L2) 27.0mm
Width (W) 28.6mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous goods No
Material Polyamide 6, glass-fibre reinforced (PA6GF30%)
Specifications
EAN / GTIN 4031026468181
Packaging 1 - Height (m) 0.2m
Packaging 1 - Length (m) 0.395m
Packaging 1 - Qty 200
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.03555
Packaging 1 - Weight (kg) 2.4325kg
Packaging 1 - Width (m) 0.45m
Packaging 2 - Type Carton
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 1200
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 15.415kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 14400
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 206.016kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
ETIM 5.0 EC000449
ETIM 6.0 EC000449
