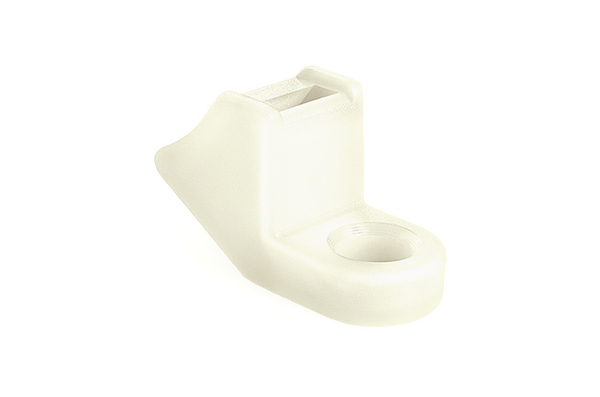

Screw Fixing Mounts CL8

LKM / CL / FH with curved design for sideways fixing, Article number: 151-02258

Features

  • Small overall size for areas with limited mounting space
  • Screwable mounts for fixing cable sideways
  • Ideal for securing large, heavier bundles
  • Suitable for cable ties up to 8 mm width

Certifications & Approvals

Application

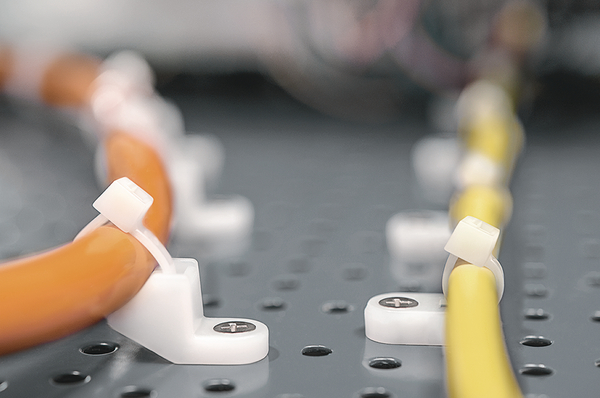

In areas with limited space these mounting bases allow the cable to be offset from the fixing hole, and can be installed in the equipment prior to the cable installation. A major cost saving can be made using these products as they will allow the use of many different sizes of standard cable ties without the need to stock a wide range of specific fixing ties.

LKM / CL / FH with curved design for sideways fixing is suitable for following markets and industries

Colour Natural (NA)
Description Short (BMEcat) (max. 150 characters) Screw Fixing Mounts with curved design 27,3x12.5 mm, sideways fixing, natural
Fixation Method Screw Mounting and Rivet
GLOBAL PART DESCRIPTION CL8-PA66-NA
Mounting Screw Type M6
Pack Cont. 100pcs.
Package Quantity per pcs.
Product Family LKM / CL / FH with curved design for sideways fixing
Product Group Screw Fixing Mounts
for Hole ∅ (FH) 6.5 mm
Height (H) 16.0mm
Height (H2) 5.0mm
Length (L) 27.3mm
Strap Width max. (G) 8.0mm
Width (W) 12.5mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogenfree Yes
Hazardous good No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
EAN / GTIN 4031026122472
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.12m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00127
Packaging 1 - Weight (kg) 0.167kg
Packaging 1 - Width (m) 0.265m
Packaging 3 - Height (m) 0.17m
Packaging 3 - Length (m) 0.56m
Packaging 3 - Qty 2000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0171
Packaging 3 - Weight (kg) 3.56kg
Packaging 3 - Width (m) 0.18m
Packaging 4 - Height (m) 1.171m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 96000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.124
Packaging 4 - Weight (kg) 191.88kg
Packaging 4 - Width (m) 0.8m
Weight 0.161kg
ETIM 6.0 EC000449
UNSPSC Key 39121717
