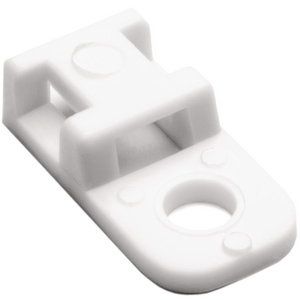

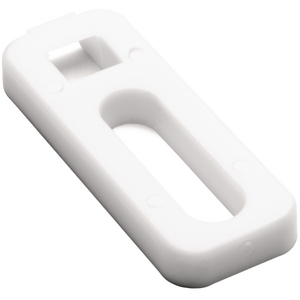

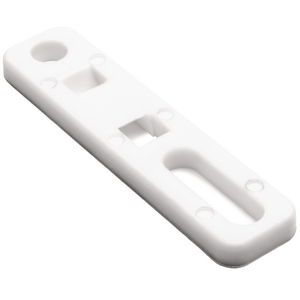

Screw Fixing Mounts CTAP1

CTAM-Series for applications where space is limited, Article number: 151-00288

Features

  • Suitable for applications with minimal space
  • Mounted before cable installation and in line with cable
  • CTAP mounts offer adjustable stand off feature for precision placement

Certifications & Approvals

Application

Each of these products offers particular benefits, but all are designed for simple, yet robust, installation in a wide variety of applications. Particularly used in telecoms equipment, switchgear and control cabinets.

CTAM-Series for applications where space is limited is suitable for following markets and industries

Colour White (WH)
Fixation Method Screw Mounting and Rivet
GLOBAL PART NAME CTAP1-PA66-WH
Mounting Screw Type #10 Screw
Pack Cont. 1000
Package Quantity per Bag
Product Family CTAM-Series for applications where space is limited
Product Group Screw Fixing Mounts

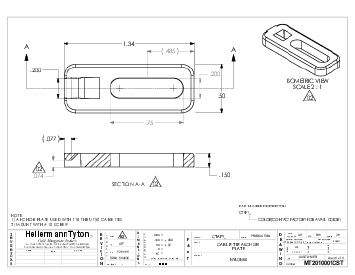

Type CTAP110M4
for Hole ∅ (FH) 5.0 x 19.0 mm
Height (H) 3.80mm
Length (L) 34.0mm
Strap Width max. (G) 5.0mm
Strap Width max. (G) (imperial) 0.2"
Width (W) 12.7mm
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous goods No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
Specifications UL
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
EAN / GTIN 4031026430287
Packaging 1 - Qty 1000
Packaging 1 - Type Bag
Packaging 1 - Weight (kg) 1.994kg
Packaging Content SKU Unit pieces
ETIM 5.0 EC000449
ETIM 6.0 EC000449
UNSPSC Key 39121717
