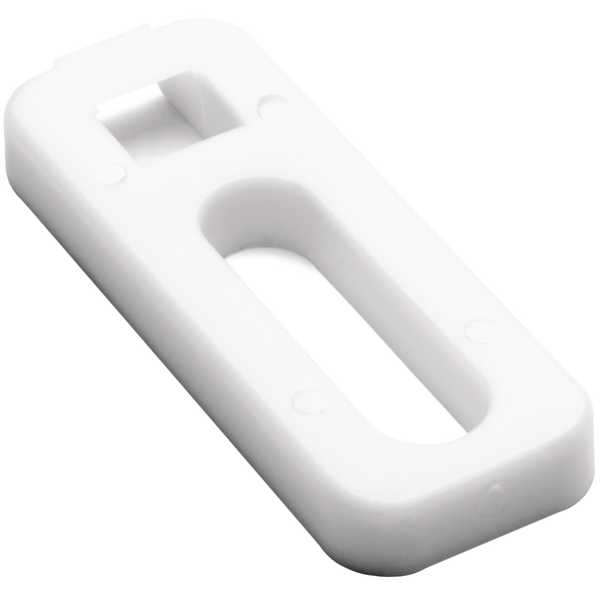

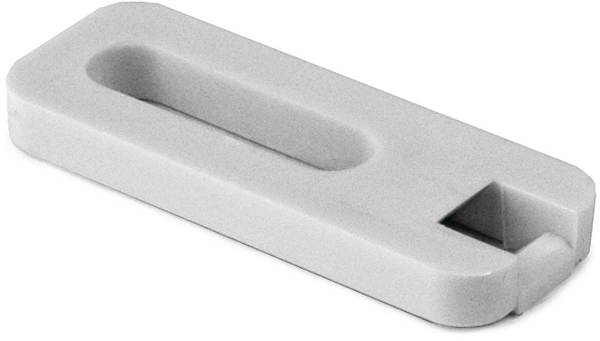

Screw Fixing Mounts CTAP1

CTAM-Series for applications where space is limited, Article number: 151-30100

Features

  • Suitable for applications with minimal space

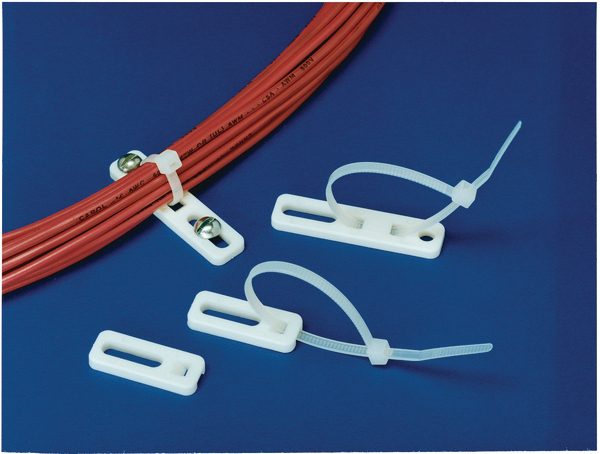

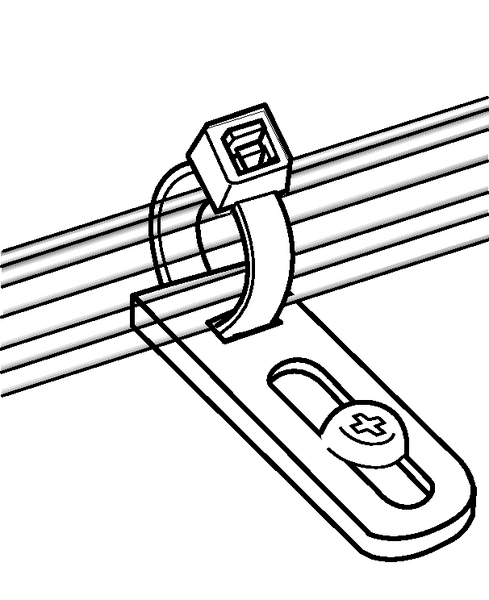

  • Mounted before cable installation and in line with cable
  • CTAP mounts offer adjustable stand off feature for precision placement

Certifications & Approvals

Application

Each of these products offers particular benefits, but all are designed for simple, yet robust, installation in a wide variety of applications. Particularly used in telecoms equipment, switchgear and control cabinets.

CTAM-Series for applications where space is limited is suitable for following markets and industries

  • Solar Energy Sector Solar Energy Sector
  • Wind Energy Sector Wind Energy Sector
  • Rail Transportation Sector Rail Transportation Sector
  • Shipbuilding Shipbuilding
  • Defence Industry Defence Industry
Colour White (WH)
Fixation Method Screw Mounting and Rivet
GLOBAL PART NAME CTAP1-PA66-WH
Mounting Screw Type #10 Screw
Pack Cont. 100
Package Quantity per Bag
Product Family CTAM-Series for applications where space is limited
Product Group Screw Fixing Mounts

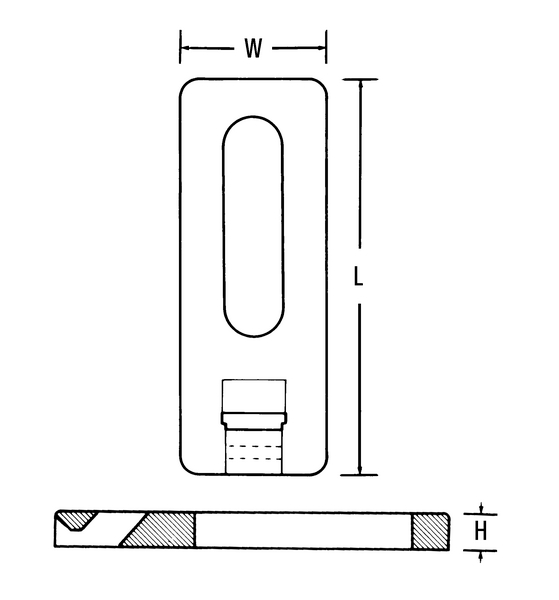

Type CTAP1.NN3P

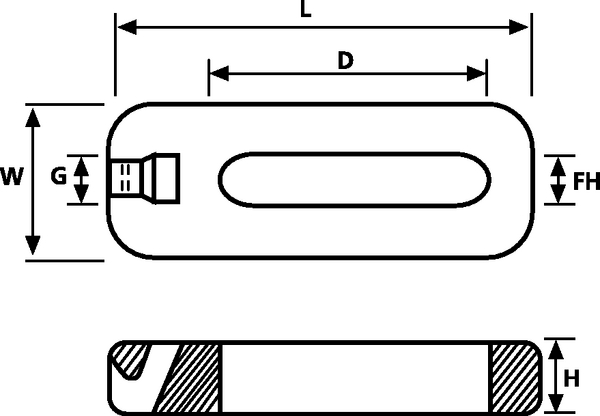

for Hole ∅ (FH) 5.0 x 19.0 mm
Height (H) 3.80mm
Length (L) 34.0mm
Strap Width max. (G) 5.0mm
Strap Width max. (G) (imperial) 0.2"
Width (W) 12.7mm
CSA Certified No
Flammability UL 94 V2
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
Specifications UL-ZODZ2.E64139
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL-File Number E64139
EAN / GTIN 4031026312514
Packaging Content SKU Unit pieces
ETIM 5.0 EC000449
ETIM 6.0 EC000449
UNSPSC Key 39121717
