Fixing elements for Parallel Routing, twistable DSWS5

DSWS-Series, Article number: 151-06502

Features

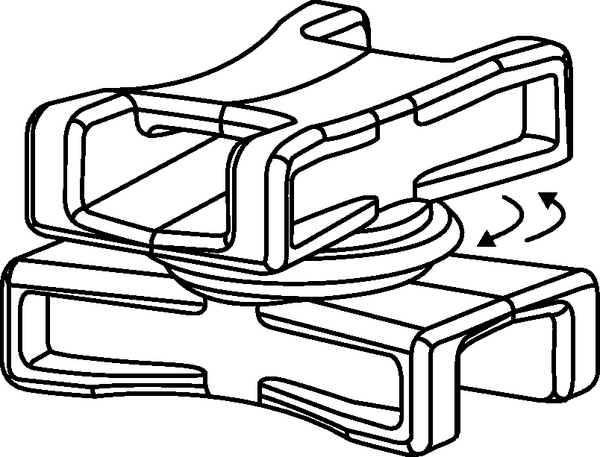

  • For parallel routing of bundles that can be twisted 360° even after setting
  • Secure alignment to the bundle due to H-design
  • Cable tie head can be moved after bundling
  • For cable ties up to 12.7 mm wide
  • For post-installation of bundles

Certifications & Approvals

Application

Primarily designed for use in the automotive/ truck industry, these parts can be used in a wide variety of industries and applications where bundles need separation from each other.

DSWS-Series is suitable for following markets and industries

Colour Black (BK)

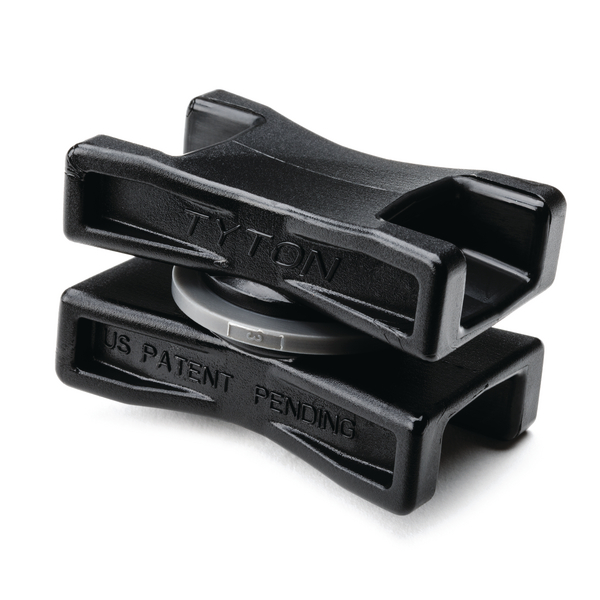

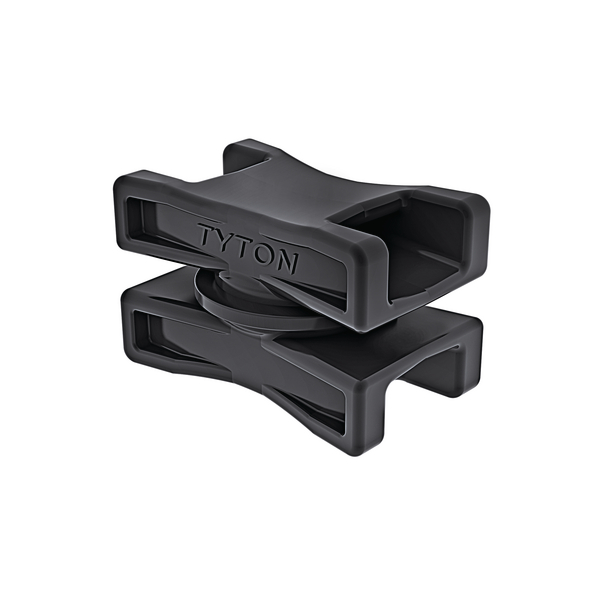

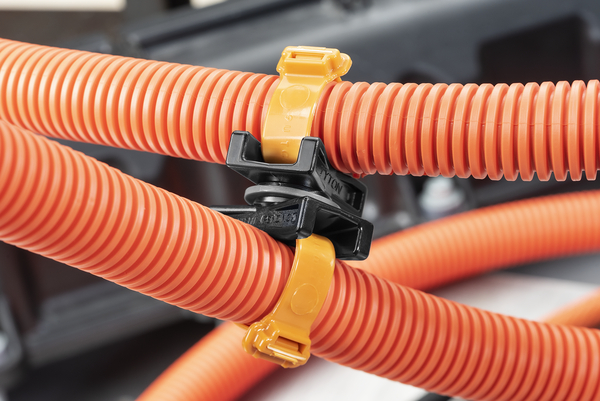

Description These saddle spacers are installed between two bundles (such as wires, cables, hoses, tubing, conduit, etc.) to separate and prevent chafing and wear. The mounts can be easily rotated by hand, allowing the bundles to be crossed and rotated at any angle. Cable ties, which secure the bundles, are used with the mounts. The dual swivel saddle spacers accommodate cable ties up to 1/2” wide
Description Short (BMEcat) (max. 150 characters) Fixing Element for Parallel Routing 40.6x25.4 mm, twistable, heat stabilised, black
Fixation Method None
GLOBAL PART NAME DSWS5-PA66HS/POM-BK
Pack Cont. 50
Package Quantity per Bag
Product Family DSWS-Series
Product Group Fixing elements for Parallel Routing, twistable
Type DSWS50C2.NB2P
Bundle ∅ max. 152.0mm
Bundle ∅ min. 16.0mm

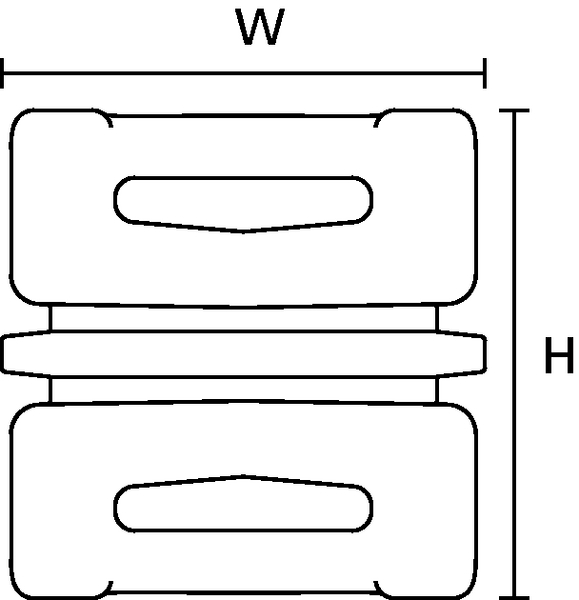

Height (H) 23.6mm
Length (L) 40.6mm
Strap Width max. (G) 12.7mm
Strap Width max. (G) (imperial) 0.5"
Width (W) 25.4mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous goods No
Material Polyamide 6.6, heat stabilised (PA66HS), Polyacetal (POM)
Min. Extr. Force (lbs) 250.0lbs
Min. Extraction Force (N) 1112N
Operating Temperature - °C -40 °C to +105 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
EAN / GTIN 4031026301471
Packaging 1 - Height (m) 0.035m
Packaging 1 - Length (m) 0.23m
Packaging 1 - Qty 50
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00129
Packaging 1 - Weight (kg) 0.684kg
Packaging 1 - Width (m) 0.16m
Packaging 3 - Height (m) 0.0775m
Packaging 3 - Length (m) 0.2m
Packaging 3 - Qty 600
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0019
Packaging 3 - Weight (kg) 8.202kg
Packaging 3 - Width (m) 0.1225m
Packaging Content SKU Unit pieces
Weight 1.5kg
ETIM 5.0 EC000449
ETIM 6.0 EC000449
UNSPSC Key 39121717
