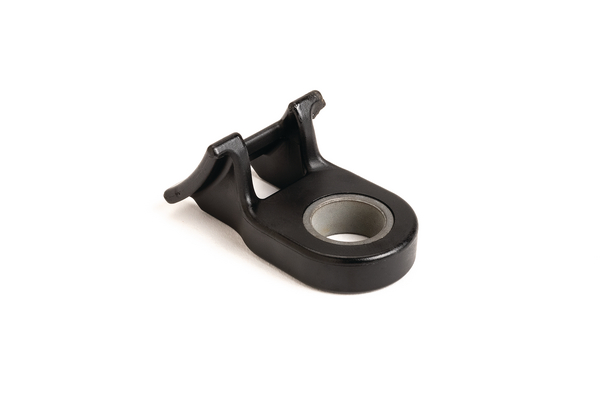

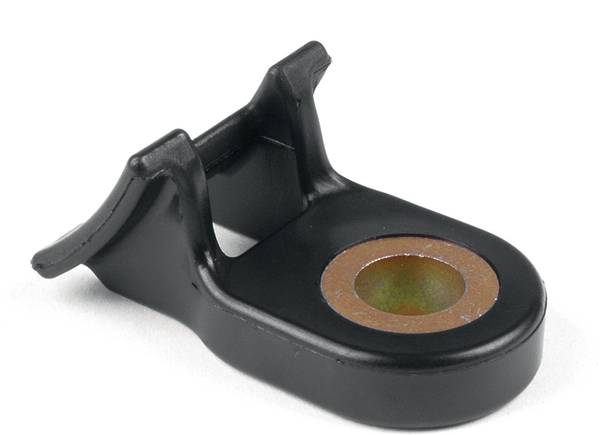

Harness Clip for Heavy Duty Applications, for Screws or threaded Bolts HDM500

High Torque Mounts, Article number: 151-07400

Features

  • Design offers secure alignment to the bundle
  • Possible replacement of cushion clamps and/or metal clamps
  • Eliminates the needs for multiple sized fix diameter clamps
  • For heavy duty cable ties up to 12.7 mm width
  • High tightening torque through metal bushing
  • Easy maintenance of bundle by simply changing the cable tie

Application

These heavy duty mounts (HDM) have been primarily designed for use in the automotive and truck industry. Nowadays they can be found in a variety of applications requiring heavy duty mounting in areas like the railway, defence and/or argriculture industry.

High Torque Mounts is suitable for following markets and industries

Colour Black (BK)
Fixation Method Screw Mounting and Rivet
GLOBAL PART NAME HDM500-PA66HIRHSUV-BK
Pack Cont. 500
Package Quantity per Carton
Product Family High Torque Mounts
Product Group Harness Clip for Heavy Duty Applications, for Screws or threaded Bolts
Type HDM500BHIHS-HSW-BK-D1
for Hole ∅ (FH) 12.7 mm
Height (H) 20.7mm
Length (L) 47.0mm
Strap Width max. (G) 12.7mm
Strap Width max. (G) (imperial) 0.5"
Width (W) 25.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous goods No
Material Polyamide 6.6, high impact modified, heat and UV stabilised (PA66HIRHSUV)
Maximum Torque (kgf-cm) 1576kgf-cm
Maximum Torque (lbf-In) 114lbf-ft
Operating Temperature - °C -40 °C to +110 °C
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
EAN / GTIN 4031026270098
Packaging 1 - Height (m) 0.358m
Packaging 1 - Length (m) 0.592m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.04239
Packaging 1 - Weight (kg) 7.426kg
Packaging 1 - Width (m) 0.2m
Packaging 2 - Height (m) 0.155m
Packaging 2 - Length (m) 0.435m
Packaging 2 - Qty 500
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0185
Packaging 2 - Weight (kg) 7.646kg
Packaging 2 - Width (m) 0.275m
Packaging 3 - Height (m) 0.27m
Packaging 3 - Length (m) 0.6m
Packaging 3 - Qty 500
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0648
Packaging 3 - Weight (kg) 10.946kg
Packaging 3 - Width (m) 0.4m
Packaging Content SKU Unit pieces
Weight 0.0375lbs
Weight 0.0170kg
ETIM 5.0 EC000449
ETIM 6.0 EC000449
UNSPSC Key 39121717
