Screw Fixing Mounts LKC

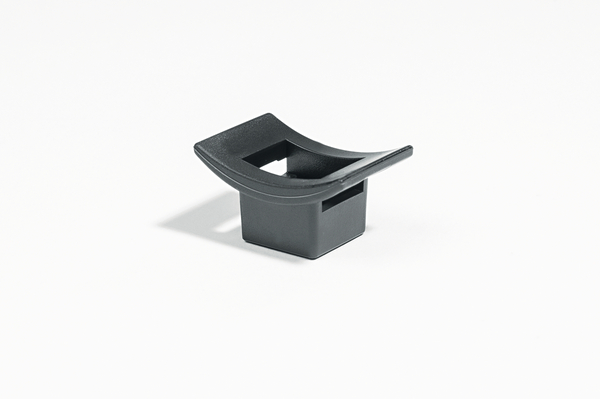

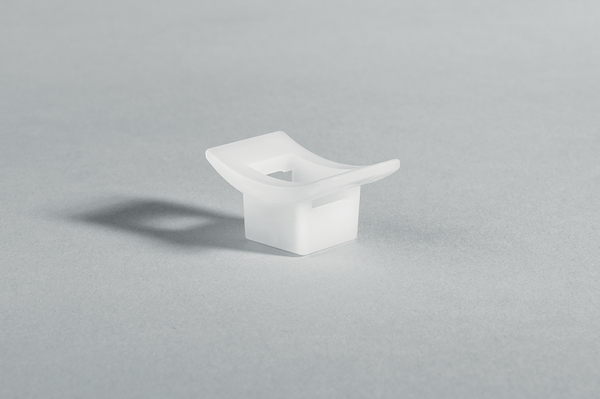

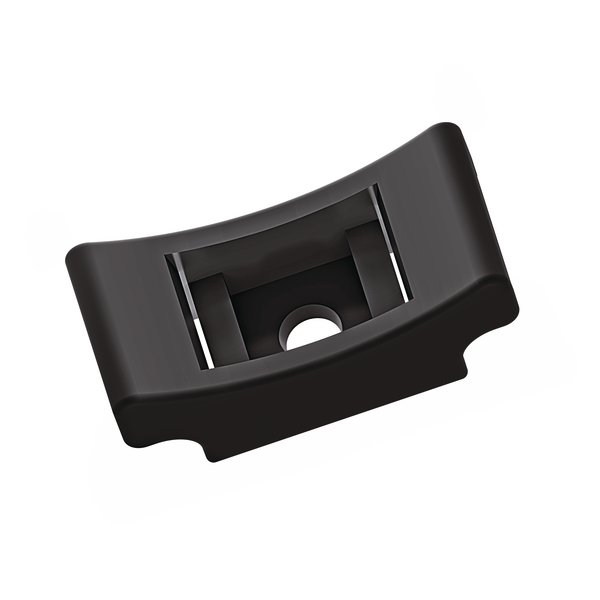

LKC with overlapping curved design, Article number: 151-27019

Features

  • Curved design for additional cable support
  • Simple to install with a screw or bolt
  • Excellent security, particularly in areas of high vibration

Certifications & Approvals

Application

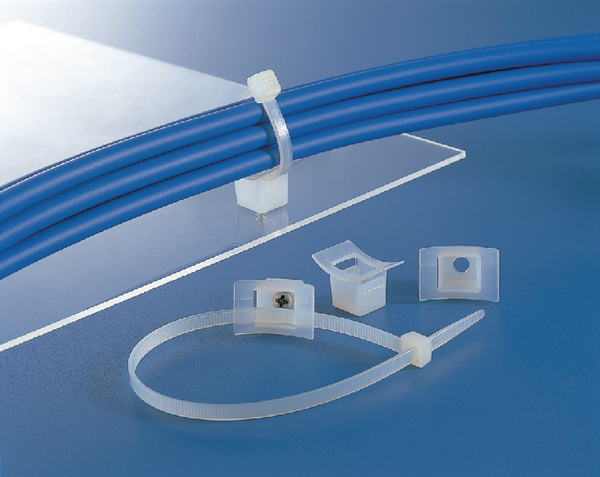

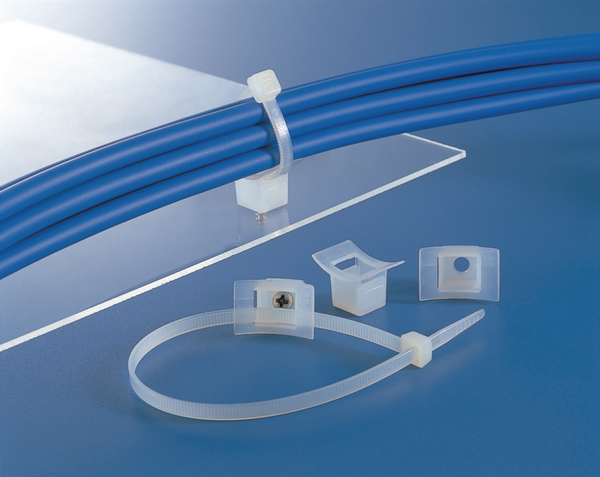

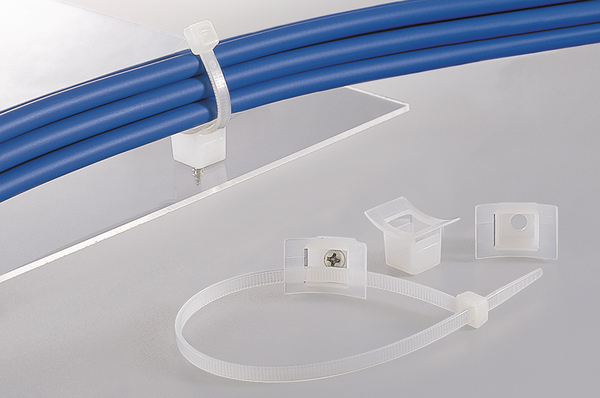

Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from agriculture to truck manufacture. They offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 13mm wide.

LKC with overlapping curved design is suitable for following markets and industries

Colour Natural (NA)
Description Cable Tie Mount LKC
Description Short (BMEcat) (max. 150 characters) Screw Fixing Mounts with overlapping curved design 25x17 natural
Fixation Method Screw Mounting and Rivet
GLOBAL PART NAME LKC-PA66-NA
Mounting Screw Type M4
Pack Cont. 100pcs.
Package Quantity per Bag
Product Family LKC with overlapping curved design
Product Group Screw Fixing Mounts
Short Description Both the LKC and LKCSF1 mounts give additional support to the cables by means of their curved design, whilst the LKCR and LKCS are the 'screw mounted' versions of the popular LKCRSA and LKCSSA.self adhesive mounts. Simple to install with a screw or bolt they give excellent security, particularly in areas of high vibration.
Type LKC.NN3P

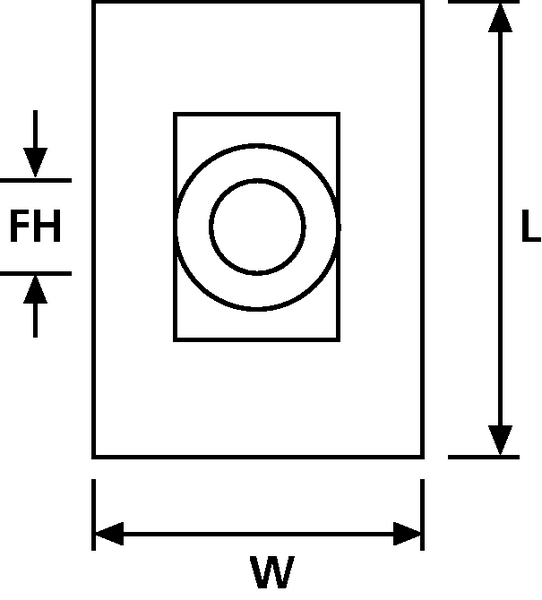

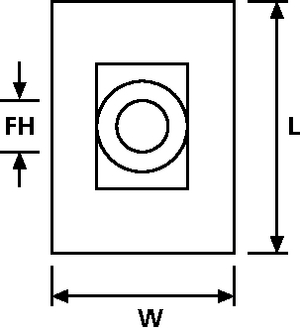

for Hole ∅ (FH) 5.5 mm

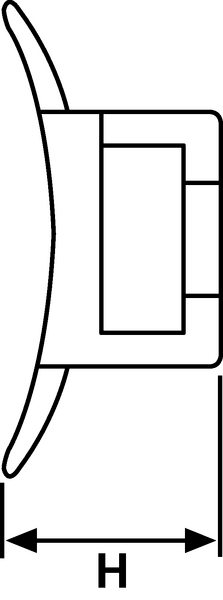

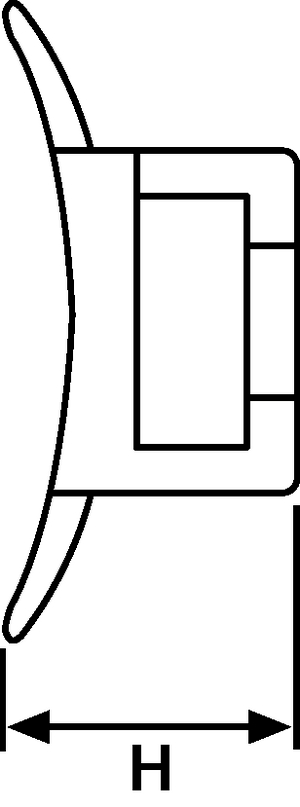

Height (H) 13.5mm
Length (L) 25.0mm
Strap Width max. (G) 8.0mm
Width (W) 17.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous goods No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
EAN / GTIN 5022660310430
Packaging 1 - Height (m) 0.058m
Packaging 1 - Length (m) 0.133m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00093
Packaging 1 - Weight (kg) 0.16kg
Packaging 1 - Width (m) 0.121m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 6000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 10.25kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.235m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 120000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.186
Packaging 4 - Weight (kg) 226.0kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
Weight 2kg
ETIM 5.0 EC000449
ETIM 6.0 EC000449
UNSPSC Key 39121717
