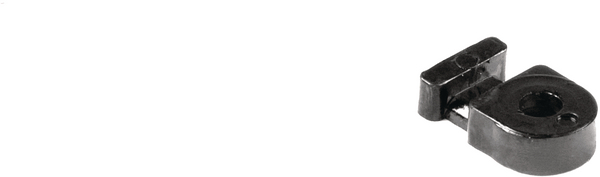

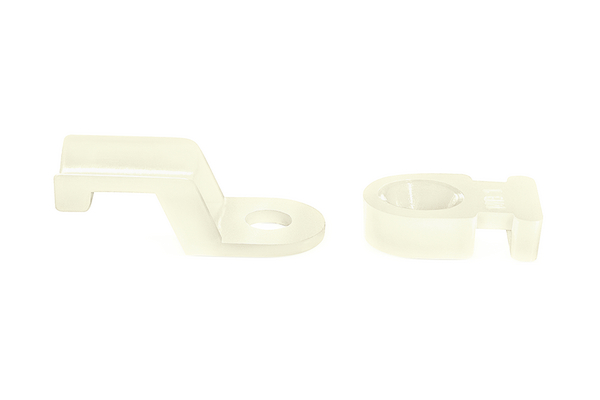

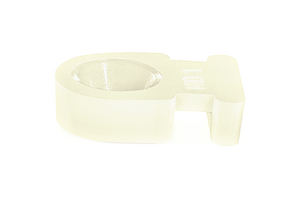

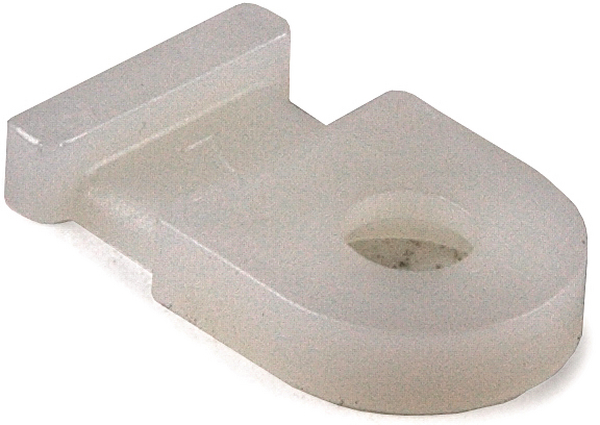

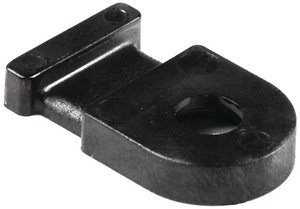

Screw Fixing Mounts MB1

MB with flat design, Article number: 151-28101

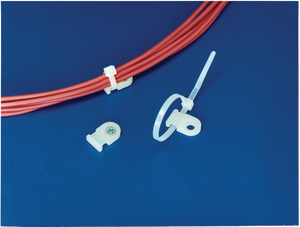

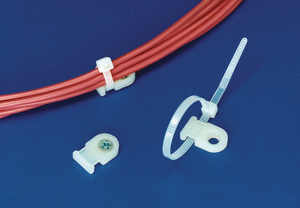

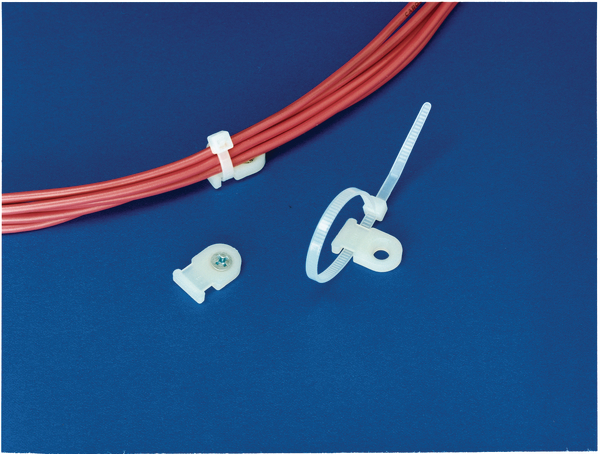

  • Simple to install with a screw or bolt
  • Excellent security, particularly in areas of high vibration

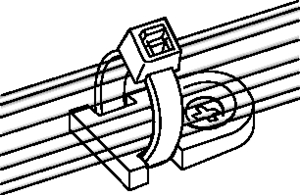

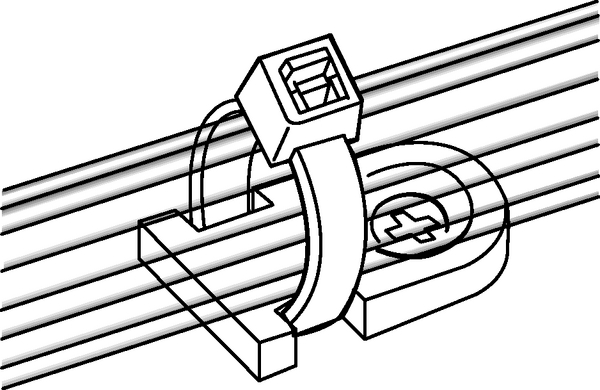

  • Single hole fixing with two-way entry for cable tie

Certifications & Approvals


These cable tie mounts are very small in their overall size. They are designed for simple yet robust installation particulary in areas with high vibrations and/or limited space. They are a common fixing method for telecoms equipment, switchgear and control cabinets.

MB with flat design is suitable for following markets and industries

  • Solar Energy Sector Solar Energy Sector
  • Wind Energy Sector Wind Energy Sector
  • Rail Transportation Sector Rail Transportation Sector
  • Shipbuilding Shipbuilding
  • Defence Industry Defence Industry
Colour Black (BK)
Fixation Method Screw Mounting and Rivet
Mounting Screw Type M4
Pack Cont. 100
Package Quantity per Bag
Product Family MB with flat design
Product Group Screw Fixing Mounts

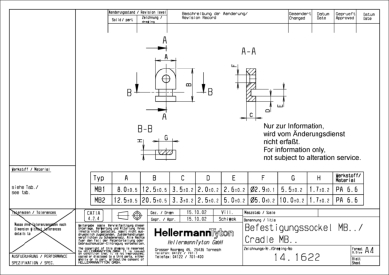

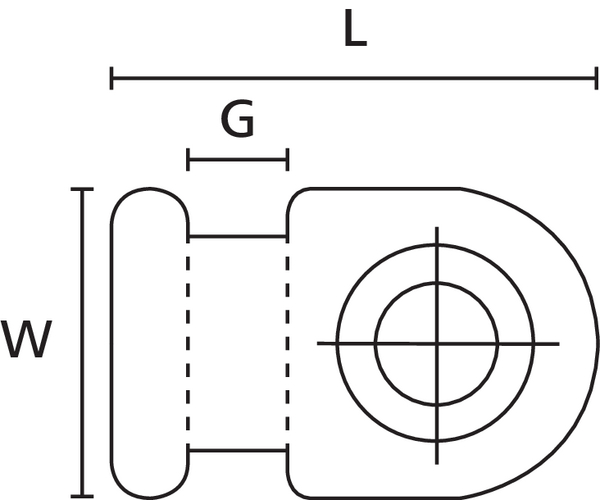

Type MB1.NB3P

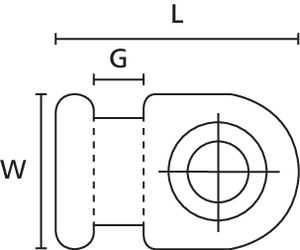

for Hole ∅ (FH) 2.9 mm

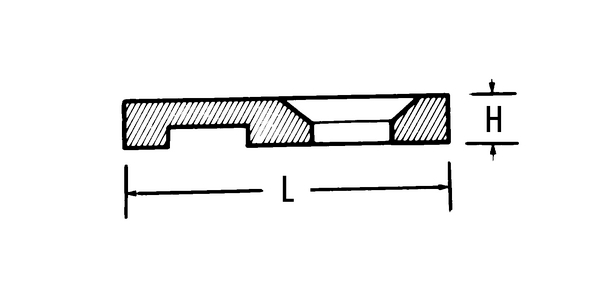

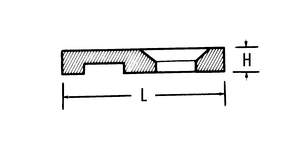

Height (H) 3.5mm
Length (L) 12.5mm
Strap Width max. (G) 2.6mm

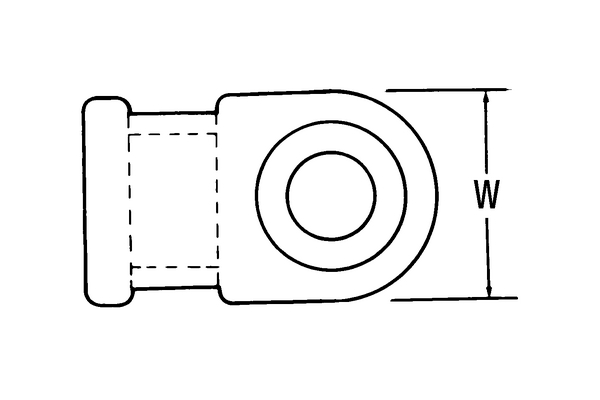

Width (W) 8.0mm
Flammability UL 94 V2
Halogenfree Yes
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
EAN / GTIN 4031026312439
ETIM 5.0 EC000449
ETIM 6.0 EC000449
