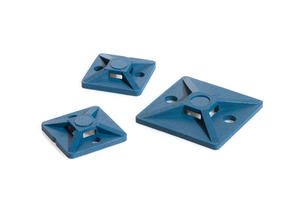

Cable Tie Mounts for food industry, detectable MCMB3

MCMB-Series, screwable, Article number: 151-01169

Features

  • Distinctive blue colour for easy visual detection
  • Simple to install with a screw or bolt
  • Provides a secure fixing solution for routing cables, tubes and hoses
  • 4-way entry of the cable tie for a quicker and more flexible installation
  • Magnetic and X-Ray detectable – perfect for use with food and pharmaceutical grade detection equipment
  • Total metal dispersion provides consistent detectability, even for small 'cut-off' pieces
  • Greatly reduced risk of contamination within food products
  • Usable as part of HACCP process*

Certifications & Approvals

Application

MCMB mounts are ideally suited for holding MCT-Series cable ties in position, even in areas of high vibration such as food manufacturing equipment and automated packaging machines.

MCMB-Series, screwable is suitable for following markets and industries

Colour Blue (BU)
Description Short (BMEcat) (max. 150 characters) Metal Content Cable Tie Mount screwable 19x19 mm PA66MP blue
Fixation Method Screw Mounting and Rivet
GLOBAL PART NAME MCMB3-PA66MP-BU
Pack Cont. 100pcs.
Package Quantity per Bag
Product Family MCMB-Series, screwable
Product Group Cable Tie Mounts for food industry, detectable
Type MCTMB3.NL3P

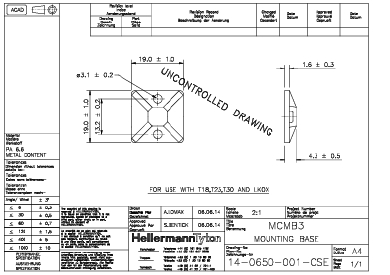

Fixing Hole Centres (F) 13.2mm
for Hole ∅ (FH) 3.1 mm
Height (H) 3.8mm
Length (L) 19mm
Strap Width max. (G) 3.5mm
Width (W) 19mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogenfree Yes
Hazardous goods No
Material Polyamide 6.6, with metal particles (PA66MP)
Operating Temperature - °C -40 °C to +85 °C
Specifications
EAN / GTIN 5022660342899
Packaging 1 - Height (m) 0.017m
Packaging 1 - Length (m) 0.175m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00043
Packaging 1 - Weight (kg) 0.081kg
Packaging 1 - Width (m) 0.145m
Packaging 3 - Height (m) 0.27m
Packaging 3 - Length (m) 0.6m
Packaging 3 - Qty 6000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0648
Packaging 3 - Weight (kg) 8.16kg
Packaging 3 - Width (m) 0.4m
Packaging Content SKU Unit pieces
ETIM 5.0 EC000449
ETIM 6.0 EC000449
