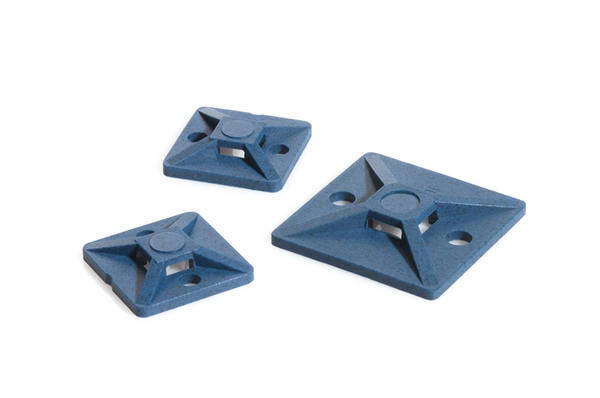

Cable Tie Mounts for food industry, detectable MCMB4

MCMB-Series, screwable, Article number: 151-01170

Features

  • Distinctive blue colour for easy visual detection
  • Simple to install with a screw or bolt
  • Provides a secure fixing solution for routing cables, tubes and hoses
  • 4-way entry of the cable tie for a quicker and more flexible installation
  • Magnetic and X-Ray detectable – perfect for use with food and pharmaceutical grade detection equipment
  • Total metal dispersion provides consistent detectability, even for small 'cut-off' pieces
  • Greatly reduced risk of contamination within food products
  • Usable as part of HACCP process*

Certifications & Approvals

Application

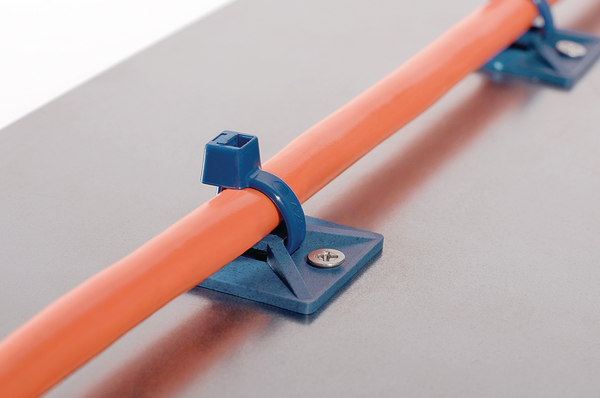

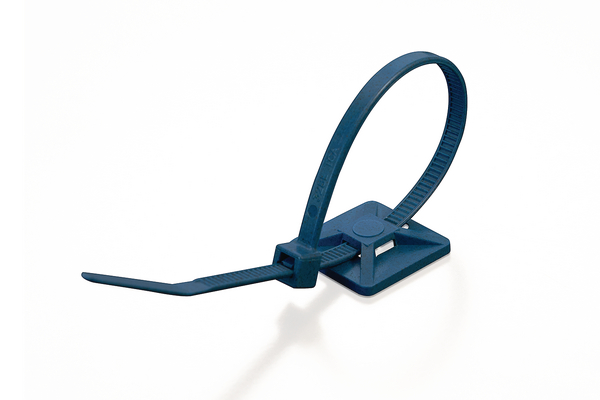

MCMB mounts are ideally suited for holding MCT-Series cable ties in position, even in areas of high vibration such as food manufacturing equipment and automated packaging machines.

MCMB-Series, screwable is suitable for following markets and industries

Colour Blue (BU)
Description Short (BMEcat) (max. 150 characters) Metal Content Cable Tie Mount screwable 28x28 mm PA66MP blue
Fixation Method Screw Mounting and Rivet
GLOBAL PART NAME MCMB4-PA66MP-BU
Pack Cont. 100pcs.
Package Quantity per Bag
Product Family MCMB-Series, screwable
Product Group Cable Tie Mounts for food industry, detectable
Type MCTMB4.NL3P

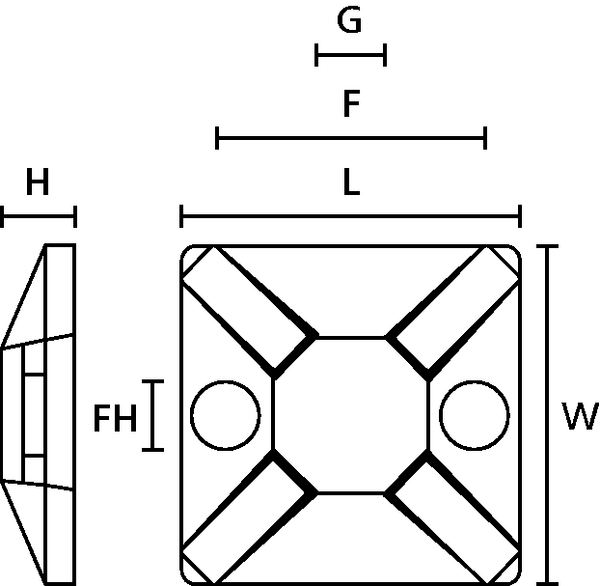

Fixing Hole Centres (F) 20.0mm
for Hole ∅ (FH) 4.0 mm
Height (H) 4.7mm
Length (L) 28mm
Strap Width max. (G) 4.7mm
Width (W) 28mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogenfree Yes
Hazardous goods No
Material Polyamide 6.6, with metal particles (PA66MP)
Operating Temperature - °C -40 °C to +85 °C
Specifications
EAN / GTIN 5022660342905
Packaging 1 - Height (m) 0.025m
Packaging 1 - Length (m) 0.203m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00077
Packaging 1 - Weight (kg) 0.17kg
Packaging 1 - Width (m) 0.152m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 5000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 9.15kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.235m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 100000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.186
Packaging 4 - Weight (kg) 204.0kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
ETIM 5.0 EC000449
ETIM 6.0 EC000449
