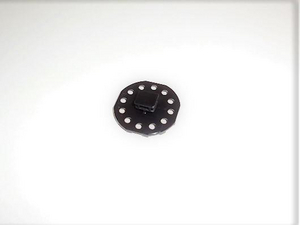

Paste Adhesive Mount PMB5

PMB5 mount for uneven surfaces, Article number: 151-00498

Features

  • PMB5 paste adhesive mount for fixings with paste / liquid adhesive
  • Mount geometry offers a good form closure with cured adhesive
  • Can even be installed onto uneven surfaces due to large diameter
  • Can also be applied in combination with hot-melt adhesive, as mount is made of heat resistant PA66

Certifications & Approvals

Application

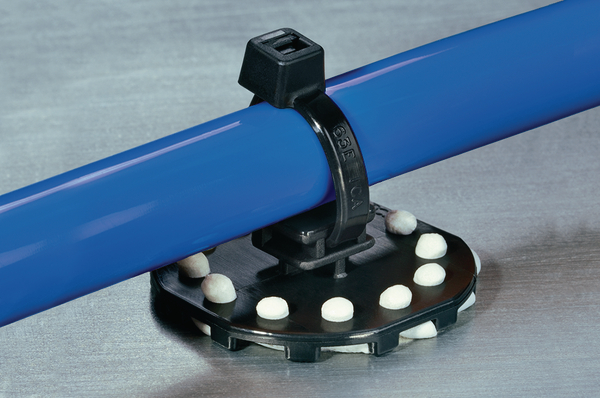

The PMB5 mount offers a fixing solution for applications where a screw fixing is not possible. Due to a larger diameter the mount can even be installed onto uneven surfaces. PMB5 mounts are used in the railway industry as well as in the renewable energy industry. Further applications can be seen in the ship building and electrical industries and the production of switching cabinets.

PMB5 mount for uneven surfaces is suitable for following markets and industries

Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Paste Adhesive Mount HS-black
Fixation Method Pasting / Stick
GLOBAL PART NAME PMB5-PA66HS-BK
Pack Cont. 100pcs.
Package Quantity per Bag
Product Family PMB5 mount for uneven surfaces
Product Group Paste Adhesive Mount
Type PMB5-PA66HS-BK-D1

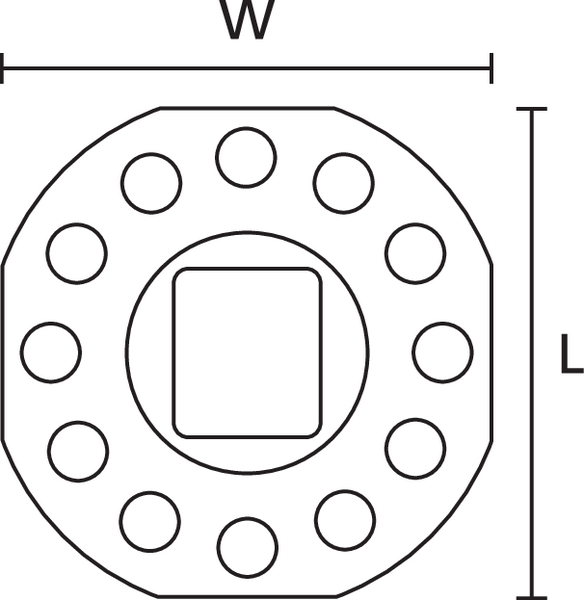

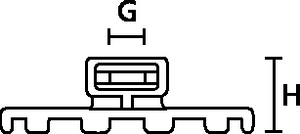

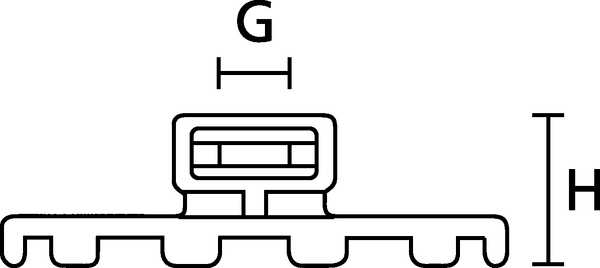

Height (H) 10.7mm
Length (L) 36.0mm
Strap Width max. (G) 4.8mm
Width (W) 36.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous goods No
Material Polyamide 6.6, heat stabilised (PA66HS)
Operating Temperature - °C -40 °C to +105 °C, (+145 °C, 500 h)
Specifications
EAN / GTIN 4031026286655
Packaging 1 - Height (m) 0.3m
Packaging 1 - Length (m) 0.625m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0825
Packaging 1 - Weight (kg) 0.2361kg
Packaging 1 - Width (m) 0.44m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 2000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 5.372kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.235m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 40000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.186
Packaging 4 - Weight (kg) 128.44kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
Weight 2.23kg
ETIM 5.0 EC000449
ETIM 6.0 EC000449
