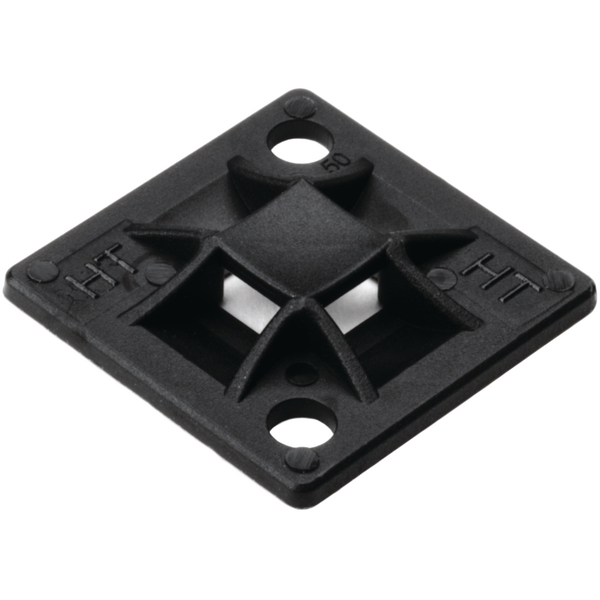

Q-Series QM20

Q-mount Series QM, Article number: 151-10911

Features

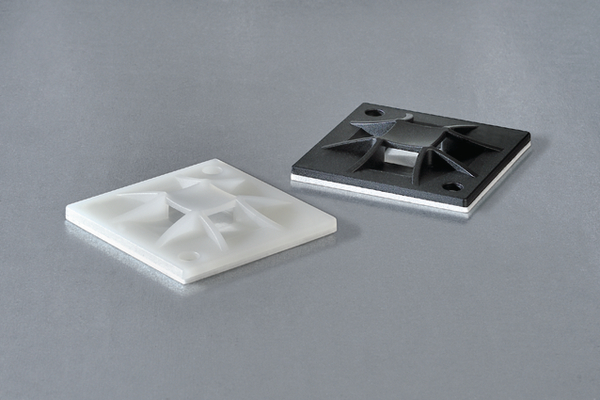

  • Screwable or self-adhesive versions
  • 4-way entry for Q-ties
  • Perfect for combination with Q-ties

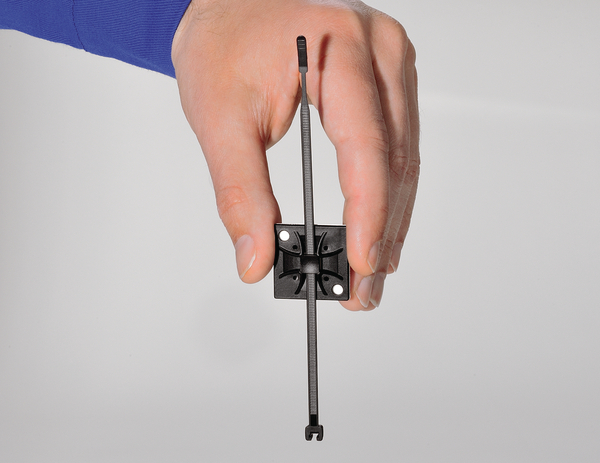

  • Pre-assembly feature
  • Ensures hold on Q-ties in difficult situations like vertical mounting positions

Certifications & Approvals

Application

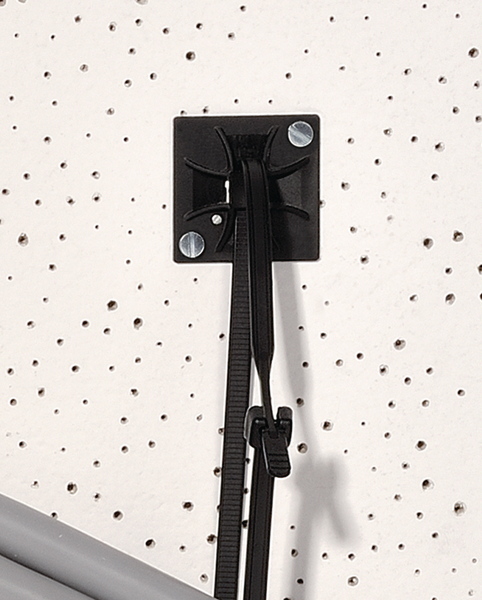

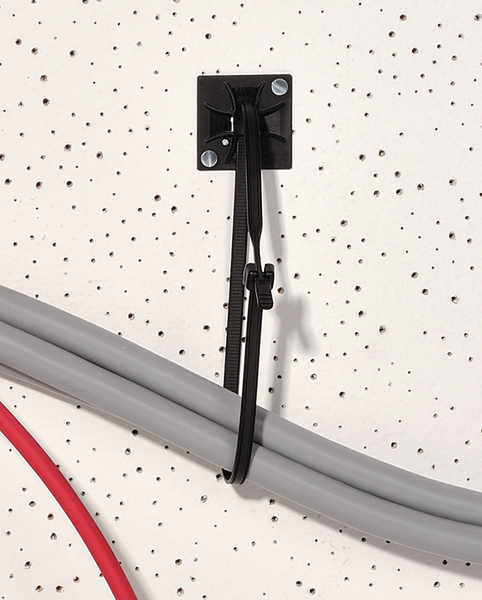

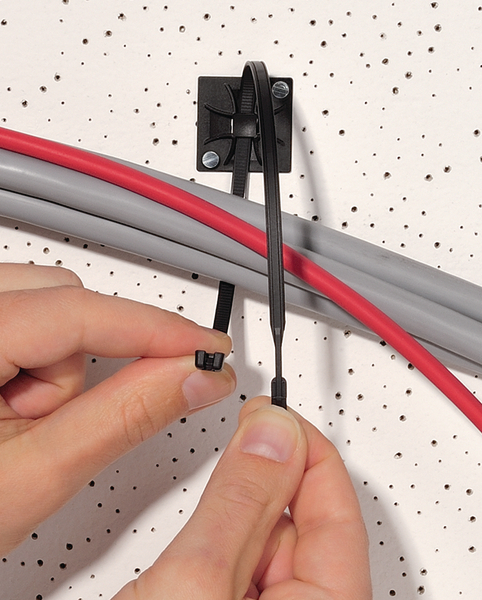

Q-mounts are ideally suited for holding our innovative Q-ties in place. They would perfectly fit to all applications where a reliable and durable fixation is required.

Q-mount Series QM is suitable for following markets and industries

Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Fixing Mount 20 x 20 black
Fixation Method Screw Mounting and Rivet
GLOBAL PART NAME QM20-PA66-BK
Pack Cont. 100pcs.
Package Quantity per Bag
Product Family Q-mount Series QM
Product Group Q-Series
Type QM20-PA66-BK-C1

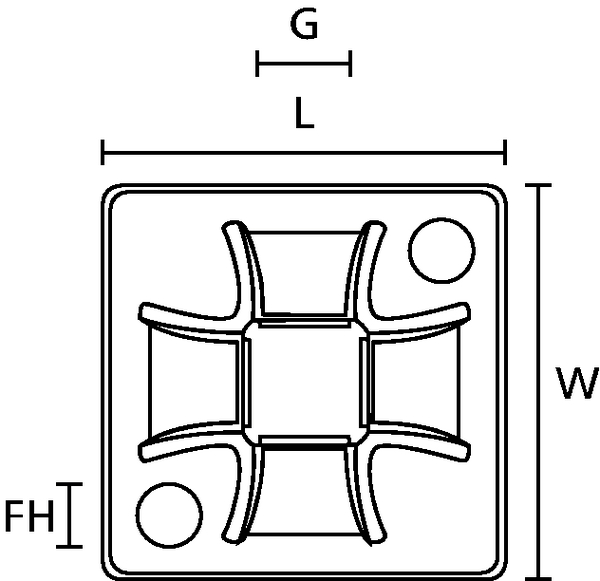

Fixing Hole Centres (F) 13.5mm
Fixing Hole Centres (F) (imperial) 0.53"
for Hole ∅ (FH) 3.1 mm
Height (H) 3.7mm
Length (L) 20.0mm
Strap Width max. (G) 4.0mm
Strap Width max. (G) (imperial) 0.14"
Width (W) 20.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogenfree Yes
Hazardous goods No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B
UL-File Number E65344 [Canada]
EAN / GTIN 4031026413709
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.23m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00184
Packaging 1 - Weight (kg) 0.055kg
Packaging 1 - Width (m) 0.16m
Packaging 3 - Height (m) 0.27m
Packaging 3 - Length (m) 0.6m
Packaging 3 - Qty 12000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0648
Packaging 3 - Weight (kg) 9.9kg
Packaging 3 - Width (m) 0.4m
Packaging Content SKU Unit pieces
ETIM 5.0 EC000449
ETIM 6.0 EC000449
UNSPSC Key 39121703
