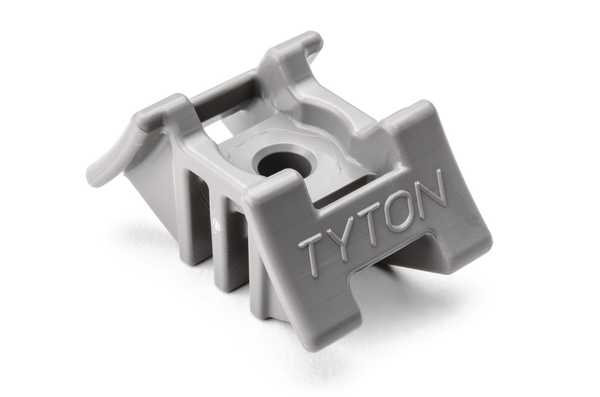

Two Way Saddle Mount for heavy duty applications, for parallel separation S2CM25

S2CM25 with a socket counter bore, Article number: 151-29400

Features

  • For parallel routing of different bundles to avoid wear and chafing
  • Offers secure alignment to the bundle
  • Can be used in combination with heavy duty cable ties
  • Easy maintenance of bundle by simply changing the cable tie
  • Made from impact modified, heat stabilized material

Certifications & Approvals

Application

This heavy duty harness clip helps to fix and secure cables and wires in railway, truck and agricultural vehicle construction, and is also used in the ship building industry.

S2CM25 with a socket counter bore is suitable for following markets and industries

Colour Grey (GY)
Fixation Method Screw Mounting and Rivet
GLOBAL PART NAME S2CM25-PA66HIRHS-GY
Pack Cont. 500
Package Quantity per Bag
Product Family S2CM25 with a socket counter bore
Product Group Two Way Saddle Mount for heavy duty applications, for parallel separation
Type S2CM25-MC3-GY-D1
Bundle ∅ max. 89.0mm
for Hole ∅ (FH) 6.0 mm
Height (H) 23.0mm
Height (H2) 15.0mm
Length (L) 45.0mm
Strap Width max. (G) 12.7mm
Strap Width max. (G) (imperial) 0.5"
Stud ∅ 6.35 mm
Stud ∅ (imperial) 0.25"
Width (W) 30.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous goods No
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Operating Temperature - °C -40 °C to +110 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
EAN / GTIN 4031026312460
Packaging 1 - Height (m) 0.048m
Packaging 1 - Length (m) 0.22m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0018
Packaging 1 - Weight (kg) 4.94kg
Packaging 1 - Width (m) 0.17m
Packaging Content SKU Unit pieces
ETIM 5.0 EC000449
ETIM 6.0 EC000449
UNSPSC Key 39121717
