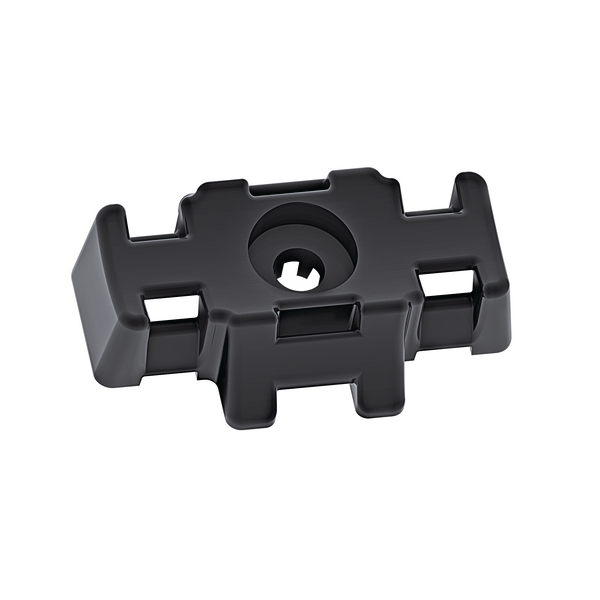

Heavy Duty Mounts for 3-way routing S3SB15CBM8

S3SB15CBM8, Article number: 151-01010

Features

  • For parallel routing of bundles
  • Secure alignment to the bundle due to H-design
  • Easy maintenance of bundle by simply changing cable tie
  • Cable tie head can be moved after bundling

Certifications & Approvals

Application

These 3-way routing saddle mounts are designed to secure up to three bundles for multiple routing and reduce chaving or wear to those bundles. Applicable for various applications within the OEM, mass transit, defence or heavy truck and automotive markets.

S3SB15CBM8 is suitable for following markets and industries

Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Heavy Duty Mount 70x46 mm, Polyamide 6, glass-fibre reinforced (PA6GF30%), black
For Ties X120R, T120R
GLOBAL PART NAME S3SB15CBM8-PA6GF30-BK
Mounting Screw Type M8
Pack Cont. 500pcs.
Package Quantity per Carton
Product Family S3SB15CBM8
Product Group Heavy Duty Mounts for 3-way routing
Type S3SB15CBM8_PA6GF30_E1
Bundle ∅ max. 100mm
Height (H) 18.6mm
Length (L) 70mm
Strap Width max. (G) 9mm
Stud ∅ 15 mm
Width (W) 46mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous goods No
Material Polyamide 6, glass-fibre reinforced (PA6GF30%)
Specifications
EAN / GTIN 4031026489377
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Weight (kg) 9.04kg
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 500
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 9.69kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.235m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 10000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.186
Packaging 4 - Weight (kg) 214.8kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
ETIM 5.0 EC000449
ETIM 6.0 EC000449
