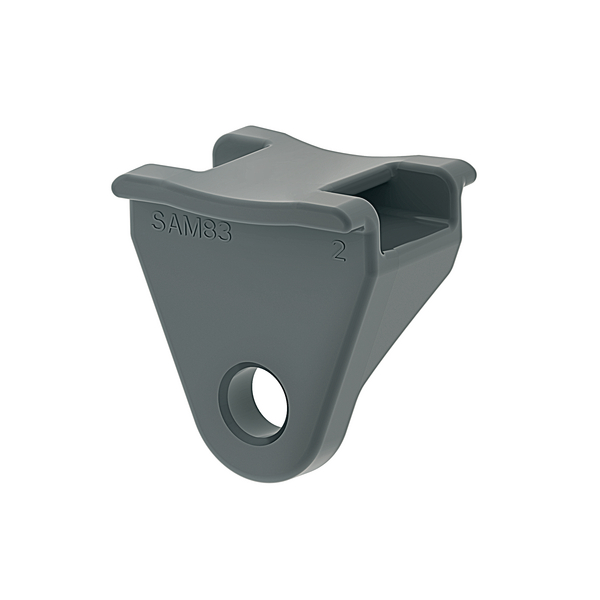

Harness Clip for Heavy Duty Applications, for Screws or threaded Bolts for Edges SAM83

SAM83 with a socket counter bore, Article number: 151-29600

Features

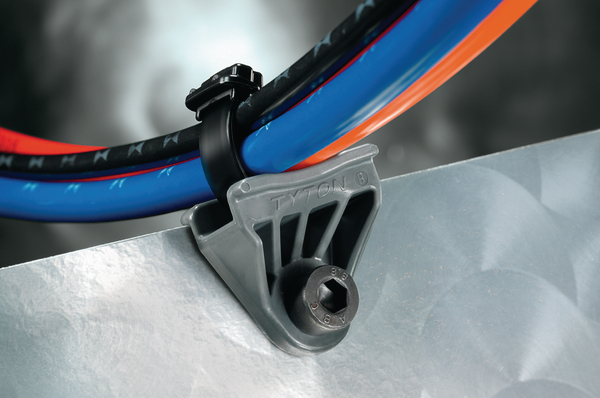

  • Guides bundles securely above sharp edges
  • For threaded bolts or screws
  • Can be used in combination with heavy duty cable ties
  • For cable ties up to 12.7 mm width

Certifications & Approvals

Application

With its heavy duty fixing ability this product offers excellent performance for the truck, ship and construction vehicle industries.

SAM83 with a socket counter bore is suitable for following markets and industries

Colour Grey (GY)
Description Short (BMEcat) (max. 150 characters) Harness clip 34x26 mm, high impact, heat and UV stabilised, grey
Fixation Method Screw Mounting and Rivet
GLOBAL PART NAME SAM83-PA66HIRHSUV-GY
Pack Cont. 500
Package Quantity per Bag
Product Family SAM83 with a socket counter bore
Product Group Harness Clip for Heavy Duty Applications, for Screws or threaded Bolts for Edges
Type SAM8-MC3-GY-D1

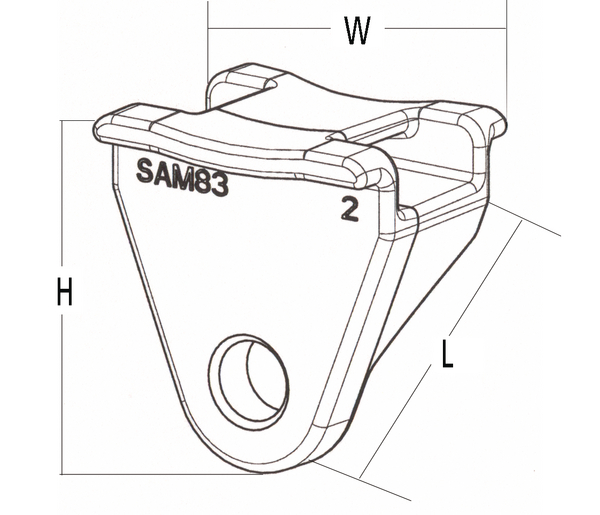

for Hole ∅ (FH) 8.0 mm
Height (H) 35.0mm
Length (L) 34.0mm
Strap Width max. (G) 12.7mm
Strap Width max. (G) (imperial) 0.5"
Stud ∅ 8.0 mm
Stud ∅ (imperial) 0.3125"
Width (W) 26.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous goods No
Material Polyamide 6.6, high impact modified, heat and UV stabilised (PA66HIRHSUV)
Operating Temperature - °C -40 °C to +110 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
EAN / GTIN 4031026312491
Packaging 1 - Height (m) 0.048m
Packaging 1 - Length (m) 0.22m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0018
Packaging 1 - Weight (kg) 5.5kg
Packaging 1 - Width (m) 0.17m
Packaging 3 - Height (m) 0.225m
Packaging 3 - Length (m) 0.605m
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0538
Packaging 3 - Weight (kg) 0.85kg
Packaging 3 - Width (m) 0.395m
Packaging 4 - Height (m) 1.27m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Volume (m³) 1.219
Packaging 4 - Weight (kg) 21.0kg
Packaging 4 - Width (m) 0.8m
Weight 5.5kg
ETIM 5.0 EC000449
ETIM 6.0 EC000449
UNSPSC Key 39121717
