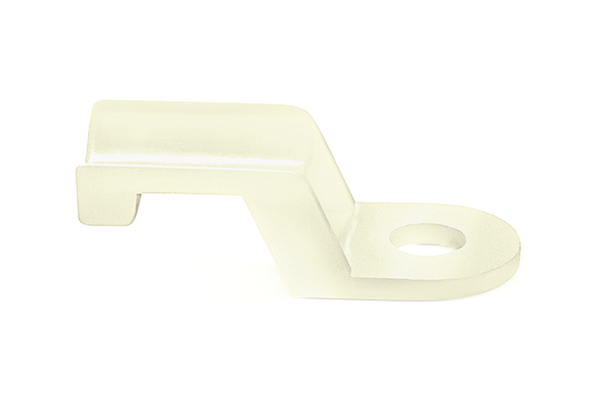

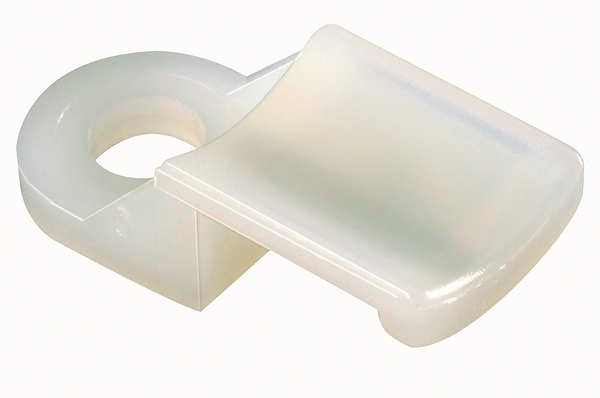

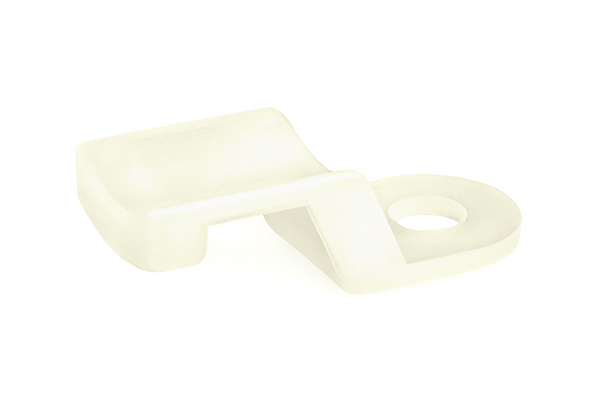

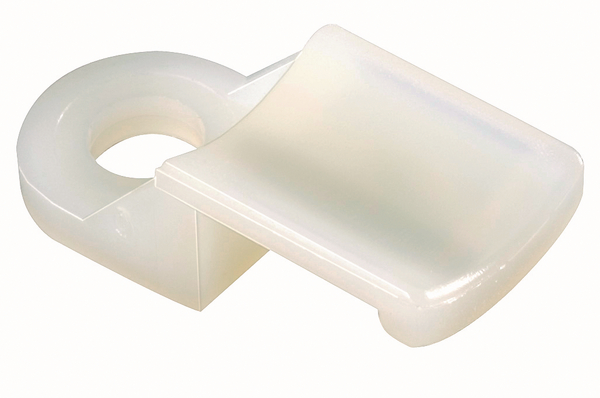

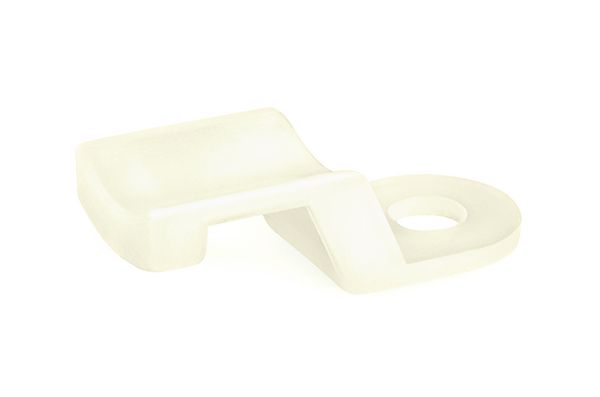

Mounts for Screw Fixing TY3F1

TY-Series Curved Design, screwable, Article number: 151-02156

Features

  • Small overall size for areas with limited mounting space
  • Special design could be used for height adjustment
  • Simple to install with a screw, bolt or rivet
  • Excellent security, particularly in areas of high vibration

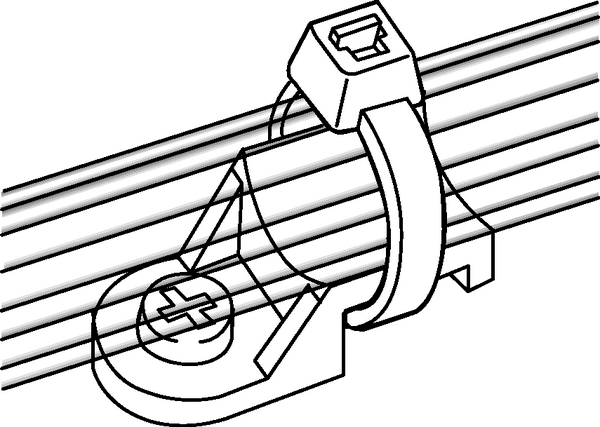

  • Single hole fixing with two-way entry for cable tie

Certifications & Approvals

Application

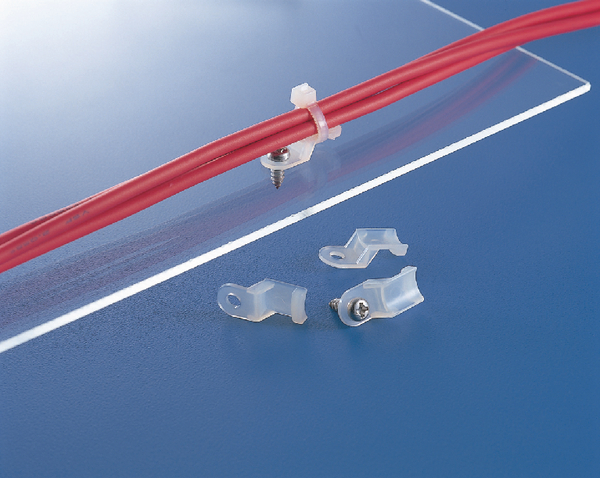

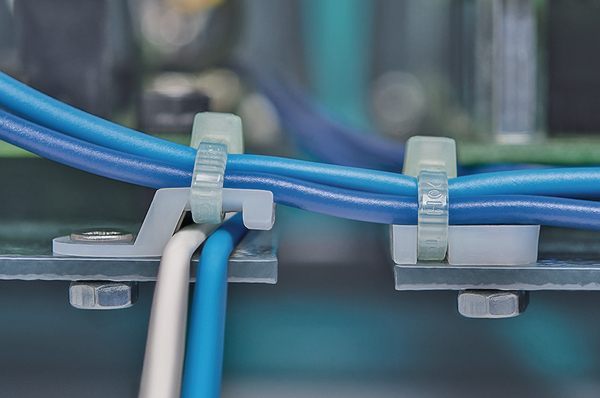

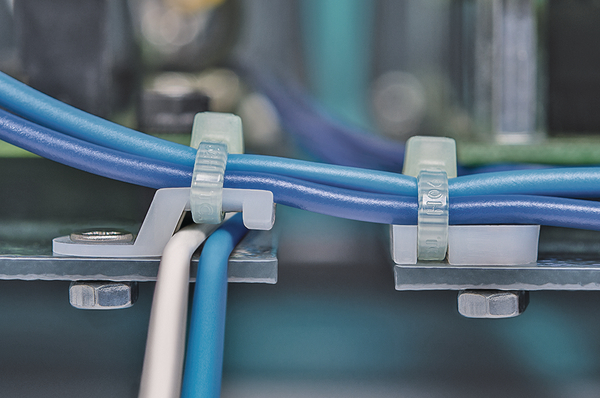

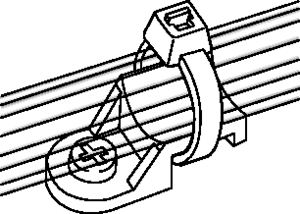

These cable tie mounts are very small in their overall size. They are designed for simple yet robust installation particulary in areas with high vibrations and/or limited space. They are a common fixing method for telecoms equipment, switchgear and control cabinets.

Colour Natural (NA)
Fixation Method Screw Mounting and Rivet
GLOBAL PART NAME TY3F1-PA66-NA
Pack Cont. 1000pcs.
Package Quantity per Bag
Product Family TY-Series Curved Design, screwable
Product Group Mounts for Screw Fixing
Type T3F1_PA66_NA

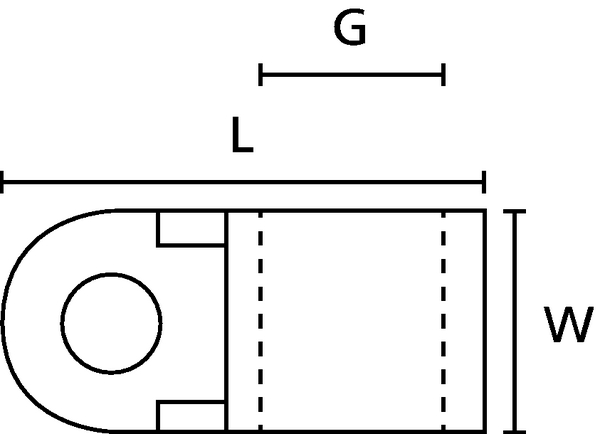

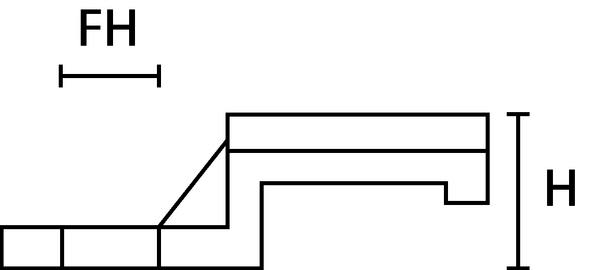

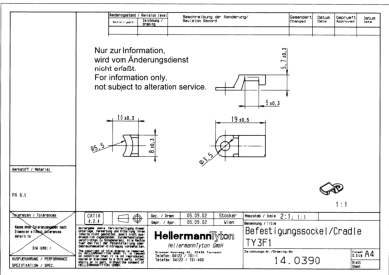

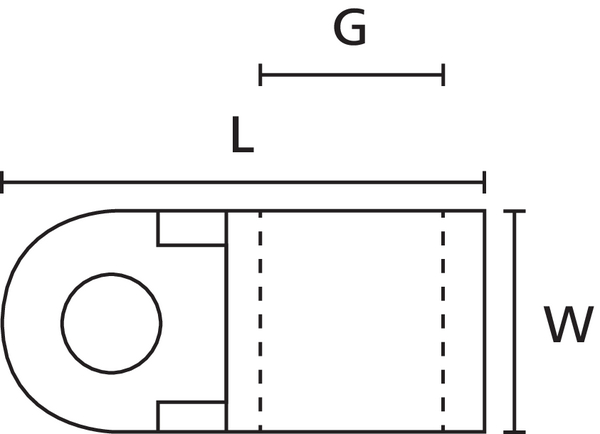

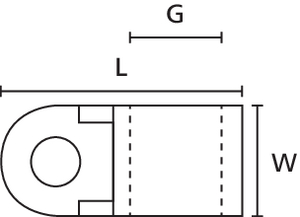

for Hole ∅ (FH) 3.5 mm
Height (H) 5.7mm
Length (L) 19.0mm
Strap Width max. (G) 5.0mm
Width (W) 8.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogenfree Yes
Hazardous goods No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
EAN / GTIN 4031026586489
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.12m
Packaging 1 - Qty 1000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00186
Packaging 1 - Weight (kg) 0.26525kg
Packaging 1 - Width (m) 0.31m
Packaging 3 - Height (m) 0.17m
Packaging 3 - Length (m) 0.56m
Packaging 3 - Qty 15000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0171
Packaging 3 - Weight (kg) 4.19875kg
Packaging 3 - Width (m) 0.18m
Packaging 4 - Height (m) 1.171m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 720000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.124
Packaging 4 - Weight (kg) 222.36kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
ETIM 6.0 EC000449
