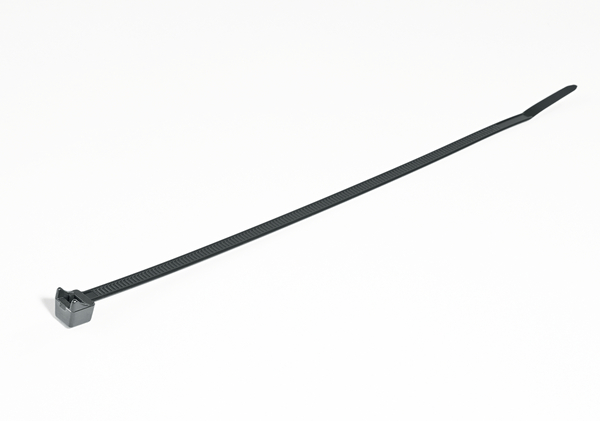

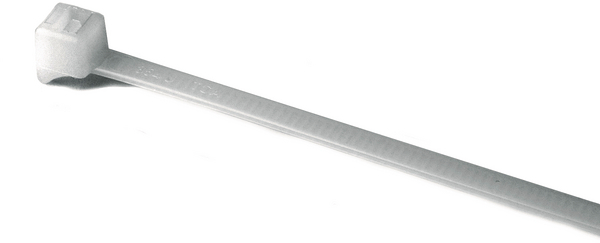

Cable Ties for hose and gaiter CTT20R

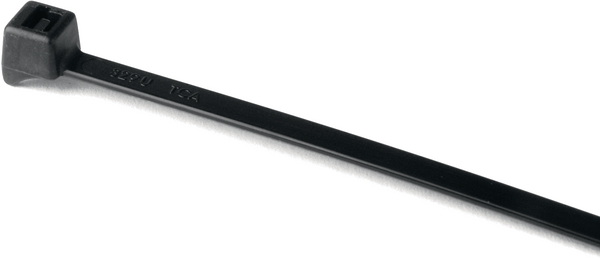

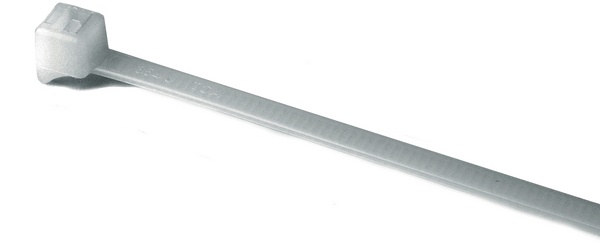

CTT-Series natural and black , Article number: 112-51919

Features

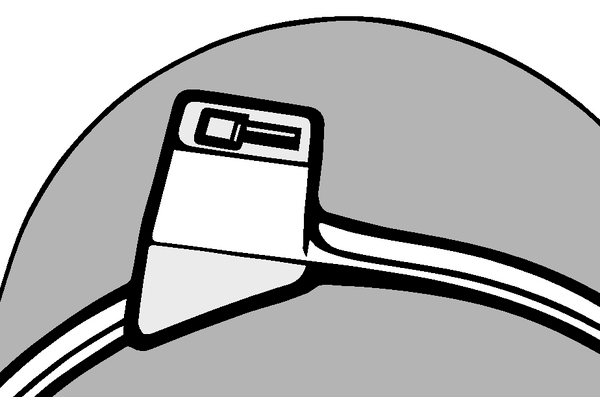

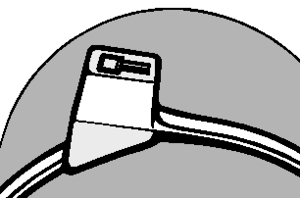

  • Curved design of head offers a good fit to the bundle
  • Inside serration for a positive hold onto bundles
  • Easy application either manually or with a processing tool

Certifications & Approvals

Application

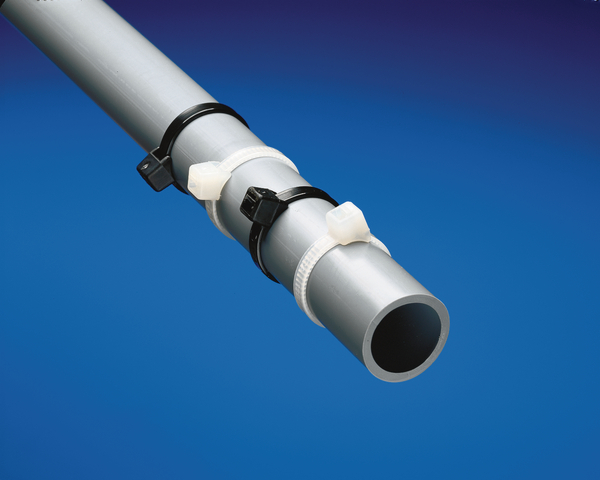

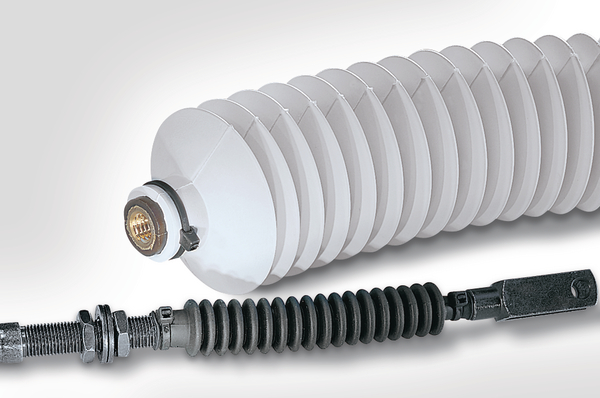

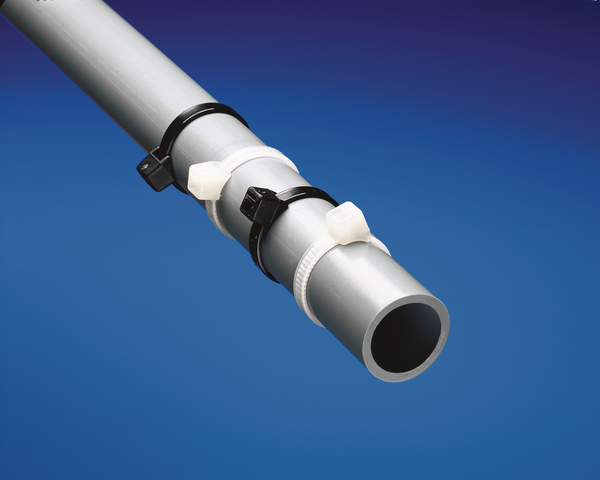

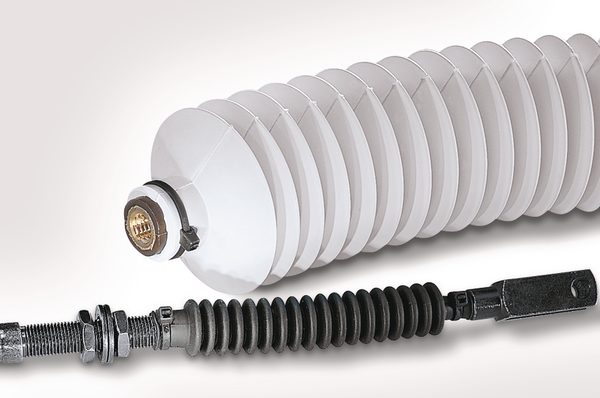

Designed to secure pipes, hoses and gaiters where low pressures are being secured. These ties can be used in many industries, including automotive, white goods manufacturing, medical and construction.

CTT-Series natural and black is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK20, EVO7

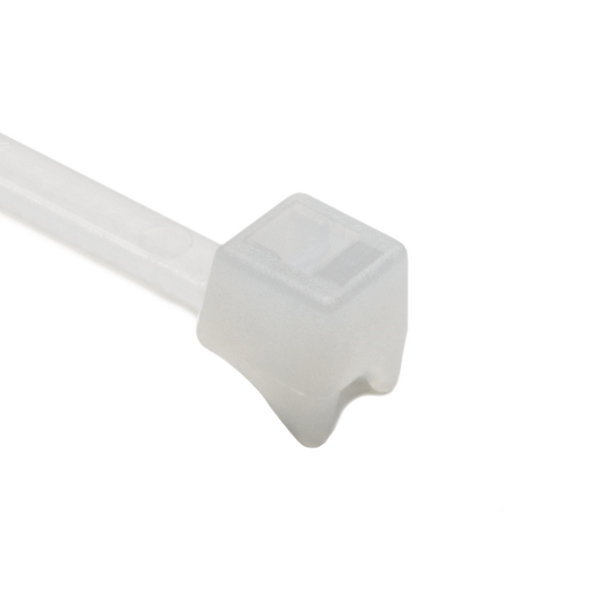

Colour Natural (NA)
Description Short (BMEcat) (max. 150 characters) Cable Tie for hose and gaiter 100x2.5 mm PA66 natural
GLOBAL PART NAME CTT20R-PA66-NA
Identification Plate Position none
Pack Cont. 100pcs.
Package Quantity per Bag
Product Family CTT-Series natural and black
Product Group Cable Ties for hose and gaiter
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type CTT20R.NN3P
Variant Inside Serrated
Bundle ∅ max. 13.0mm
Bundle ∅ min. 1.6mm

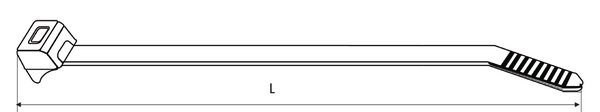

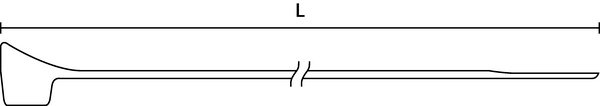

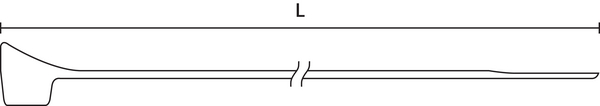

Length (L) 101.6mm
Min.Tensile Strength 90.0N
Thickness (T) 1.1mm
Width (W) 2.5mm
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous good No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B
UL Listed (US and Canada) No
UL OCD link ZODZ.E64139
ZODZ2.E64139
ZODZ7.E64139
ZODZ8.E64139
UL Recognized (US and Canada) Yes
UL-File Number E64139
EAN / GTIN 4031026201788
Packaging 1 - Height (m) 0.02m
Packaging 1 - Length (m) 0.205m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00041
Packaging 1 - Weight (kg) 0.032kg
Packaging 1 - Width (m) 0.1m
Packaging 3 - Height (m) 0.145m
Packaging 3 - Length (m) 0.512m
Packaging 3 - Qty 10000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0234
Packaging 3 - Weight (kg) 3.7kg
Packaging 3 - Width (m) 0.315m
Packaging 4 - Height (m) 1.16m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 280000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.114
Packaging 4 - Weight (kg) 124.6kg
Packaging 4 - Width (m) 0.8m
Weight 0.0007lbs
Weight 0.032kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
UNSPSC Key 39121703
