Cable Ties with open head Q30LR

Q-ties, Article number: 109-00014

17 more images to Q30LR >

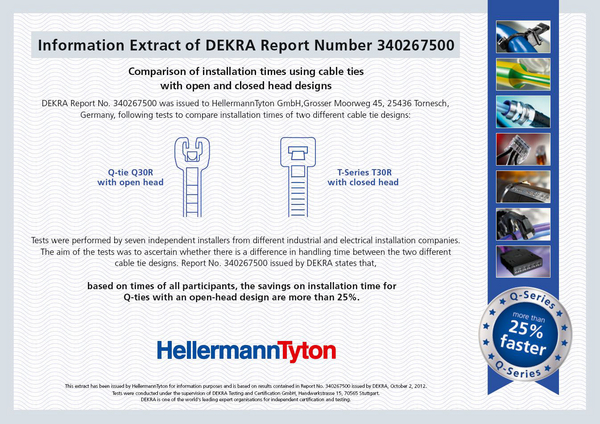

Test conducted by DEKRA, an independent auditing company.

DEKRA company certified up to 25% faster processing time using Q-Series cable ties rather than standard T-Series.

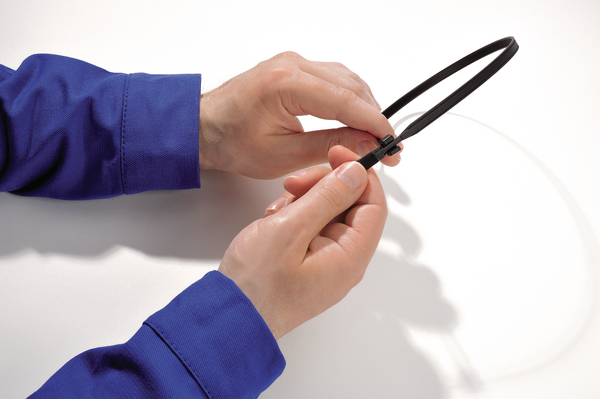

1. Insert the thin part of the cable tie into the open lock head.

2. Pull the tie through the head until the bundle is fixed. 3. Cut off the remaining part of the tie with an application tool.

Q-ties can be used for both temporary and final cable installation.

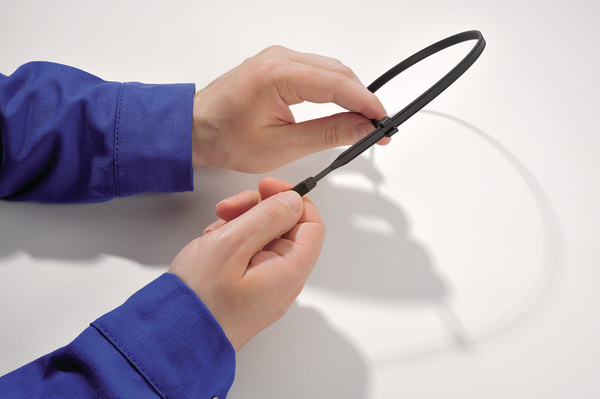

1. Insert tail into lock head and push tail partly in the head

2. To release the tie push tail end slightly out of head.

3. When the installation is complete, the Q-tie can be tightened and cut off - either manually or with an application tool.

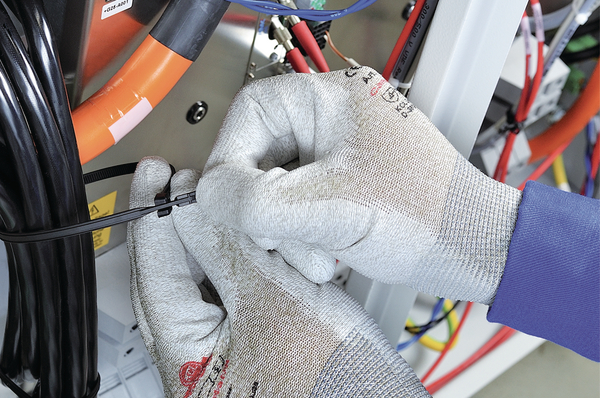

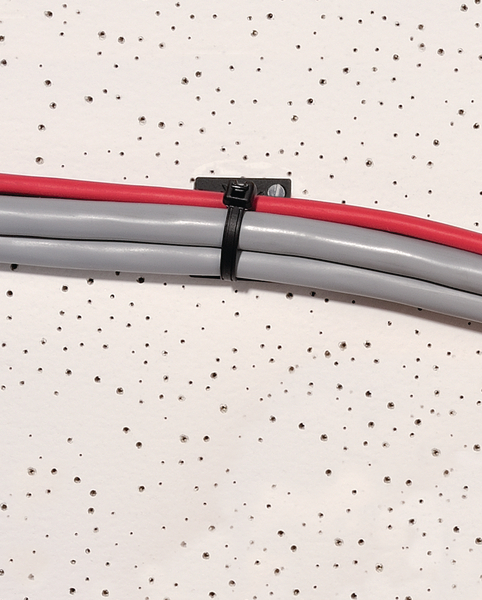

Even under difficult circumstances the Q-tie cable tie is very fast and easy to apply.

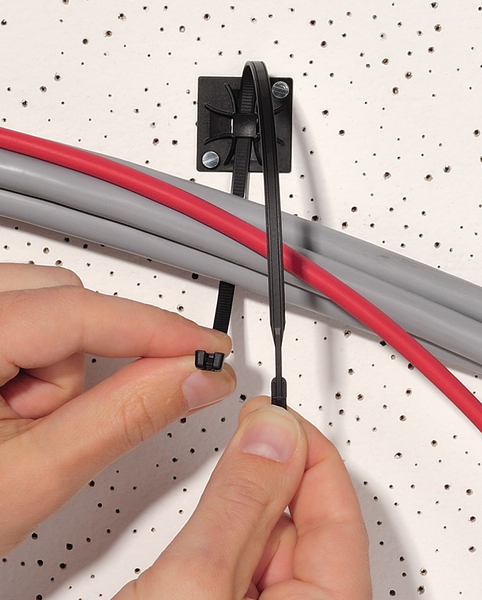

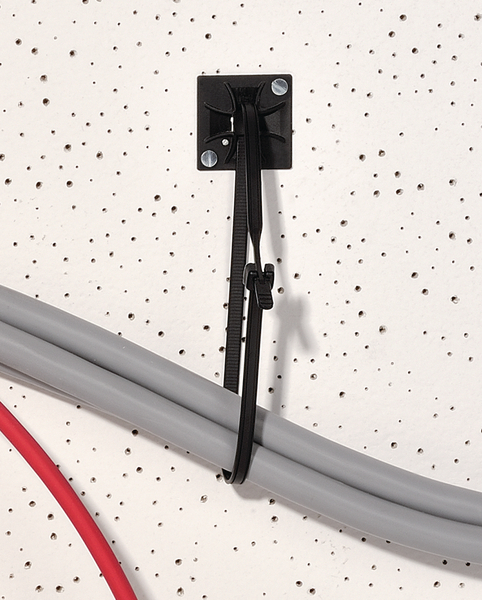

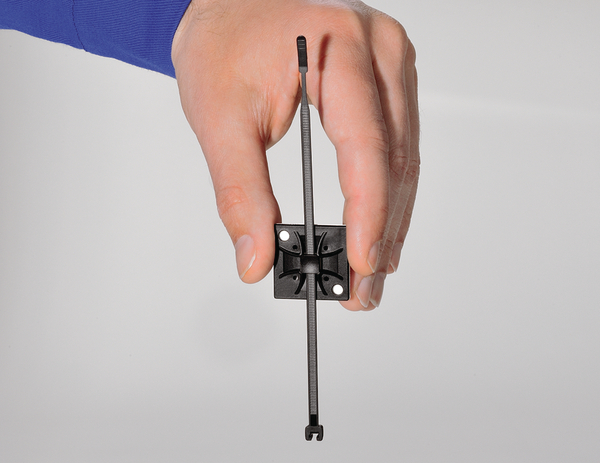

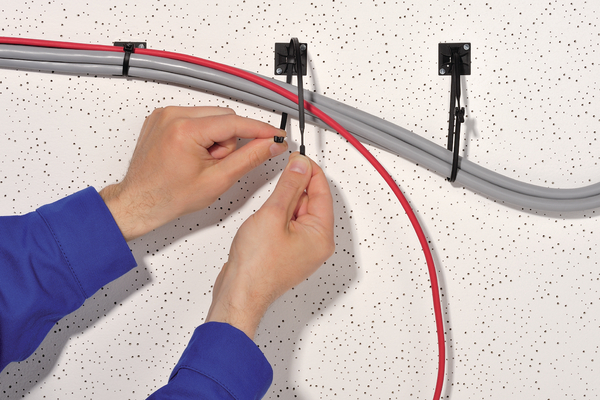

The Q-mount base locks the Q-tie in vertical positon, your hands are free to apply the cables.

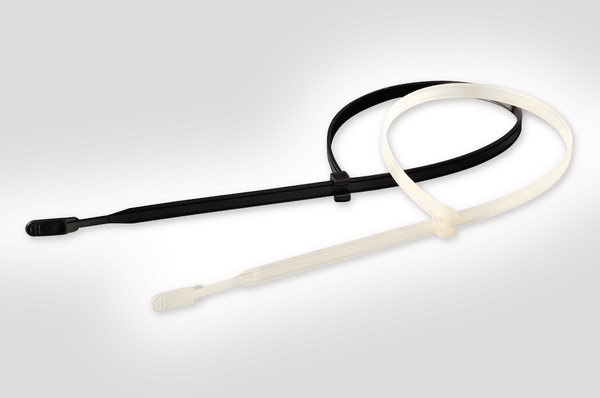

Q-ties in different colours are ideal for marking and bundling in one step.

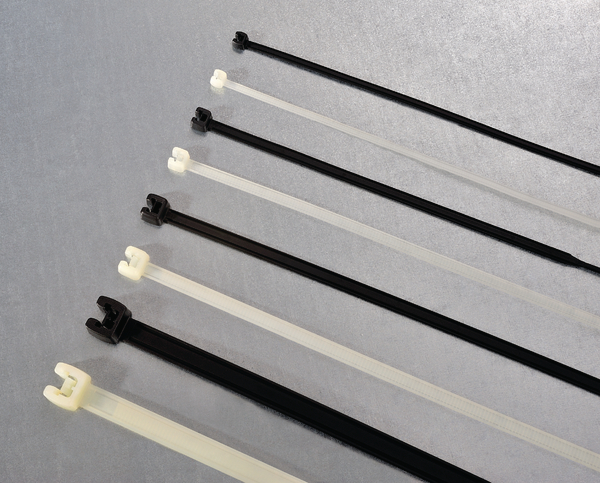

Q-tie cable ties: choose from a wide product range in different materials.

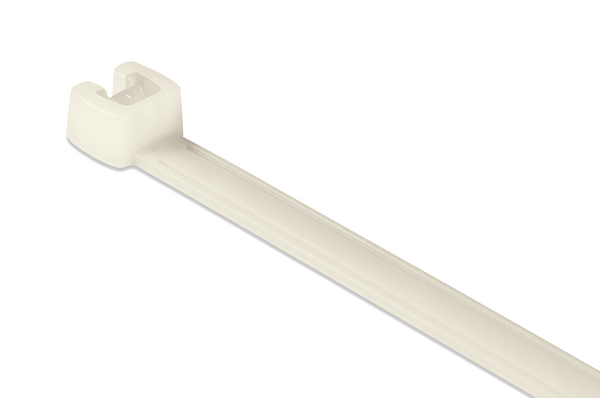

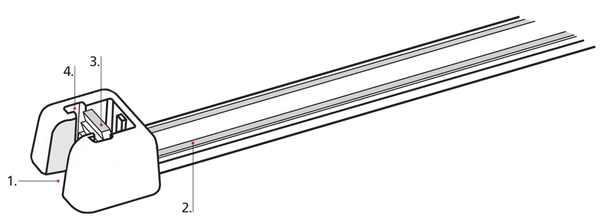

1. Open lock head for quick and easy insertion 2. Two rails on the strap ensure a perfect guidance for the tracks in the head 3. The locking device interacts safely with the serration of the cable tie 4. The tracks prevent a deformation of the head under load.

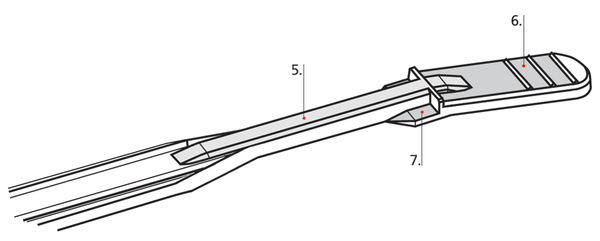

5. The thin part of the cable tie can be simply placed into the open lock head. 6. The large ribbed tail allows a safe and ergonomic installation. 7. Integrated pre locking feature (starts with type Q30).

Features

Open lock head for quick and easy insertion
Integrated pre-locking function
More than 25 % faster in application
Inside serration for a strong hold around bundles
Easy application either manually or with a processing tool

Certifications & Approvals

Application

Q-Series cable ties for bundling and securing cables, pipes a.d hoses. The innovative and effective cable ties enable a simple and quick installation.

Q-ties is suitable for following markets and industries

Automotive Industry
Electrical Installation
Electronics Industry
Industrial Automation
OEM Industry
Panell Building
Solar Energy Sector
Telecommunication
Wire Processing

More products in this product group

Cable Ties with open head >

Base Data

Application Tool	MK3PNSP2, MK3SP, MK7P, MK20, EVO7, EVO7SP
Colour	Natural (NA)
Description Short (BMEcat) (max. 150 characters)	Cable Tie with open head 250x3.6 natural
GLOBAL PART DESCRIPTION	Q30LR-PA66-NA
Identification Plate Position	none
Internet Customer Notice	Please note: Possible delivery delays until May 2018. Double check new minimum order quantity. Please contact our sales office for further information.
Pack Cont.	100pcs.
Package Quantity per	Bag
Product Family	Q-ties
Product Group	Cable Ties with open head
Releasable Closure (Yes/No)	No
Tie Closure	plastic pawl
Type	Q30LR-PA66-NA-C1
Variant	Inside Serrated

Product Dimensions


Bundle ∅ max.	65.0mm
Bundle ∅ min.	3.0mm
Length (L)	250mm
Min.Tensile Strength	130N
Thickness (T)	1.3mm
Width (W)	3.6mm

Material and Specifications

ELV compliant Dir. Art. 4 (2)	YES
Flammability	UL 94 V2
Halogenfree	Yes
Hazardous good	No
Material	Polyamide 6.6 (PA66)
Operating Temperature - °C	-40 °C to +85 °C
Specifications

Logistics and Packaging

EAN / GTIN	4031026410098
Packaging 1 - Height (m)	0.025m
Packaging 1 - Length (m)	0.35m
Packaging 1 - Qty	100
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.00123m³
Packaging 1 - Weight (kg)	0.13kg
Packaging 1 - Width (m)	0.14m
Packaging 3 - Height (m)	0.28m
Packaging 3 - Length (m)	0.58m
Packaging 3 - Qty	8000
Packaging 3 - Type	Carton
Packaging 3 - Volume (m³)	0.0633m³
Packaging 3 - Weight (kg)	10.9kg
Packaging 3 - Width (m)	0.39m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	128000
Packaging 4 - Type	pallet
Packaging 4 - Weight (kg)	195.4kg
Packaging 4 - Width (m)	0.8m
Weight	0.13kg

More Information

ETIM 5.0	EC000046
ETIM 6.0	EC000046
UNSPSC Key	39121703
