28/03/2024

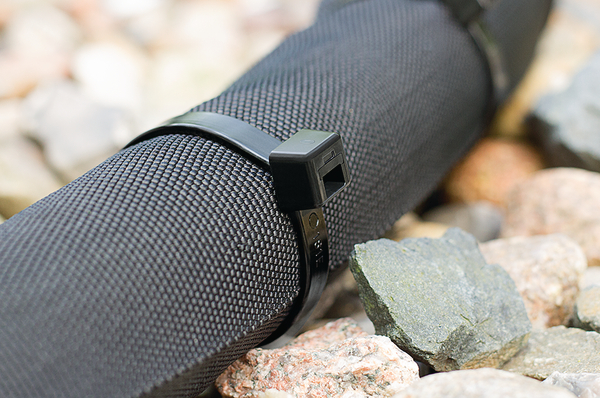

Cable tie inside serrated, 387x7.6mm, Ø3.0-100mm, black, 100pcs.
Art.-No. 111-12032 | T120R(E)-PA66HIR(S)-BK Details

  • Available in a wide range of materials and sizes
  • High tensile strength with very low insertion force
  • Only high quality plastic is used meeting recycling targets
  • Inside serrated cable ties for a strong hold onto bundles
  • Ergonomic bent tail offers quick and simple installation
  • Easy application either manually or with an application tool
Show more

Request your individual offer now

e-Learning
Application These cable ties are used for routing, bundling and securing of cables, pipes and hoses.
Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
Application Tool EVOcut, MK9P, MK9P w/ Upper air, MK10-SB, MK21, EVO9, EVO9SP, EVO9HT
Colour Black (BK)
Identification Plate Position none
Local order number T120R.SB3P
Material Polyamide 6.6, high impact modified, scan black (PA66HIR(S))
Pack Cont. 100pcs.
Package Content packed in Bag
PART DESCRIPTION T120R(E)-PA66HIR(S)-BK
Product Family T-Series in PA66HIR(S)
Product Group Cable Ties for higher impact resistant Polyamide 6.6 ScanBlack
Releasable Closure (Yes/No) No
Short Description Cable Tie 380x7.6 mm HIRS-black
Tie Closure plastic pawl
Variant Inside Serrated
Bundle Diameter max (Metric) 100mm
Bundle ∅ 3.0-100mm
Bundle ∅ min. 3.0mm
Length (L) 387mm
Min.Tensile Strength 535N
Thickness (T) 1.8mm
Weight/Unit 0.00586kg
Width (W) 7.6mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +80 °C, (+105 °C, 500 h)
Specifications
Specifications IEC 60092 series
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660318900
Packaging 1 - Height (m) 0.066m
Packaging 1 - Length (m) 0.444m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00571
Packaging 1 - Weight (kg) 0.586001kg
Packaging 1 - Width (m) 0.195m
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Qty 2000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Weight (kg) 12.52202kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 40000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 271.44kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
