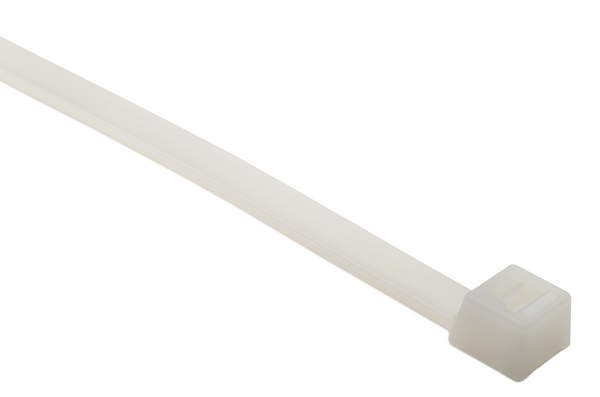

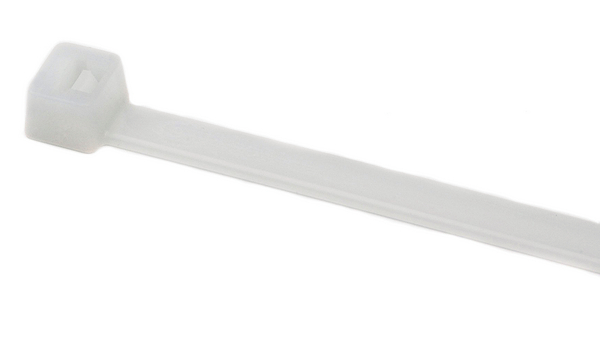

Cable Ties Polyamide 6.6 standard T150R(U)

T-Series in PA66 natural, Article number: 111-15203

Features

  • Available in a wide range of materials and sizes
  • High tensile strength with very low insertion force
  • Only high quality plastic is used meeting recycling targets
  • Inside serrated cable ties for a strong hold onto bundles
  • Ergonomic bent tail offers quick and simple installation
  • Easy application either manually or with an application tool

Certifications & Approvals

Application

These cable ties are used for routing, bundling and securing of cables, pipes and hoses.

T-Series in PA66 natural is suitable for following markets and industries

Application Tool MK6, MK9P, EVO9, EVO9HT
Colour Natural (NA)
Description Short (BMEcat) (max. 150 characters) Cable Tie 365x7.6 natural
Fixation Method None
GLOBAL PART NAME (auto set) T150R(U)-PA66-NA
Identification Plate Position none
Pack Cont. 25
Package Quantity per Bag
Product Family T-Series in PA66 natural
Product Group Cable Ties Polyamide 6.6 standard
Releasable Closure (Yes/No) No
Type T150R(U).NN1P
Variant Inside Serrated
Bundle ∅ max. 104.1mm
Bundle ∅ min. 8.0mm
Cable Tie Head Height (Metric) 9.5mm
Length (L) 390.0mm
Min.Tensile Strength 780.0N
Thickness (T) 1.9mm
Width (W) 8.9mm
CSA Certified No
Flammability UL 94 V2
Halogenfree Yes
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
EAN / GTIN 4031026274829
Packaging 1 - Qty 25
Packaging 1 - Type Bag
ETIM 5.0 EC000046
ETIM 6.0 EC000046
UNSPSC Key 39121703
