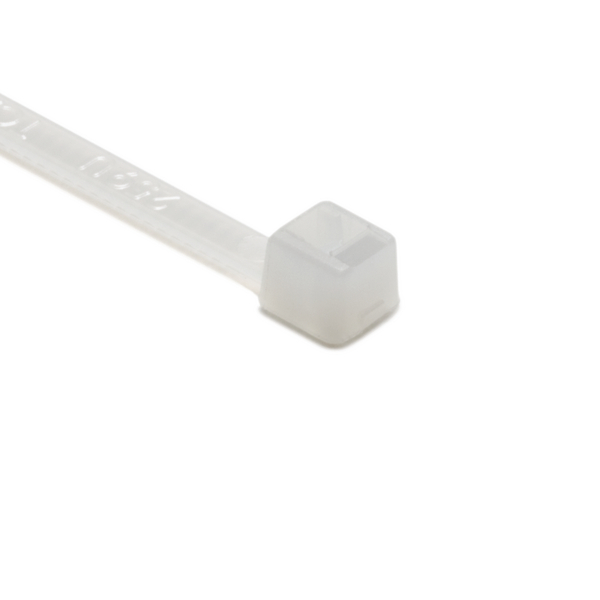

Cable Ties for higher chemical resistance for temperatures up to +115 °C in Polypropylene T18R

T-Series in PP, Article number: 111-01922

Features

  • Polypropylene cable ties for higher chemical reistance
  • Can withstand continuous operating temperatures up to 115 °C

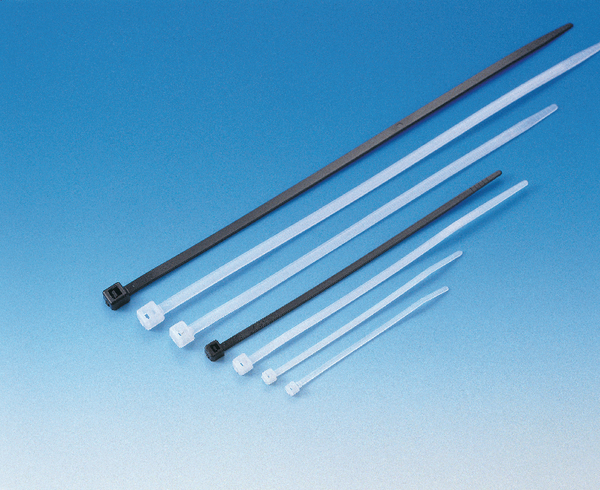

  • Different sizes available in black and natural colour
  • Due to its low density PP cable ties can float on water
  • Less hydroscopic material, almost no water absorbtion

Certifications & Approvals

Application

T-Series cable ties made from Polypropylene (PP) are less hydroscopic and offer a higher chemical resistance and temperature range compared to a standard Polyamide 6.6 (PA66) material. Cable ties from Polypropylene can withstand continuous operating temperatures up to +115 °C. These cable ties are used to bundle and secure cables, pipes and/or hoses.

T-Series in PP is suitable for following markets and industries

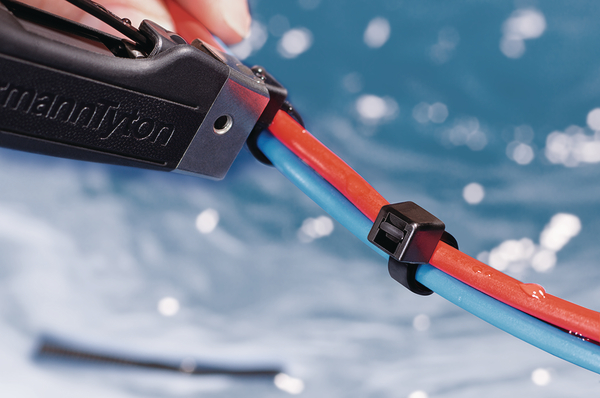

Application Tool MK3PNSP2, MK3SP, MK20, EVO7
Colour Natural (NA)
Description Short (BMEcat) (max. 150 characters) Cable Tie polypropylene 100x2.5 mm natural
Fixation Method None
GLOBAL PART NAME T18R-PP-NA
Identification Plate Position none
Pack Cont. 1000
Package Quantity per Bag
Product Family T-Series in PP
Product Group Cable Ties for higher chemical resistance for temperatures up to +115 °C in Polypropylene
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T18R.PN7P
Variant Inside Serrated
Bundle ∅ max. 22.0mm
Bundle ∅ min. 1.5mm
Length (L) 100.0mm
Min.Tensile Strength 36.0N
Thickness (T) 1.0mm
Width (W) 2.5mm
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogenfree Yes
Hazardous goods No
Material Polypropylene (PP)
Operating Temperature - °C -40 °C to +115 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
EAN / GTIN 4031026311715
Packaging 1 - Height (m) 0.025m
Packaging 1 - Length (m) 0.135m
Packaging 1 - Qty 1000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00049
Packaging 1 - Weight (kg) 0.28kg
Packaging 1 - Width (m) 0.146m
Packaging 3 - Height (m) 0.27m
Packaging 3 - Length (m) 0.6m
Packaging 3 - Qty 10000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0648
Packaging 3 - Weight (kg) 6.1kg
Packaging 3 - Width (m) 0.4m
Packaging Content SKU Unit pieces
Weight 0.28kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
UNSPSC Key 39121703
