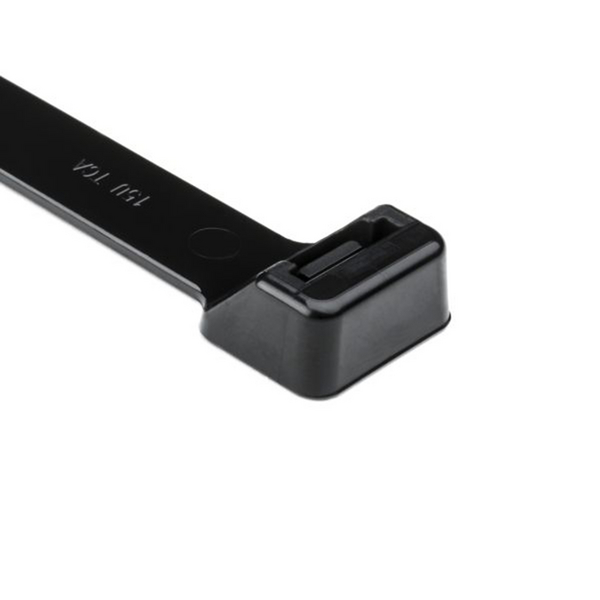

Cable Ties impact modified T255R

T-Series in PA66HIR, Article number: 111-25400

Features

  • Available in a wide range of materials and sizes
  • High tensile strength with very low insertion force
  • Only high quality plastic is used meeting recycling targets
  • Inside serrated cable ties for a strong hold onto bundles
  • Ergonomic bent tail offers quick and simple installation
  • Easy application either manually or with an application tool

Certifications & Approvals

Application

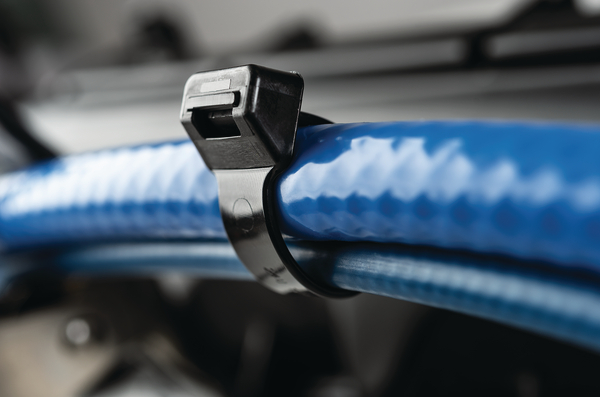

These cable ties are used for routing, bundling and securing of cables, pipes and hoses.

T-Series in PA66HIR is suitable for following markets and industries

Application Tool MK9P, EVO9HT
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Cable Tie 520x12.5 black
Fixation Method None
GLOBAL PART NAME T255R-PA66HIRHSUV-BK
Identification Plate Position none
Pack Cont. 25
Package Quantity per Bag
Product Family T-Series in PA66HIR
Product Group Cable Ties impact modified
Releasable Closure (Yes/No) No
Short Description 20.50", 250 lb., cable tie, black, 25/bag
Tie Closure plastic pawl
Type T255R.IB1P
Variant Inside Serrated
Bundle ∅ max. 127.0mm
Bundle ∅ min. 12.5mm
Length (L) 508.0mm
Min.Tensile Strength 1115.0N
Thickness (T) 1.8mm
Width (W) 12.7mm
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous goods No
Material Polyamide 6.6, high impact modified, heat and UV stabilised (PA66HIRHSUV)
Operating Temperature - °C -40 °C to +110 °C
Specifications
Specifications UL-ZODZ2.E64139
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
EAN / GTIN 4031026266930
Packaging 1 - Height (m) 0.06m
Packaging 1 - Length (m) 0.8m
Packaging 1 - Qty 25
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0096
Packaging 1 - Weight (kg) 0.085kg
Packaging 1 - Width (m) 0.2m
Packaging Content SKU Unit pieces
Weight 3.4kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
UNSPSC Key 39121703
