Cable Ties for thin-walled bundles T18ROS

OS-Series, Article number: 118-00079

Features

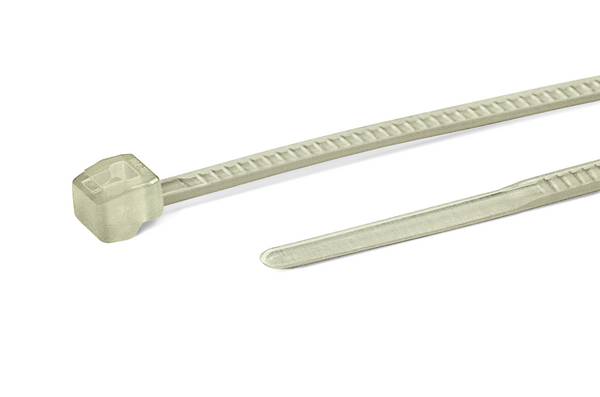

  • Outside serrated cable tie with smooth surface to the bundle
  • Tie follows the contours of the cable bundle perfectly
  • Takes up less space due to curved head design
  • Easy insertion combined with high tensile strength
  • PA46 material for higher temperatures up to +150 °C
  • PA66V0 cable ties fulfill Limited Fire Hazard requirements
  • Easy application either manually or with a processing tool

Certifications & Approvals

Application

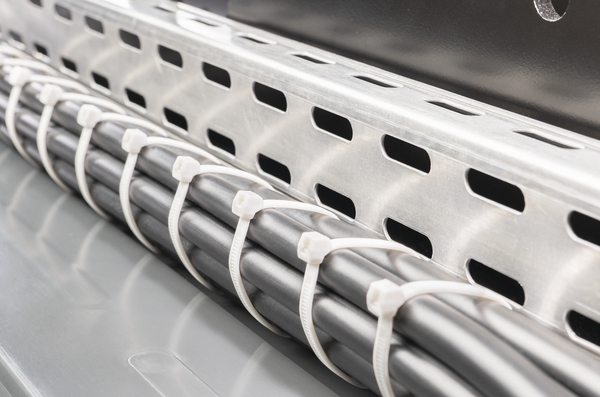

OS-Series cable ties are used in many areas where thin-walled or soft insulation wires and cables are being installed, e. g. automotive and aircraft industry. OS ties made from PA66V0 material are suitable for applications where safety regulations are required, e.g. reduction of smoke and dangerous gases.

OS-Series is suitable for following markets and industries

Application 2 Applications - These ties are used in many areas where thin - walled or soft insulation wires and cable are being installed e.g. mass transit, data installations and electronics.
Application Tool MK3PNSP2, MK3SP, MK20, EVO7
Colour White (WH)
Description Short (BMEcat) (max. 150 characters) Cable Tie outside serrated 100x2.5 mm, PA66V0, white
Features and Benefits The ever increasing demands for tighter bundles in cable installations has led to problems with the conventional inside serrated cable tie design, causing damage to cable insulation, particularly in vibration environments. The Outside Serrated range of ties overcomes these problems offering high tensile strengths, low insertion forces and a smooth surface to the insulation minimising indentation. The curved head allows the tie to follow the contours of the cable and take up less space than other cable tie designs.
Fixation Method None
GLOBAL PART NAME T18ROS-PA66V0-WH
Identification Plate Position none
Pack Cont. 100
Package Quantity per Bag
Product Family OS-Series
Product Group Cable Ties for thin-walled bundles
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T18ROSFR.VN3P
Variant Outside Serrated
Bundle ∅ max. 20.0mm
Bundle ∅ min. 1.6mm
Height (H) 1.0mm
Length (L) 100.0mm
Min.Tensile Strength 80.0N
Thickness (T) 1.0mm
Width (W) 2.5mm
ELV compliant Dir. Art. 4 (2) YES
EN 45545-2 Results R23 HL3, R22 HL2
Flammability Low generation of toxic gases and corrosive acid, Low smoke generation, UL 94 V0
Halogenfree Yes
Hazardous goods No
Limited Fire Hazard Yes
Material Polyamide 6.6 V0 (PA66V0)
Operating Temperature - °C -40 °C to +85 °C
Specifications
Specifications DIN EN 45545-2 (08/2013)
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
EAN / GTIN 5022660332579
Packaging 1 - Height (m) 0.022m
Packaging 1 - Length (m) 0.135m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0004
Packaging 1 - Weight (kg) 0.04kg
Packaging 1 - Width (m) 0.136m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 25000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 10.65kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.165m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 450000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.118
Packaging 4 - Weight (kg) 212.7kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
Weight 0.28kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
UNSPSC Key 39121703
