Cable Ties with 90° angled head V100R

V-Series, Article number: 118-00109

Features

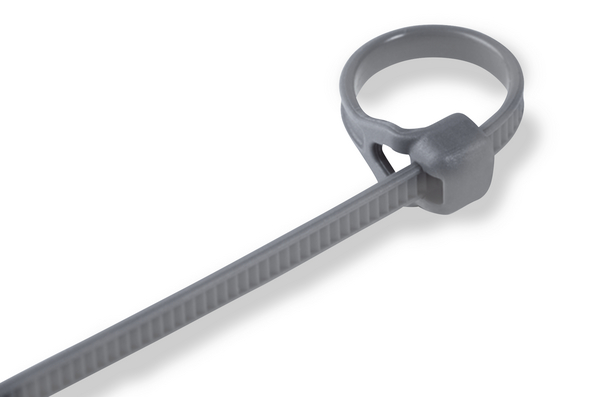

  • Outside serrated cable tie with smooth surface to the bundle

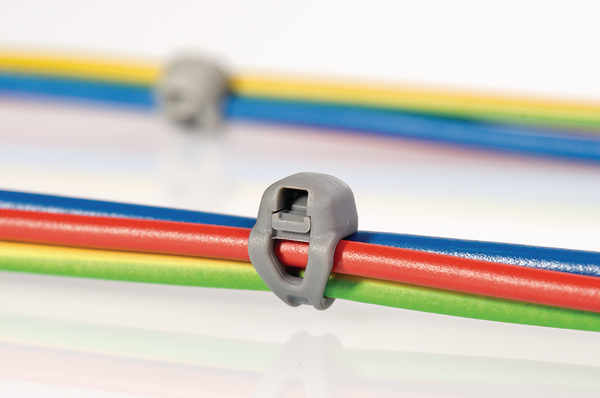

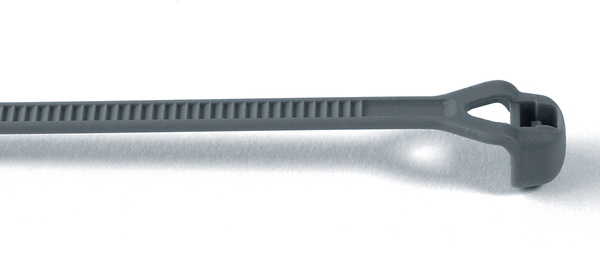

  • Lentiform, 90° angled head

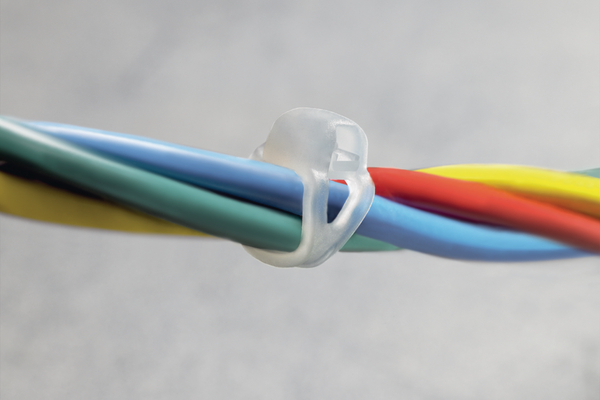

  • Rounded head design minimises the risk of damage to insulation, especially for parallel routed bundles
  • Low profile head takes up less space above the bundle
  • Close fit to the cable bundle
  • Easy insertion and high tensile strength
  • Easy application either manually or with a processing tool

Certifications & Approvals

Application

Due to its low profile head, V-Series outside serrated cable ties are perfectly suited for applications with restricted space, such as camera and alarm systems and automation systems (Remote I/O Systems).
Where bundles are fed through a grommet or ductwork, V-Series provides a practical solution due to its unique rounded design.

V-Series is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK20, EVO7
Colour Grey (GY)
Description Short (BMEcat) (max. 150 characters) Cable Tie with 90° angled head 102.5x2.45 mm, grey
Fixation Method None
GLOBAL PART NAME V100R-PA46-GY
Identification Plate Position none
Pack Cont. 1000pcs.
Package Quantity per Bag
Product Family V-Series
Product Group Cable Ties with 90° angled head
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type V100R-PA46-GY-C1
Variant Outside Serrated
Bundle ∅ max. 20mm
Cable Tie Head Height (Metric) 3.6mm
Cable Tie Head Length (metric) 4.75mm
Cable Tie Head Width (metric) 5.6mm

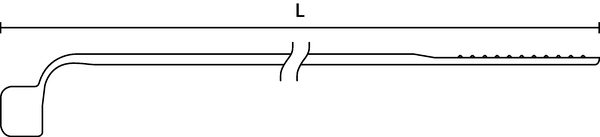

Length (L) 102.5mm
Min.Tensile Strength 100N
Thickness (T) 1mm
Width (W) 2.45mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous goods No
Material Polyamide 4.6 (PA46)
Operating Temperature - °C -40 °C to +150 °C (5000 h), +195 °C (500 h)
Specifications
EAN / GTIN 4031026431093
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 1000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0117
Packaging 1 - Weight (kg) 0.3174kg
Packaging 1 - Width (m) 0.26m
Packaging 3 - Height (m) 0.17m
Packaging 3 - Length (m) 0.56m
Packaging 3 - Qty 8000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0171
Packaging 3 - Weight (kg) 2.7592kg
Packaging 3 - Width (m) 0.18m
Packaging 4 - Height (m) 1.171m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 384000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.124
Packaging 4 - Weight (kg) 153.288kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
ETIM 5.0 EC000046
ETIM 6.0 EC000046
