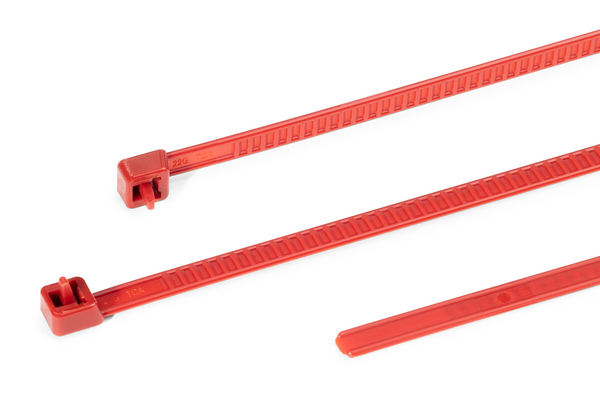

Cable Ties outside serrated for marking LR55R

LR55-Series, Article number: 115-00003

Features

  • Releasable and reusable cable tie available in various colours
  • Extended trigger for quick and easy release of ties
  • Various colours ideal for applications that require colour coding
  • Outside serration, minimising the risk of cable insulation damage

Certifications & Approvals

Application

These releasable and reusable ties are ideal where temporary installation or the addition or removal of cables is required, e.g. logistic identification (colour coding), packaging industries or cable harness manufacturing.

LR55-Series is suitable for following markets and industries

Colour Red (RD)
Description Short (BMEcat) (max. 150 characters) Releasable Cable Tie 195x4.7 mm, red
Fixation Method None
GLOBAL PART NAME LR55R-PA66-RD
Identification Plate Position none
Pack Cont. 25pcs.
Package Quantity per pieces
Product Family LR55-Series
Product Group Cable Ties outside serrated for marking
Releasable Closure (Yes/No) Yes
Tie Closure plastic pawl
Type LR55R.NR1P
Variant Outside Serrated
Bundle ∅ max. 50.0mm
Bundle ∅ min. 2.0mm
Length (L) 195mm
Min.Tensile Strength 245N
Thickness (T) 1.2mm
Width (W) 4.7mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous goods No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
EAN / GTIN 4031026251653
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.12m
Packaging 1 - Qty 25
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00127
Packaging 1 - Weight (kg) 0.0364kg
Packaging 1 - Width (m) 0.265m
Packaging 2 - Height (m) 0.17m
Packaging 2 - Length (m) 0.288m
Packaging 2 - Qty 1000
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0087
Packaging 2 - Weight (kg) 1.586kg
Packaging 2 - Width (m) 0.178m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 4000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 6.994kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.235m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 80000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.186
Packaging 4 - Weight (kg) 161.2kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
Weight 0.72kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
