Cable Ties inside serrated with kickdown lever REL140

REL-Series, Article number: 131-21410

Features

  • Releasable and reusable cable tie available in black and natural colours (including UV-resistant)

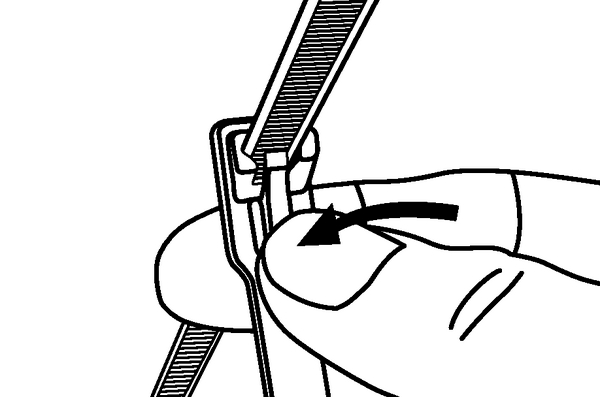

  • Simple and effective release mechanism

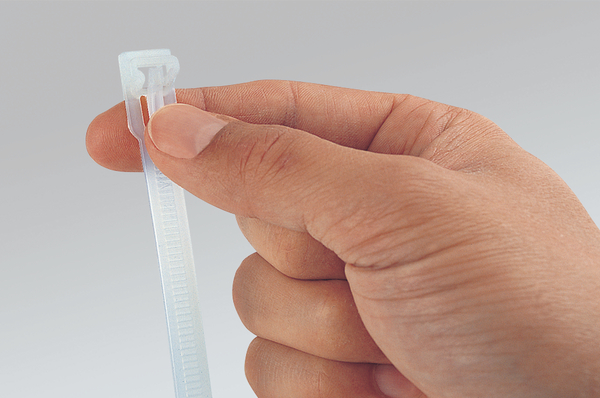

  • Can be opened quickly and easily with one hand
  • Inside serrated cable tie

Certifications & Approvals

Application

The REL-Series is ideally used in applications where changes are anticipated and a tie need to be opened and closed repeatedly. The release mechanism of an REL cable tie allows simple and quick opening with only one hand. UV resistant cable ties manufactured from PA66W are recommended for outdoor applications.

REL-Series is suitable for following markets and industries

Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Releasable Cable Tie 150x7.6 mm, black
Fixation Method None
GLOBAL PART NAME REL140-PA66-BK
Identification Plate Position none
Pack Cont. 100pcs.
Package Quantity per pieces
Product Family REL-Series
Product Group Cable Ties inside serrated with kickdown lever
Releasable Closure (Yes/No) Yes
Tie Closure plastic pawl
Type REL140.NB3P
Variant Outside Serrated
Bundle ∅ max. 35.0mm
Bundle ∅ min. 6.0mm
Length (L) 150mm
Min.Tensile Strength 200N
Thickness (T) 1.2mm
Width (W) 7.6mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous goods No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B
UL-File Number E64963 [Canada]
EAN / GTIN 5022660019319
Packaging 1 - Height (m) 0.205m
Packaging 1 - Length (m) 0.592m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.04794
Packaging 1 - Weight (kg) 0.18kg
Packaging 1 - Width (m) 0.395m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 4000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 7.85kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.235m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 80000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.186
Packaging 4 - Weight (kg) 178.0kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
Weight 2.2kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
