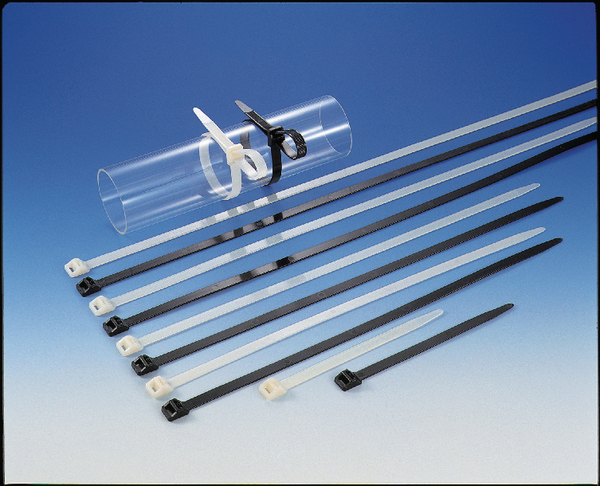

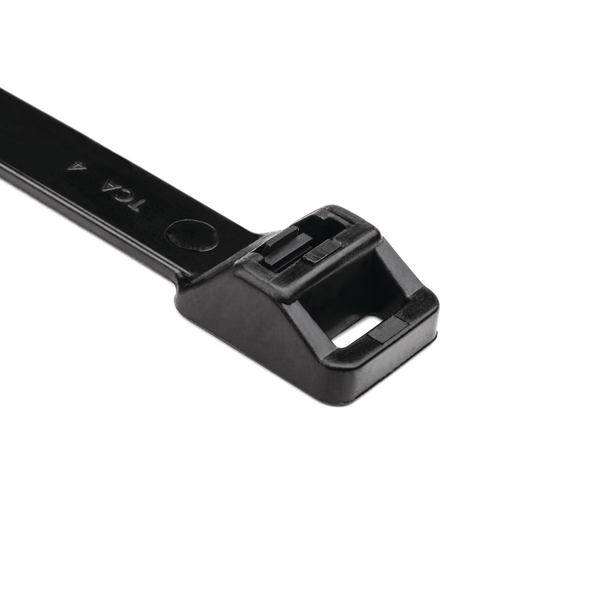

Cable Ties inside serrated with tuckaway RT250M

RT250-Series, Article number: 131-75610

Features

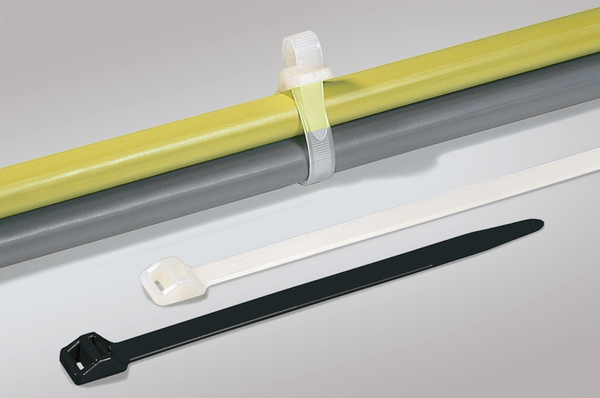

  • Releasable and reusable cable tie
  • Suitable for larger and/or heavier bundles

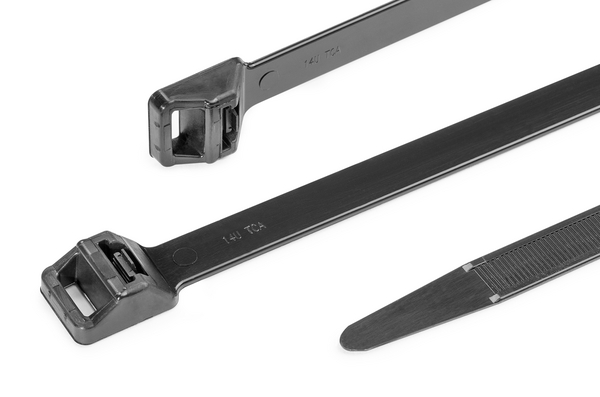

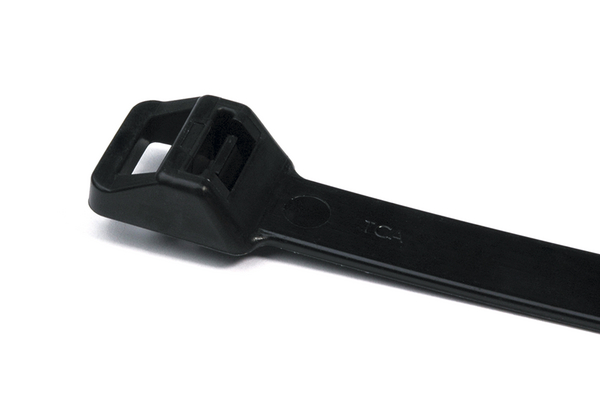

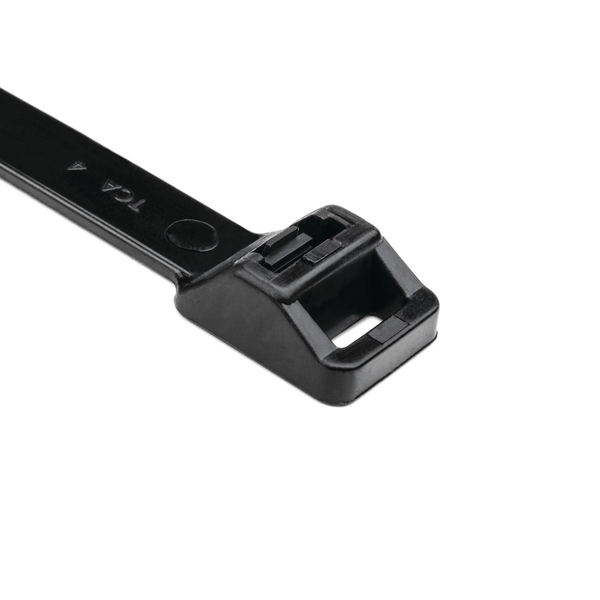

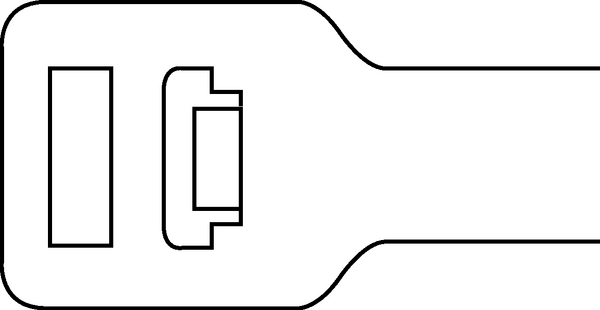

  • Eyelet allows excess tail to be tucked neatly away
  • Available in black and natural colour

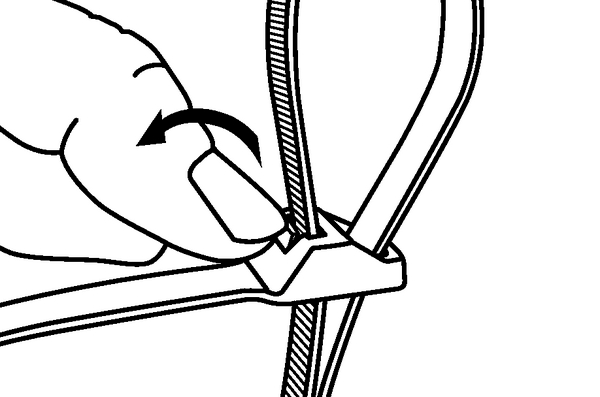

  • Extended trigger for simple and quick release of ties
  • Protected trigger to avoid accidental release
  • RT250 cable ties are inside serrated

Certifications & Approvals

Application

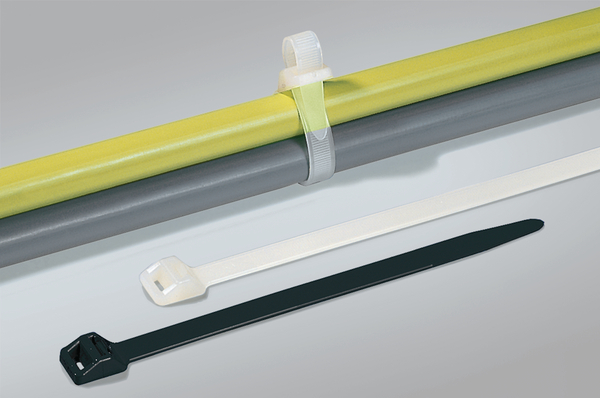

Used in a wide range of industries, these releasable and reusable ties are ideal where temporary installation or the addition or removal of cables is required, e.g. theatres, outdoor events or harness work.

RT250-Series is suitable for following markets and industries

Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Cable Tie with Tuckaway 565x12.5 mm PA66 black
Fixation Method None
GLOBAL PART NAME RT250M-PA66-BK
Identification Plate Position none
Pack Cont. 25pcs.
Package Quantity per Bag
Product Family RT250-Series
Product Group Cable Ties inside serrated with tuckaway
Releasable Closure (Yes/No) Yes
Tie Closure plastic pawl
Type RT250M.NB1P
Variant Inside Serrated
Bundle ∅ max. 150.0mm
Bundle ∅ min. 12.0mm
Length (L) 565.3mm
Min.Tensile Strength 1115.0N
Thickness (T) 2.2mm
Width (W) 12.5mm
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous goods No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B, IEC 60092 series, IEC 62275:2006
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL-File Number E64139
EAN / GTIN 4031026115719
Packaging 1 - Height (m) 0.043m
Packaging 1 - Length (m) 0.602m
Packaging 1 - Qty 25
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00365
Packaging 1 - Weight (kg) 0.325kg
Packaging 1 - Width (m) 0.141m
Packaging 3 - Height (m) 0.225m
Packaging 3 - Length (m) 0.845m
Packaging 3 - Qty 500
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0456
Packaging 3 - Weight (kg) 15.155kg
Packaging 3 - Width (m) 0.24m

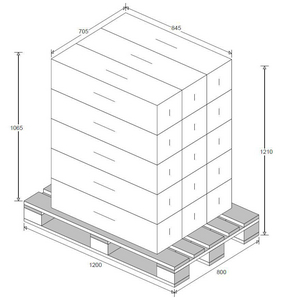

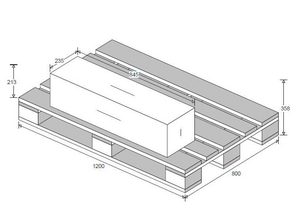

Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 7500
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 248.325kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
Weight 13kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
UNSPSC Key 39121703
