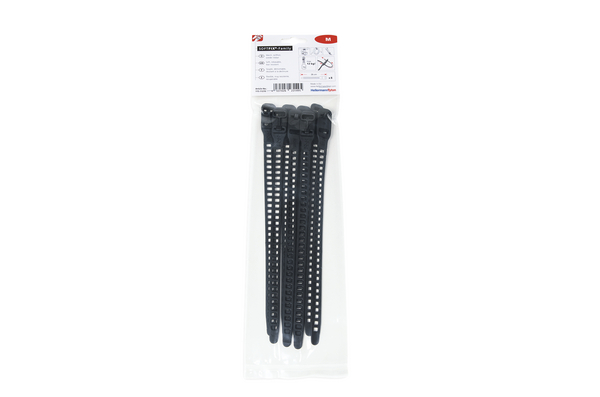

Cable Ties without serration in flexible TPU SOFTFIX M

SOFTFIX-Family, Article number: 115-11270

Features

  • Elastic and flexible cable ties with rounded and smooth edges
  • Releasable and reusable
  • Double slotted head with fixation pawl
  • Flexibility ensures steady and evenly distributed pressure
  • Tight fixation even in vertical position: prevent sliding down or loosing bundle
  • Suitable for moving elements and vibrating applications like windmills, machines, robotics, pulsating tubing and conduits
  • Ideal use for temporarily fixation for presentations, concerts, theatres, exhibitions
  • Long lifetime when used indoor
  • Remains flexible even at cold temperatures (-20°C)

Certifications & Approvals

Application

The SRT range offers solutions to numerous bundling applications. The soft, flexible material makes these ties particularly suitable for use on data and fibre-optic cables. The elasticity of the material makes them ideal for securing young trees to support poles, and other applications within the gardening and landscaping industry.

SOFTFIX-Family is suitable for following markets and industries

Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Cable Ties without serration in flexible TPU 260x11.0 black
GLOBAL PART DESCRIPTION SOFTFIX M-TPU-BK
Identification Plate Position none
Pack Cont. 8pcs.
Package Quantity per Pack
Product Family SOFTFIX-Family
Product Group Cable Ties without serration in flexible TPU
Releasable Closure (Yes/No) Yes
Short Description The elasticity of the tie means that in applications such as securing trees, it is not necessary to loosen the tie and re-tighten it as frequently as with other products - the tie will grow with the tree.
Tie Closure ladder style
Type SRT26011-TPU-BK-Y
Variant No Serration
Bundle ∅ max. 65.0mm
Length (L) 260mm
Min.Tensile Strength 123N
Thickness (T) 2.3mm
Width (W) 11.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogenfree Yes
Hazardous good No
Material Thermoplastic Polyurethane (TPU)
Operating Temperature - °C -40 °C to +85 °C
Specifications
EAN / GTIN 4031026231495
Packaging 1 - Height (m) 0.02m
Packaging 1 - Length (m) 0.37m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00074
Packaging 1 - Weight (kg) 0.066kg
Packaging 1 - Width (m) 0.1m
Weight 0.066kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
