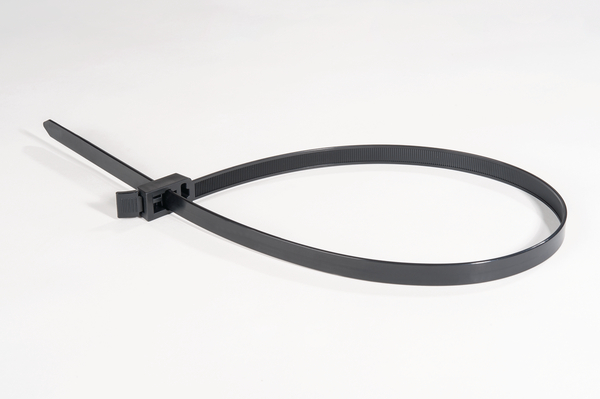

Cable Tie with quick release mechanism  SpeedyTie (RTT750HR)

SpeedyTie®, Article number: 115-00030

Features

  • Releasable cable tie
  • Removable, patented "Speedy-Click" rapid closure
  • Bears loads of up to 888 N (approx. 90 kg)
  • 750 mm long for use in a wide variety of applications
  • Easy to handle when wearing protective gloves
  • Available in signal yellow and black

Certifications & Approvals

Application

The versatility of the SpeedyTie® means that it is suitable for a multitude of applications, such as electrical installations, heating and ventilation, construction, exhibitions and trade fairs. Whether it is used for permanent or temporary solutions, the SpeedyTie® provides a helping hand in every situation.

SpeedyTie® is suitable for following markets and industries

Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Releasable Cable Tie 752x13 mm, black
Fixation Method None
GLOBAL PART NAME (auto set) SpeedyTie (RTT750HR)-PA66HIR(S)-BK
Identification Plate Position none
Pack Cont. 5pcs.
Package Quantity per pieces
Product Family SpeedyTie®
Product Group Cable Tie with quick release mechanism
Releasable Closure (Yes/No) Yes
Tie Closure plastic pawl
Type RTT750HR.WB900
Variant Inside Serrated
Bundle ∅ max. 210.0mm
Bundle ∅ min. 40.0mm
Length (L) 752.0mm
Min.Tensile Strength 888.0N
Thickness (T) 1.9mm
Width (W) 13.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous goods No
Material Polyamide 6.6, high impact modified, scan black (PA66HIR(S))
Operating Temperature - °C -40 °C to +80 °C
Specifications
EAN / GTIN 4031026253701
Packaging 1 - Height (m) 0.02m
Packaging 1 - Length (m) 0.485m
Packaging 1 - Qty 5
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00175
Packaging 1 - Weight (kg) 0.147kg
Packaging 1 - Width (m) 0.18m
Packaging 3 - Height (m) 0.17m
Packaging 3 - Length (m) 0.56m
Packaging 3 - Qty 60
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0171
Packaging 3 - Weight (kg) 1.984kg
Packaging 3 - Width (m) 0.18m
Packaging 4 - Height (m) 1.171m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 2880
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.124
Packaging 4 - Weight (kg) 116.232kg
Packaging 4 - Width (m) 0.8m
Weight 0.147kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
UNSPSC Key 39121703
