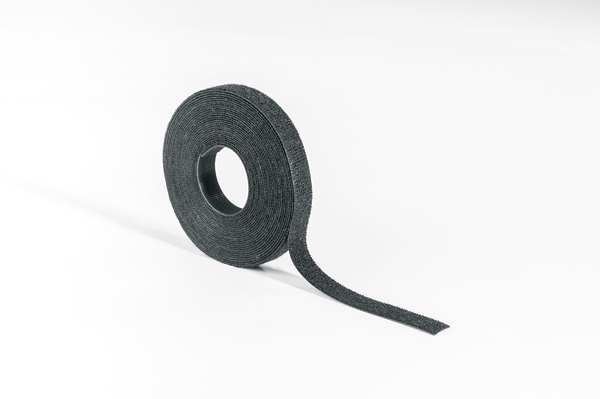

Hook and Loop Ties TEXTIE 5M

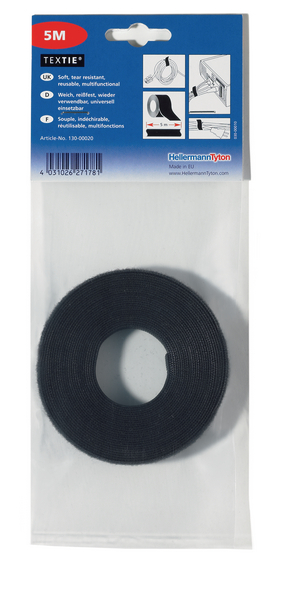

TEXTIE-Series, Article number: 130-00020

Features

  • Quick and simple to use without tools
  • Re-usable up to 400 times

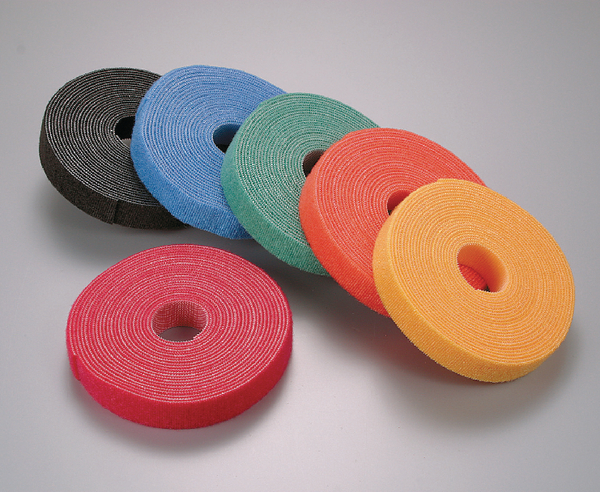

  • Various colours for easy identification
  • For indoor and outdoor use
  • Can be attached to the bundle permanently
  • Resistant to ageing, no corrosion

Certifications & Approvals

Application

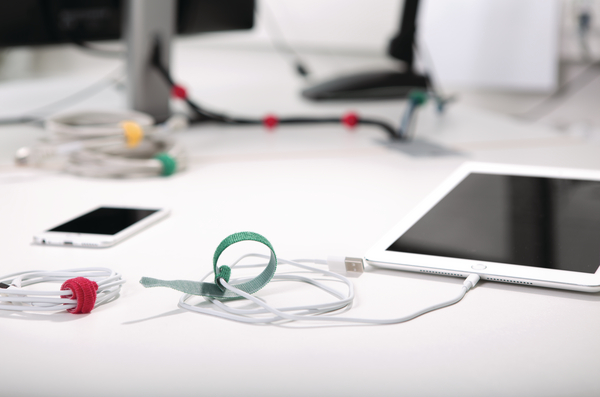

The TEXTIE-Series offers a soft bundling method and is ideal for use on telephone cables, optical fibre and network cables. These cable ties can be reopened and reused up to 400 times. A perfect solution for temporary installations and cable management for stage equipment, at outdoor events or for prototype harnessing. Maybe it is simply used in private or office applications. TEXTIE cable ties are available in various colours and can be used to colour-code cables and/or wires.

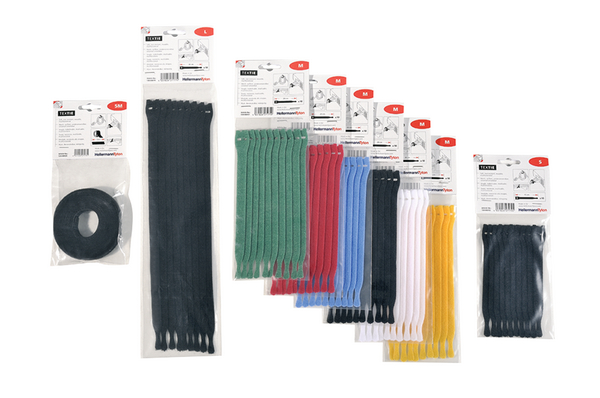

TEXTIE-Series is suitable for following markets and industries

Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Hook and Loop Tie 5000x12.5 on reel black
GLOBAL PART DESCRIPTION TEXTIE 5M-PA66/PP-BK
Identification Plate Position none
Pack Cont. 1pc.
Package Quantity per Reel
Product Family TEXTIE-Series
Product Group Hook and Loop Ties
Releasable Closure (Yes/No) Yes
Tie Closure hook and loop
Type TEXTIE-5M-PA/PP-BK-I1
Variant Grip Tie

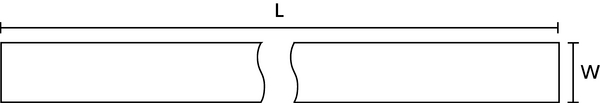

Length (L) 5000mm
Thickness (T) 1.3mm
Width (W) 12.5mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous good No
Material Polyamide 6.6 (PA66), Polypropylene (PP)
Material Hook Polypropylene (PP)
Material Loop Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Shortcut Material Hook PP
Shortcut Material Loop PA66
Specifications
EAN / GTIN 4031026271781
Minimum Order Quantity 1
Packaging 1 - Height (m) 0.014m
Packaging 1 - Length (m) 0.21m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00029
Packaging 1 - Weight (kg) 0.045kg
Packaging 1 - Width (m) 0.1m
Packaging 3 - Height (m) 0.27m
Packaging 3 - Length (m) 0.6m
Packaging 3 - Qty 120
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0648
Packaging 3 - Weight (kg) 8.72kg
Packaging 3 - Width (m) 0.4m
Weight 0.045kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
