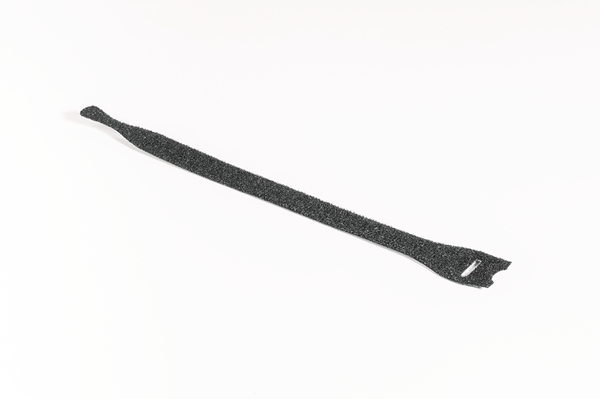

Hook and Loop Ties TEXTIE M

TEXTIE-Series, Article number: 130-00013

Features

  • Quick and simple to use without tools
  • No waste
  • Resistant to ageing with no corrosion
  • Re-usable up to 400 times
  • Various colours for easy identification of multiple cable runs

Certifications & Approvals

Application

As cables use thinner and softer insulation, and as fibre optic cables become more common, there is a need for a 'soft' method of bundling. TEXTIEs are ideal for use on telephone cables, optical fibre and network cables. In addition, they are perfect for use in temporary installations such as theatre stage construction or the manufacture of prototype cable harnesses.
TEXTIEs can also be used in many domestic and office applications, too.

TEXTIE-Series is suitable for following markets and industries

Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Hook and Loop Tie 200x12.5 black
Fixation Method None
GLOBAL PART NAME TEXTIE M-PA66/PP-BK
Identification Plate Position none
Pack Cont. 10pcs.
Package Quantity per Bag
Product Family TEXTIE-Series
Product Group Hook and Loop Ties
Releasable Closure (Yes/No) Yes
Tie Closure hook and loop
Type TEXTIEM-BK
Variant Grip Tie
Bundle ∅ max. 60.0mm
Length (L) 200mm
Thickness (T) 1.3mm
Width (W) 12.5mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous goods No
Material Polyamide 6.6 (PA66), Polypropylene (PP)
Material Hook Polypropylene (PP)
Material Loop Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Shortcut Material Hook PP
Shortcut Material Loop PA
Specifications
EAN / GTIN 4031026271712
Minimum Order Quantity 1
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 1
Packaging 1 - Type Pack
Packaging 1 - Volume (m³) 0.0012
Packaging 1 - Weight (kg) 0.022kg
Packaging 1 - Width (m) 0.1m
Packaging 3 - Height (m) 0.27m
Packaging 3 - Length (m) 0.6m
Packaging 3 - Qty 150
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0648
Packaging 3 - Weight (kg) 6.604kg
Packaging 3 - Width (m) 0.4m
Packaging Content SKU Unit Pack
Weight 0.018kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
