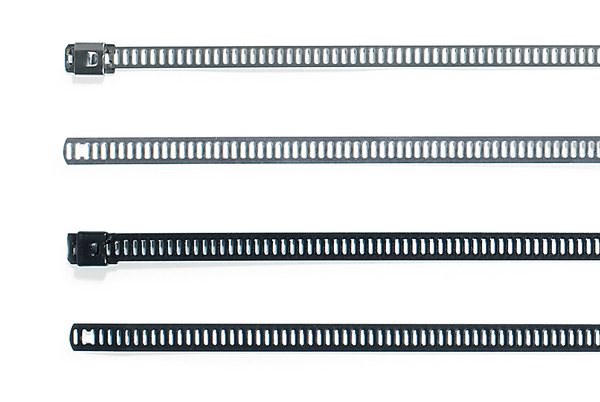

Cable Ties with Raster Locking and Coating MAT8SSC7

MAT-C, Article number: 111-92004

Features

  • MAT ties are similar to conventional 'plastic' cable ties
  • Work on ratchet system
  • Available in type 316 stainless steel

Certifications & Approvals

Application

The MAT range of stainless steel cable ties can be used in the most arduous of conditions or where the additional security, strength and fire resistance of a metal fixing is required. Used in all industries from Mass Transit, Ship building, oil rigs, mining, & chemical to theatres and exhibition halls. In the event of a fire, cables will remain securely held in place and will not fall to block emergency exits.

MAT-C is suitable for following markets and industries

Application Tool KST-STG200, MK9SST, MK9PSST
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Stainless Steel Cable Tie with Raster Locking and Coating 230x7.0 mm black
Features and Benefits The MAT range of stainless steel cable ties can be used in the most arduous of conditions or where the additional security, strength and fire resistance of a metal fixing is required. Type MAT cable ties are cable ties which can be put on in stages (locking in the strip).
Fixation Method None
GLOBAL PART NAME MAT8SSC7-SS316/SP-BK
Identification Plate Position none
Pack Cont. 100pcs.
Package Quantity per Bag
Product Family MAT-C
Product Group Cable Ties with Raster Locking and Coating
Releasable Closure (Yes/No) No
Tie Closure ladder style
Type MAT8SSC7.M3P
Variant No Serration
Bundle ∅ max. 60mm
Bundle ∅ min. 10.0mm
Length (L) 230mm
Min.Tensile Strength 445N
Thickness (T) 0.4mm
Width (W) 7.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability non-burning (except coating)
Halogenfree Yes
Hazardous goods No
Limited Fire Hazard Yes
Material Stainless Steel (SS316), Polyester (SP)
Operating Temperature - °C -80 °C to +538 °C
Operating Temperature Coating -50 °C to +150 °C
Specifications
EAN / GTIN 5022660019630
Packaging 1 - Height (m) 0.032m
Packaging 1 - Length (m) 0.233m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00071
Packaging 1 - Weight (kg) 0.315kg
Packaging 1 - Width (m) 0.095m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 4000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 13.25kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.235m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 80000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.186
Packaging 4 - Weight (kg) 286.0kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
Weight 3.15kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
