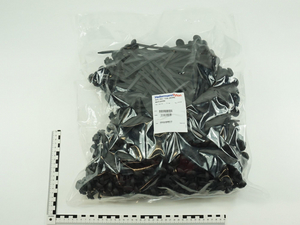

Cable tie outside serrated for direct fixation, 200x7.6mm, Ø50.0mm, black, 500pcs.
Art.-No. 150-20396 | BHT203M-PA66HS-BK Details

  • Both sides of the cable tie serrated
  • BHT-Series with round head for larger bearing area
  • BHT375 for centred position
  • CT- and DE-Series with small squared head for restricted space areas
  • Tensioning with application tool
Show more

Request your individual offer now

Application Using a single hole these 'chassis ties' are widely used in the automotive, truck and heavy equipment markets. Ideal for applications which have access to both sides of the hole - for example truck frames.
Application Tool EVOcut, MK9P, MK9P w/ Upper air, MK10-SB, MK21, EVO9SP, EVO9HT
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
Colour Black (BK)
Identification Plate Position none
Key product features for direct fixation
Local order number BHT203M.HB6P
Material Polyamide 6.6, heat stabilised (PA66HS)
Material Head Polyamide 6.6, heat stabilised (PA66HS)
Pack Cont. 500pcs.
Package Content packed in Bag
PART DESCRIPTION BHT203M-PA66HS-BK
Product Family BHT-Series with round head
Product Group Cable ties for single hole application
Releasable Closure (Yes/No) No
Short Description Chassis Tie 200x7.5 mm, heat stabilised, black
Tie Closure plastic pawl
Variant Outside Serrated
Bundle Diameter max (Metric) 50.0mm
Bundle ∅ 50.0mm
for Hole ∅ (FH) 8.5 - 14.0 mm
Height (H) 7.5mm
Length (L) 200mm
Min.Tensile Strength 700N
Weight/Unit 0.0025kg
Width (W) 7.6mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Nato number 5975-12-409-7856
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
Specifications
Vibrations absorbing No
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026119700
Packaging 1 - Height (m) 0.1m
Packaging 1 - Length (m) 0.47m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.02562
Packaging 1 - Weight (kg) 1.293597kg
Packaging 1 - Width (m) 0.545m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 3000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 8.581582kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 36000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 124.008kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
