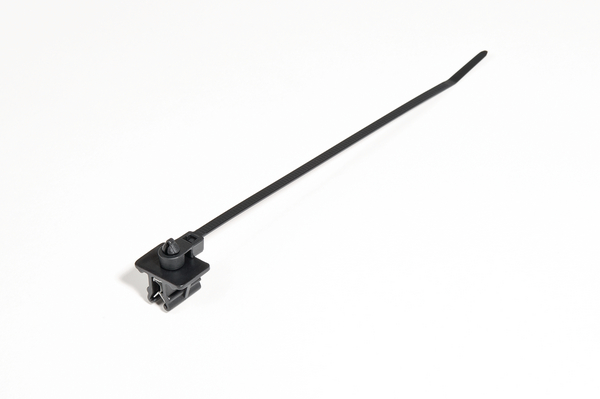

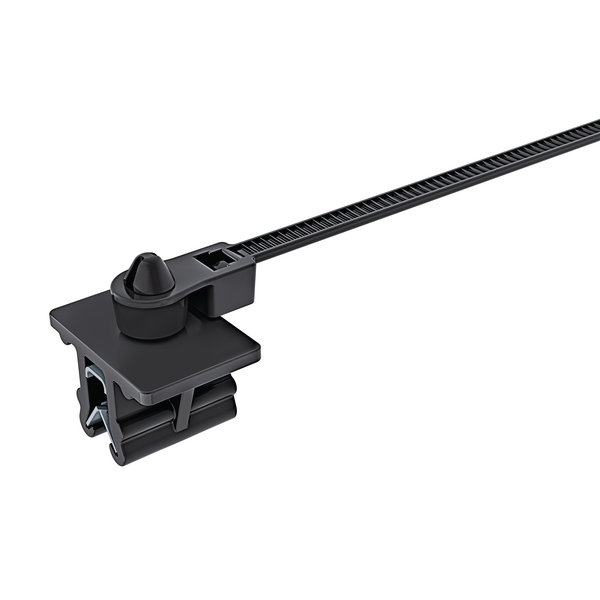

2-Piece Fixing Ties for Edges, twistable CBT30MR

CBT30MR for max. bundle diameter 32.0 mm, rotatable 360 °, Article number: 156-00049

Features

  • Pre-assembled 2-piece fixing tie with EdgeClip
  • Easy to assemble by hand
  • Cable tie head can be moved after bundling
  • For edges of 1 – 2.5 mm or 1 – 3 mm

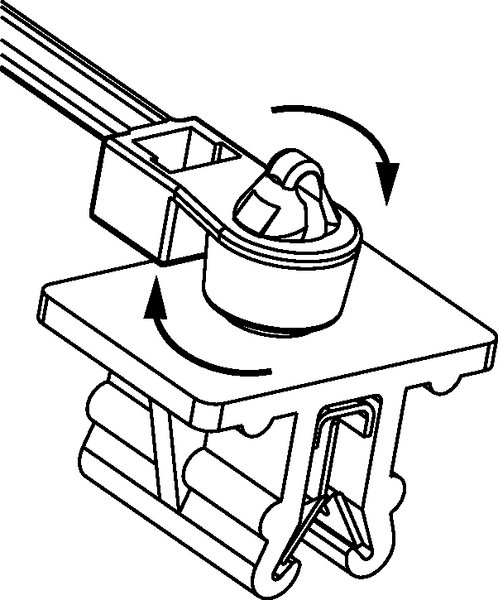

  • Can be rotated to the desired position during mounting

Certifications & Approvals

Application

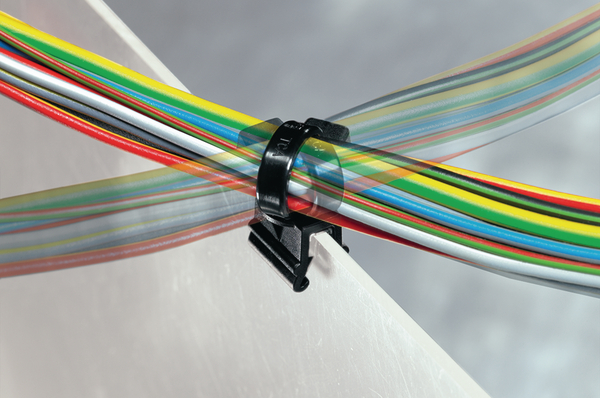

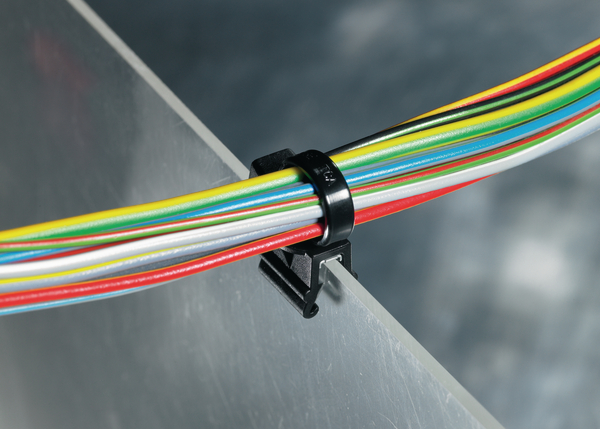

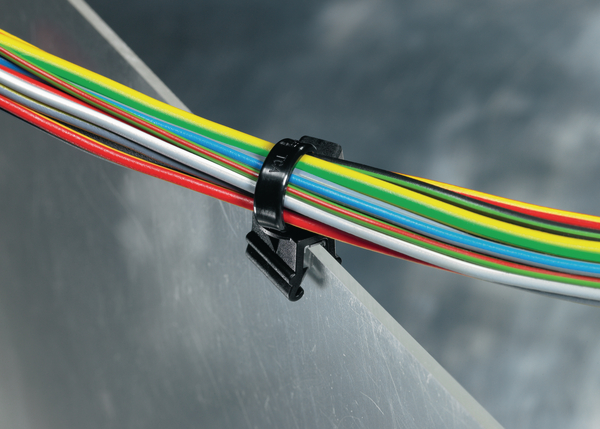

These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel buidling and electrical industry.

CBT30MR for max. bundle diameter 32.0 mm, rotatable 360 ° is suitable for following markets and industries

Application Tool MK3PNSP2, MK20, EVO7
Colour Black (BK)

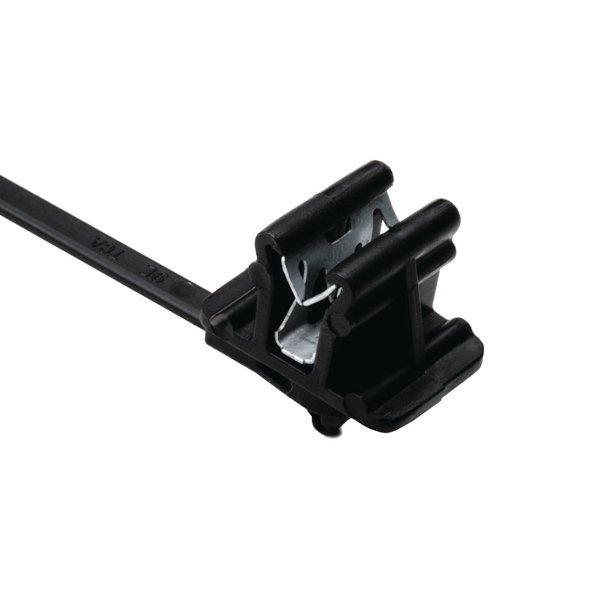

Description These EdgeClips are also mounted simply by pushing them onto an edge. A twistable EdgeClip is the ideal solution whenever flexible routing of cable bundles is required. The cable route can even be modified post-installation. The clips are available in 90° and 360° models for use with different types of cable tie. On the CBT30MR the bundle runs at the side of the clip, on the CBTO50R it runs over the centre of the clip.
Features and Benefits These EdgeClips are also mounted simply by pushing them onto an edge. A twistable EdgeClip is the ideal solution whenever flexible routing of cable bundles is required. The cable route can even be modified post-installation. The clips are available in 90° and 360° models for use with different types of cable tie. On the CBT30MR the bundle runs at the side of the clip, on the CBTO50R it runs over the centre of the clip.
Fixation Method Edge Clips with tie
GLOBAL PART NAME CBT30MR-PA66HS/POM-BK
Identification Plate Position none
Pack Cont. 500pcs.
Package Quantity per Carton
Product Family CBT30MR for max. bundle diameter 32.0 mm, rotatable 360 °
Product Group 2-Piece Fixing Ties for Edges, twistable
Type CBT30MR.MC2B6P
Variant Inside Serrated
Wings on clip base (Yes / No) NO
Bundle ∅ max. 32.0mm
Bundle ∅ min. 1.5mm

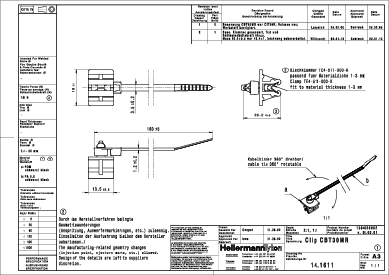

for Panel Thickness min - max 1 - 2.5 mm
Height (H) 1.2mm
Length (L) 160mm
Length (L2) 13.5mm
Min.Tensile Strength 135N
Strap Width max. (G) 3.5mm
Strap Width max. (G) (imperial) 0.14"
Width (W) 3.5mm
Width (W2) 19.0mm
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Foot Part Polyacetal (POM)
Hazardous goods No
Material Polyamide 6.6, heat stabilised (PA66HS), Polyacetal (POM)
Operating Temperature - °C -40 °C to +90 °C, (+110 °C, 500 h)
Specifications
EAN / GTIN 4031026254296
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.4m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.018
Packaging 1 - Weight (kg) 1.40477kg
Packaging 1 - Width (m) 0.3m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 5000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 14.8677kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 60000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 199.44kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
Weight 4kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
UNSPSC Key 39121702
