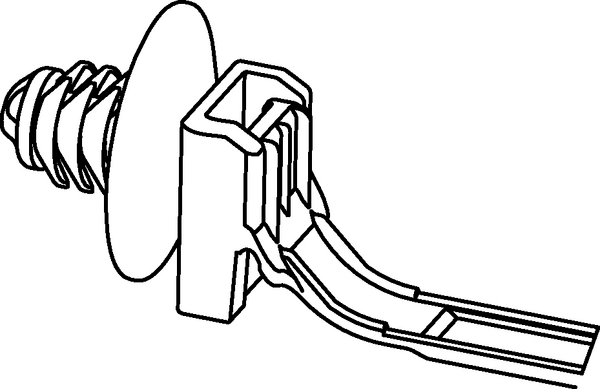

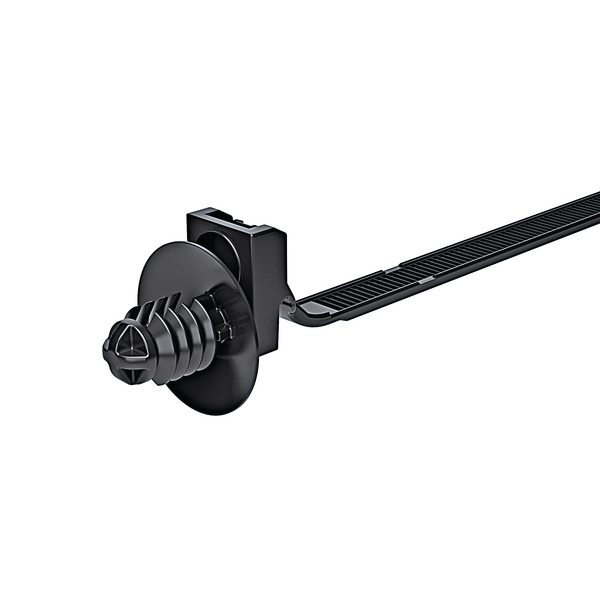

1-Piece Fixing Ties with Fir Tree, with Disc OS160FT6HEX

1-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes, Article number: 157-00081

Features

  • Cable tie head always situated in defined position
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust, dirt and water
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes

Certifications & Approvals

Application

Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear and white goods manufacturing.

1-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes is suitable for following markets and industries

Application Tool MK6, MK9P, MK21, EVO9, EVO9HT
Cable ∅ max 1.778mm
Colour Black (BK)
Fixation Method Fir Tree
GLOBAL PART NAME OS160FT6HEX-PA66HS-BK
Identification Plate Position none
Pack Cont. 500pcs.
Package Quantity per Bag
Product Family 1-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes
Product Group 1-Piece Fixing Ties with Fir Tree, with Disc
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type OS160-FT6-HEX-HSB
Bundle ∅ max. 30.0mm
Bundle ∅ min. 1.6mm
Disc ∅ 16.0mm
for Hole ∅ (FH) 6.5 mm
for Panel Thickness min - max 0.7 - 5 mm
Height (H) 1.52mm
Length (L) 170.0mm
Min.Tensile Strength 200N
Thickness (T) 1.4mm
Width (W) 5.3mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous goods No
Material Polyamide 6.6, heat stabilised (PA66HS)
Operating Temperature - °C -40 °C to +105 °C
Specifications
EAN / GTIN 4031026327464
Packaging 3 - Height (m) 0.371m
Packaging 3 - Length (m) 0.414m
Packaging 3 - Qty 3000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0488
Packaging 3 - Weight (kg) 5.42kg
Packaging 3 - Width (m) 0.318m
Packaging 4 - Height (m) 1.258m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 54000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.208
Packaging 4 - Weight (kg) 118.56kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
ETIM 5.0 EC000046
ETIM 6.0 EC000046
UNSPSC Key 39121703
