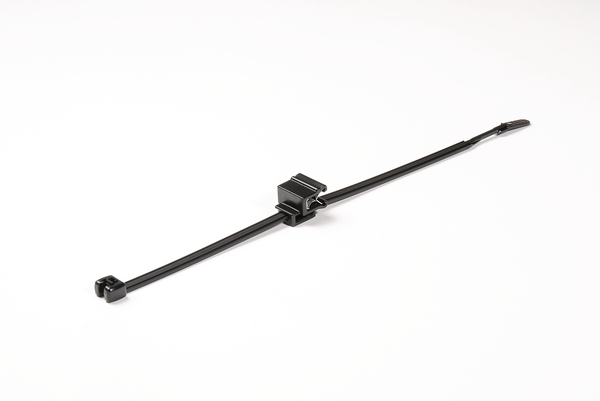

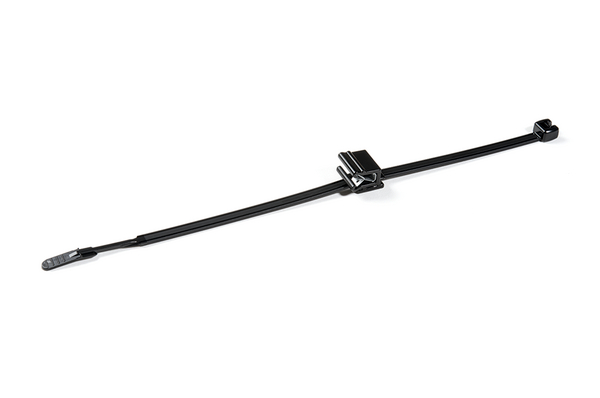

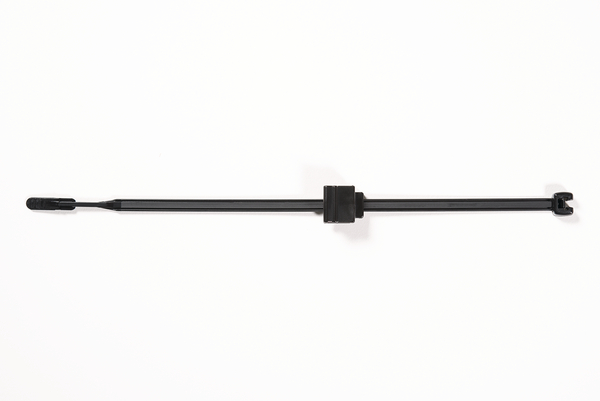

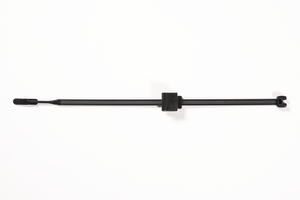

2-Piece Fixing Ties for Edges, 1.0 - 3.0 mm, Side Fixing Q50REC5A

EdgeClip-Family, Article number: 156-01087


  • Pre-assembled 2-piece fixing tie with EdgeClip and Q-tie
  • A perfect complement within our Q-Series range
  • Unique and innovative cable tie with open-head design
  • Time saving solution due to quick and simple installation
  • Q-tie saves more than 25% of usual working time
  • Cable tie head can be moved after bundling
  • For edges of 1 – 3 mm

Certifications & Approvals


These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel buidling and electrical industry.

EdgeClip-Family is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
Colour Black (BK)

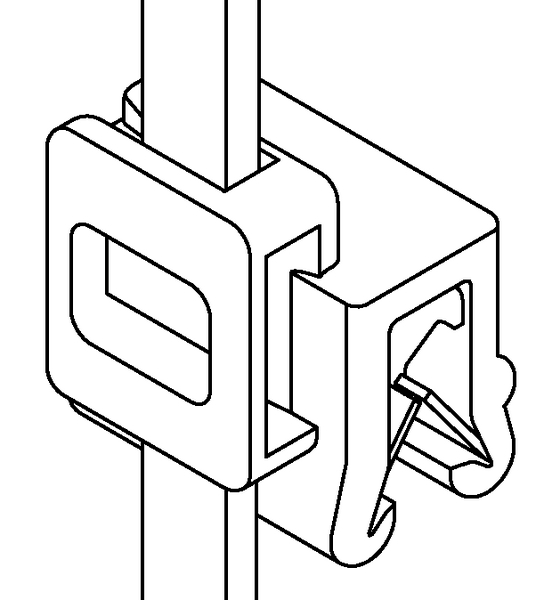

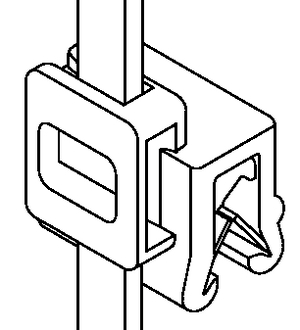

Description Available with either 'inside' or 'outside' serrated ties these two piece assemblies simply push onto an edge with thicknesses from 1.0 to 3.0mm. The high 'pull off' forces are due to the integrated metal clamp. Different Edge Clip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 degrees to the edge. The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary. Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the Edge Clip family provides an excellent fastening solution.
Description Short (BMEcat) (max. 150 characters) 2-Piece Fixing Tie 200x4.6 for Edges 1-3 mm UV-black
Fixation Method EdgeClip, sideway, assembled, 2 piece
Identification Plate Position none

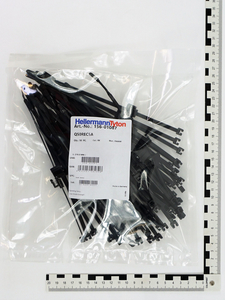

Pack Cont. 50pcs.
Package Quantity per Bag
Product Family EdgeClip-Family
Product Group 2-Piece Fixing Ties for Edges, 1.0 - 3.0 mm, Side Fixing
Releasable Closure (Yes/No) No
Type Q50REC5A-W-BK-L1
Variant Inside Serrated
Bundle ∅ max. 45.0mm
Bundle ∅ min. 6.0mm
for Panel Thickness min - max 1 - 3 mm
Height (H) 1.5mm
Length (L) 210.0mm
Min.Tensile Strength 220N
Thickness (T) 1.5mm
Width (W) 4.7mm
Cable Tie Polyamide 6.6, UV-resistant (PA66W)
ELV compliant Dir. Art. 4 (2) YES
Foot Part Polyamide 6.6, UV-resistant (PA66W)
Hazardous goods No
Material Polyamide 6.6, UV-resistant (PA66W)
Operating Temperature - °C -40 °C to +85 °C
EAN / GTIN 4031026462806
Packaging 1 - Height (m) 0.045m
Packaging 1 - Length (m) 0.25m
Packaging 1 - Qty 50
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00309
Packaging 1 - Weight (kg) 0.166kg
Packaging 1 - Width (m) 0.275m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 1500
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 5.63kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.235m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 30000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.186
Packaging 4 - Weight (kg) 133.6kg
Packaging 4 - Width (m) 0.8m
Weight 0.166kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
